Rhodan Marine GEN 5 Model – 24V Newest Model

Transform your fishing adventures with the GEN 5 – Rhodan’s Newest Model – 24V, where performance meets perfection.

This next-generation trolling motor boasts advanced GPS anchoring, ultra-quiet operation, and enhanced thrust, making it the ultimate tool for serious fishing adventures.

With cutting-edge technology and unmatched reliability, the GEN 5 24V is built to take your boat control to the next level.

Manufactured in the U.S.

Free Shipping

Questions?  Call or Email Dave - "Tel: 864.367.6161"  dave@lightasairboats.com

From the thousands of hours of engineering design to determine the best component for the job, to the use of all stainless hardware and fully encapsulated electronics. Rhodan Marine has developed a tool to improve your fishing experience for the years to come!

Rhodan Marine Systems has incorporated a remarkable micro-computer module that utilizes a high-definition GPS receiver to monitor and control the trolling motor. Their quiet and powerful thruster delivers 120 pounds of thrust by industry standards. Each system includes a wireless fob, a quick-release mount, a RAM mount (5″), and an efficient 3-bladed propeller!

The Rhodan HD GPS Anchor ® is a virtual anchor, an auto pilot, and a wireless trolling motor all in one remarkable package!

Discover the future of fishing with the GenV GPS-Guided Trolling Motor from Rhodan Marine—a revolutionary blend of cutting-edge technology, sleek design, and unmatched power. Engineered for precision and durability, the GenV redefines angling excellence with superior control and innovative features tailored to every angler’s needs.

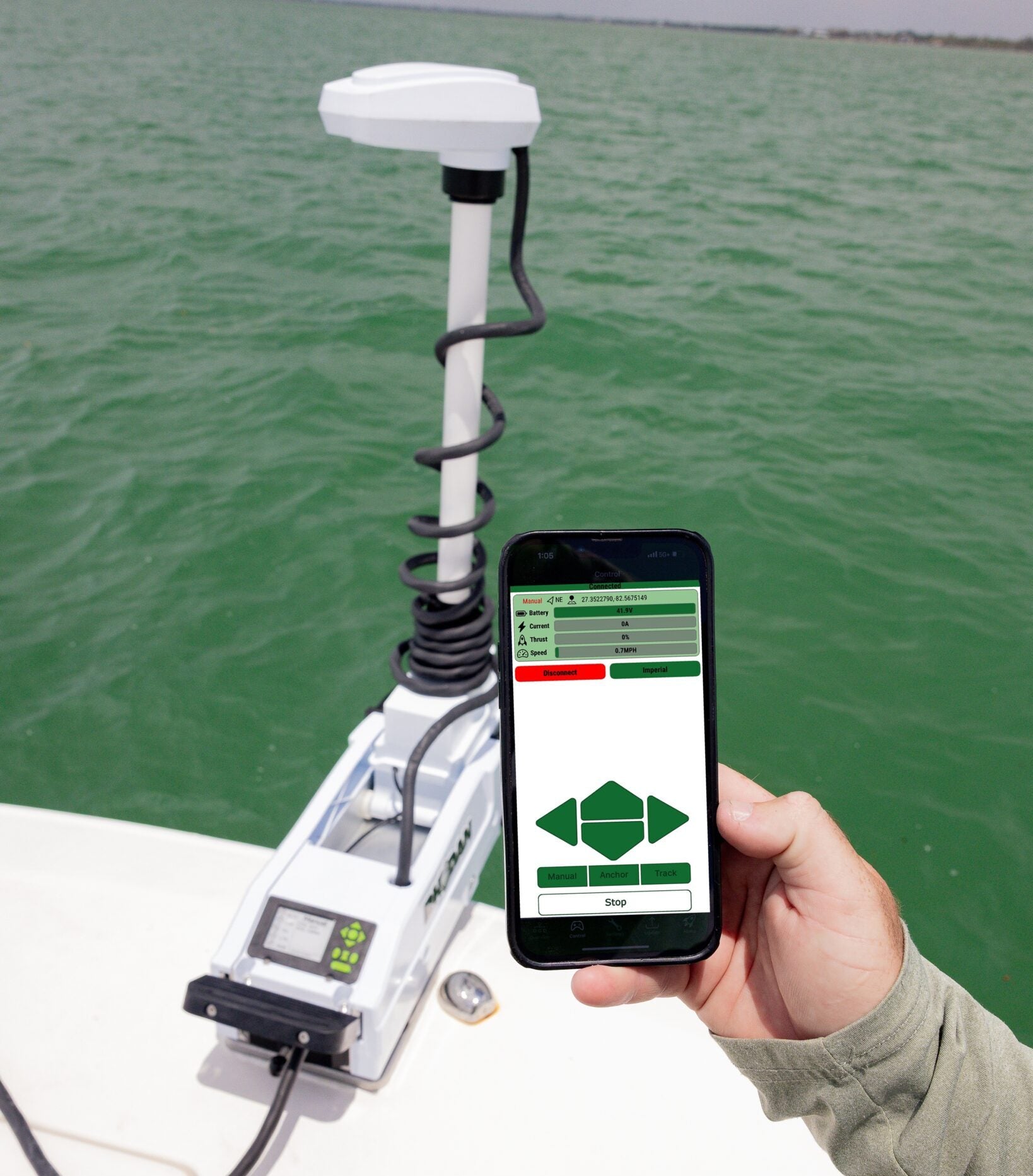

The Gen5 GPS-Guided Trolling Motor combines power, precision, and innovation to elevate your fishing experience. Compatible with iOS and Android, it offers unmatched ease and connectivity, making it the angler’s dream.

The 24V model is Recommended for boats up to 6,000 lbs.

Features

☑ Intuitive Control: Navigate effortlessly with an EPD display, push-button controls, and a Bluetooth fob. The phone app offers motor control, system settings, and diagnostics, while the touchpad ACM screen provides motor data, low power mode, and wired mode for precise anchoring in rough waters.
☑ Seamless Integration: Complete MFD Gateway integration with NMEA compatibility for Raymarine, Simrad, and Lowrance connects to your multifunction display.
☑ Innovative Bracket: The patent-pending Integrated SRQ Bracket (Sliding, Rotating, Quick Release) with a built-in lock ensures easy deployment and secure storage.
☑ Smart Electronics: Enjoy improved Bluetooth range, enhanced error handling, diagnostics, and overload protection for reliable performance.

Specifications

☑ Powerful Options: Choose from 24V (80 lbs thrust), 36V (120 lbs thrust), or 48V (120 lbs thrust, max draw 45A) lower units for whisper-quiet operation and enhanced efficiency.
☑ Robust Construction: Features a 316 stainless steel steering system with a patented clutch mechanism, sealed steering box, Teflon bushings, and an upgraded powder coat finish for lasting durability.
☑ Sleek & Functional: Compact cover with improved UV resistance, enhanced drainage, and a data cable wrapped around the shaft for a clutter-free deck.

☑ Thrust Rating: 80 Pounds
☑ Operating Voltage: 24VDC
☑ Recommended Circuit Breaker Rating: 50A
☑ Propeller: 3-Blade Weedless
☑ Shaft Length: 72, 60, 54, 48 (Inches)
☑ Memories Exclusively for Fishing Holes: 4
☑ Memories for Routes and/or Fishing Holes: 8
☑ Total Memory Locations: 12
☑ Maximum Recorded Route Length: Over 1000 Miles!

How To Get The Right Shaft Length?

Measure from the Tip of the Bow to the Waterline

Modes of Operation

HD GPS Anchor ® Trolling Motor – 24V Components

Included

☑ Wireless Fob with lanyard
☑ Quick Release bracket
☑ RAM mount (5″)
☑ Prop kit
☑ Line-X® finish

**SRQ Brackets (Sliding, Rotating, Quick Release) are an additional accessory and do not come with the purchase of a Gen 5 motor.

Optional Extras

☑ Rhodan Marine NOCO Genius GEN Series Chargers

The GEN series is an On-Board Battery Charger for charging and maintaining a 12-volt Marine, Starter or Deep-Cycle battery group.

☑ Rhodan Marine Circuit Breaker 50A
Marine grade 50 Amp circuit breaker for trolling motors 12V-36V.

☑ Rhodan Gateway Module

The gateway will allow Rhodan trolling motors with serial numbers R587363 or higher to integrate with select Simrad and Lowrance units. This module will allow you to manually control the Rhodan from the MFD!

You may choose a saved waypoint on the MFD, and the Rhodan will move to the position and anchor the boat, as well as save numerous routes for your Rhodan to follow. Additionally, the Gateway will assist with communication between the Rhodan and the remote control by adding an additional antenna.

☑ Rhodan Marine Battery Tender Trolling Motor Plug – 100 Amp
This quick disconnect plug with stainless connections is designed for the harshest environments. It is the only trolling motor plug backed by Rhodan.

☑ Dakota Lithium 36v 60ah Deep Cycle Lifepo4 Single Battery
Built Dakota tough with exceptional energy density, this single 36V (volt) 60Ah (amp hour) battery will power your passions from morning to night.

Includes: 36V 8A LIFEPO4 Charger

☑ Dakota Lithium 36v 110ah Deep Cycle Lifepo4 Single Battery
Built Dakota tough with exceptional energy density, this single 36V (volt) 60Ah (amp hour) battery will power your passions from morning to night.

Includes: 36V 8A LIFEPO4 Charger

Owner's Manual
