Patriot Docks Straight Roll-In Jack Docks

Guaranteed Lowest Price on Patriot Roll-In Jack Docks

The best durable dock system for fast seasonal setup and removal.

🚛  Ships Direct to Your Property

💥 We Match or Beat Any Authorized Dealer (Wholesale Marine & Bass Pro)

📦 Complete Dock Kits — Everything Included

Talk to a Dock Expert (real human, fast answers):

Call Dave "864.367.6161"  dave@lightasairboats.com

💥 We match or beat any authorized Patriot Dock dealer
(including Wholesale Marine & Bass Pro)

Patriot Docks' Roll-in Jack Docks are revolutionizing the way we dock on the water. These are the easiest roll-in docks you’ll ever own, designed for simplicity, convenience, and ease of use. The key feature of the Roll-in Jack Dock is the Roll-in Jacks — adjustable supports with wheels that allow you to effortlessly roll the dock in and out of the water.

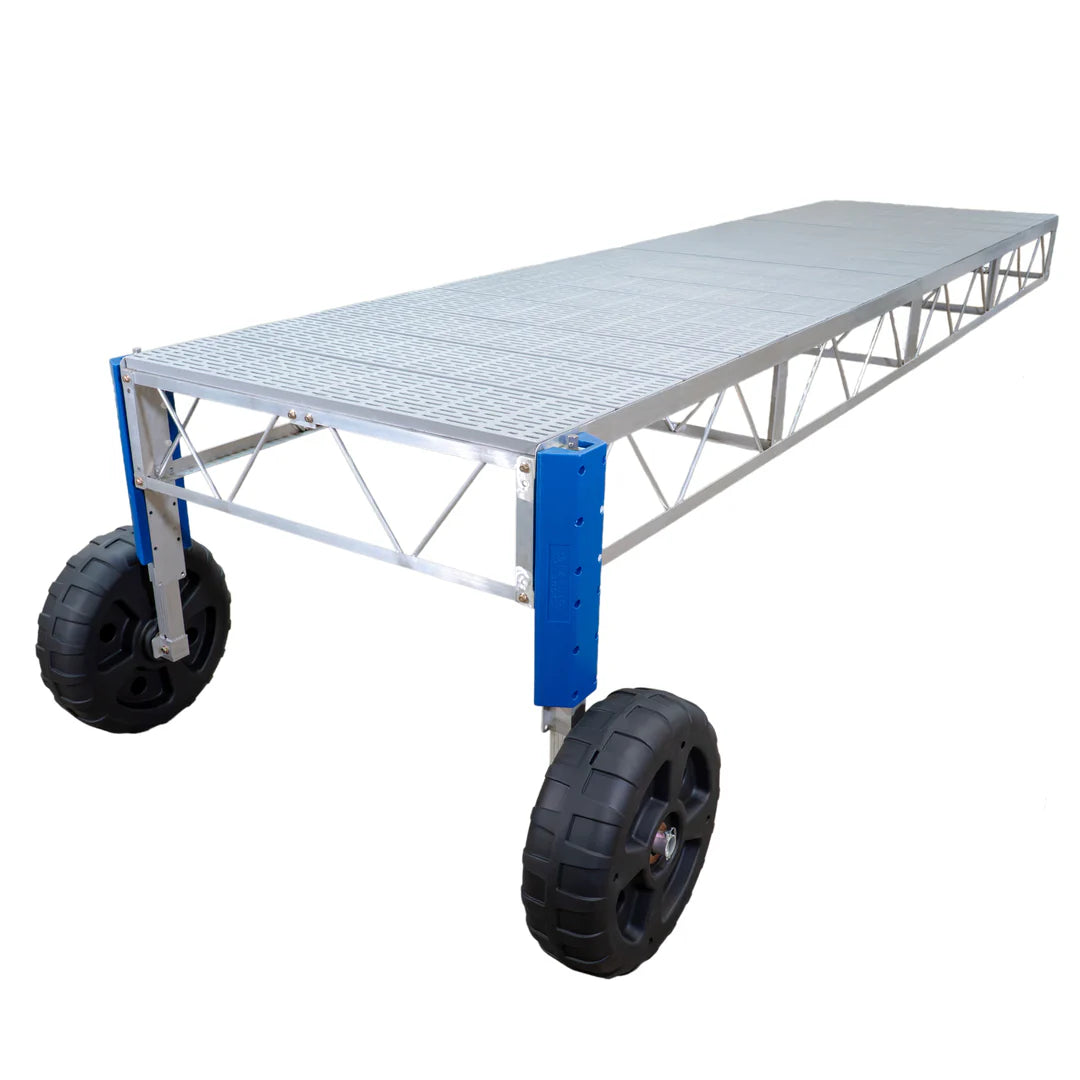

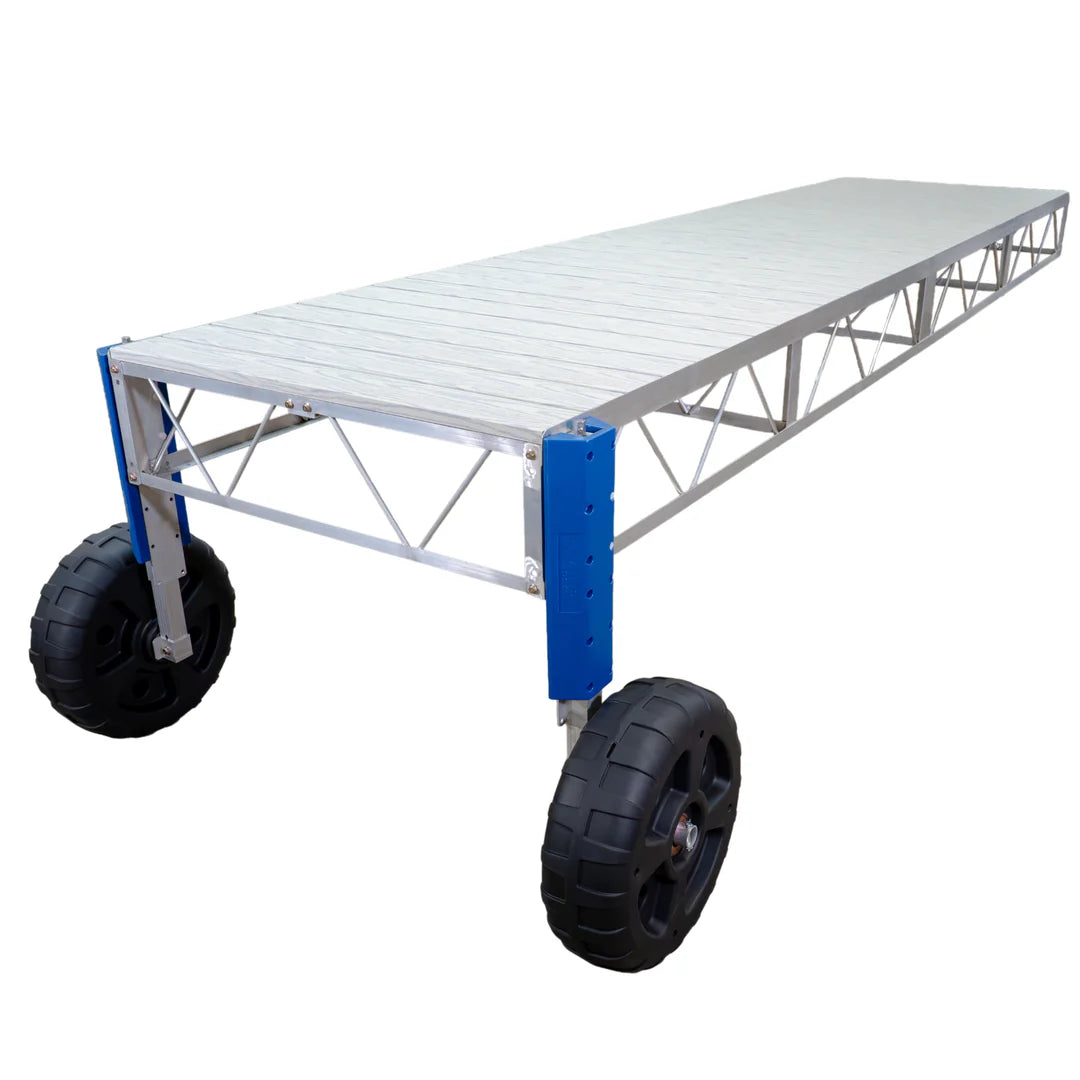

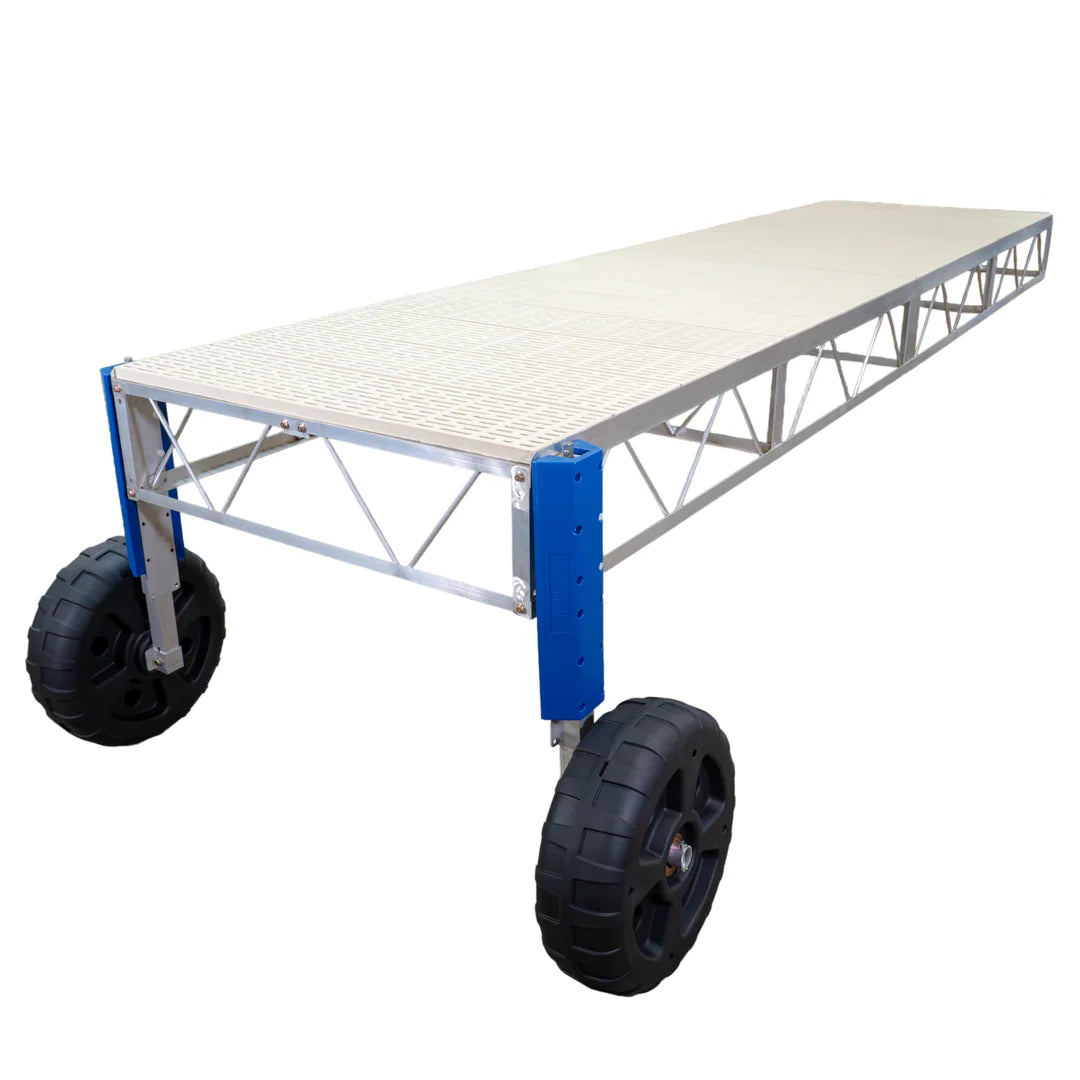

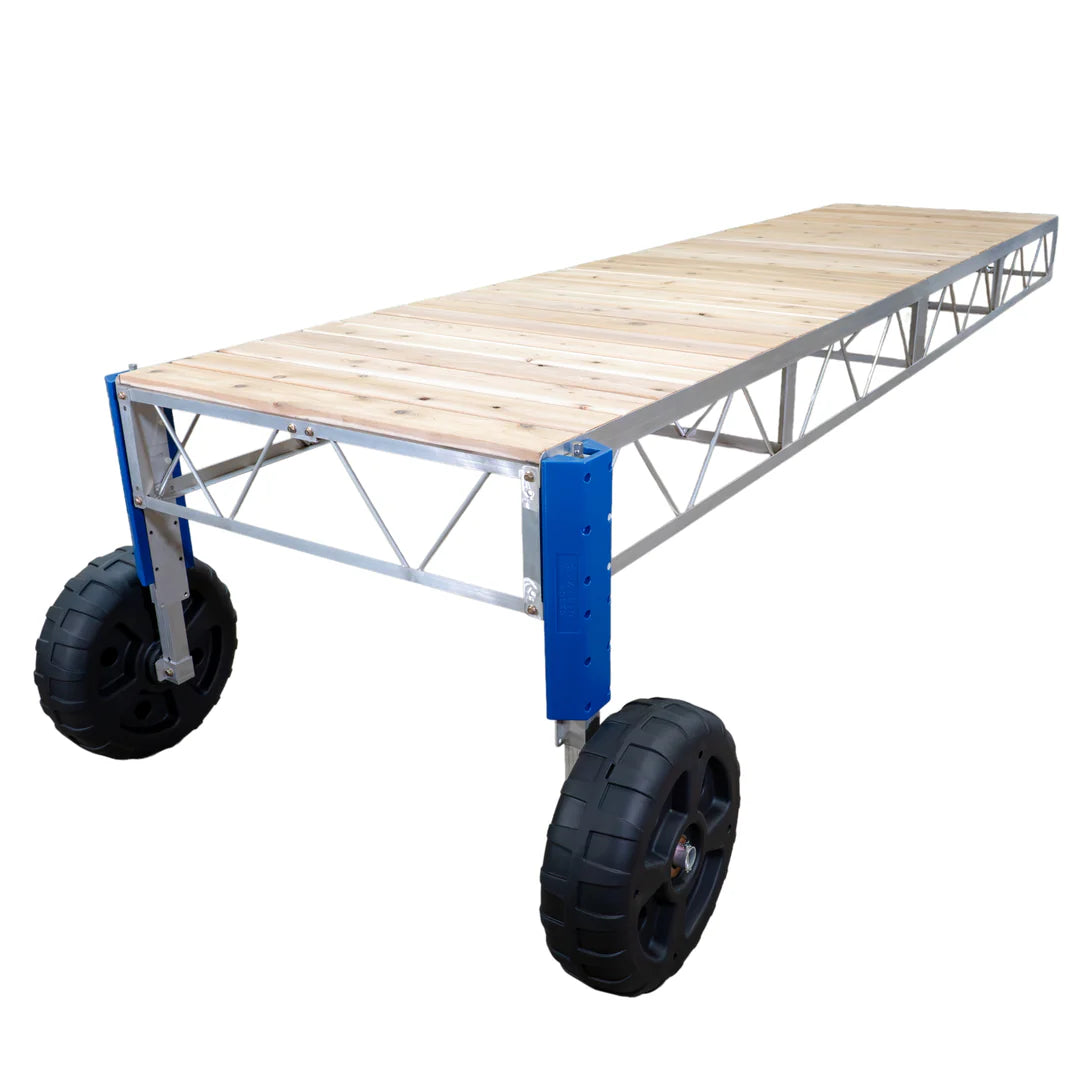

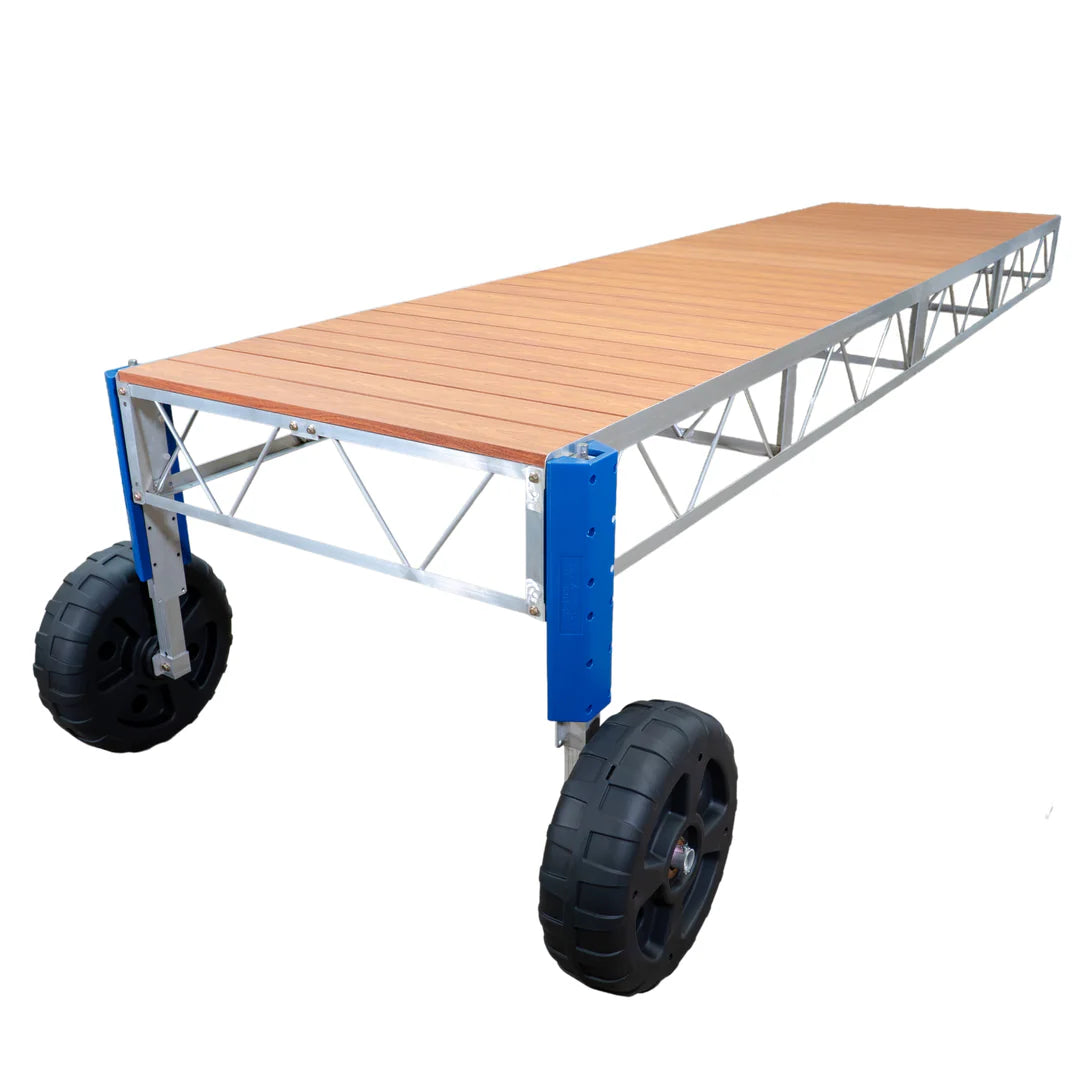

Available in different decking options.

Perfect for aging lake enthusiasts or anyone who no longer wants to struggle with heavy, stationary docks, Roll-in Jack Docks make it simple to move and adjust your dock without getting in the water, even during fluctuating water levels. You can adjust the height with just a cordless drill while standing on the dock, making it a user-friendly solution for anyone looking to save time and energy.

Features

Patriot Docks has been perfecting dock craftsmanship for over 20 years. As a multi-generational family business, they know the value of time, so one of their greatest values is to make purchasing and owning a dock easy enough to save time for your loved ones.

☑ Easy Height Adjustment
Screw jack legs adjust effortlessly while standing on the dock—just use a cordless drill. Fine-tune the height anytime, without entering the water.

☑ Easy to Install
Patriot Docks Stationary docks are easier and quicker to install. They come in modular designs that can be assembled and disassembled with relative ease. This feature reduces construction time and allows for faster deployment or removal of the dock as required.

 ☑ Very Durable
Patriot Docks Stationary docks are constructed with durable materials and designed to withstand the challenges of marine environments. They are resistant to corrosion, UV radiation, and water damage, ensuring longevity and reduced maintenance requirements.

☑ Adaptability
Patriot Docks Stationary docks can adapt to various waterfront configurations and environments. They can be used in shallow or deep water, on rivers, lakes, and even in areas with uneven or rocky bottoms. This adaptability makes them suitable for a wide range of waterfront properties.

☑ Roll-in Jacks: The mounted wheels on adjustable supports make it easy to roll the dock in and out of the water — no waders required.
☑ Height Adjustment: With just a cordless drill, you can adjust the height of your dock while standing on it, making seasonal adjustments a breeze.
☑ Lightweight Aluminum Truss Frames: These frames are engineered for maximum mobility and strength, offering a durable yet lightweight structure that is easy to move and adjust.
☑ Modular Design: Easily extend your dock by adding additional sections to lengthen it or reconfigure it to meet your needs.
☑ Simple Installation: Drop your decking panels into place after the frame is in position, then adjust the height to your desired level. No need for complex setup — it’s that simple!
☑ Effortless Mobility: Roll in your dock with ease, even if you’re on your own. No need to wrestle with heavy docks.
☑ Adjustability: With just a few twists of a drill, easily adapt your dock to changing water levels.
☑ Versatility: Patriot Dock frames are designed for flexibility. Lengthen, shorten, or reconfigure as needed — it’s all possible with a Roll-in Jack Dock.
☑ Durability: Built with aluminum truss frames for lasting strength without the weight. Perfect for any lakeside environment.
☑ JACK SUPPORTS:
Adjusts height with cordless drill from the top, 1000-lb capacity;
18-inch travel; Adapts to the adjustable leg or fixed axle stub;
Aluminum casing and pre-greased stainless steel gear
☑ DOCK FRAMES: Lightweight (45lbs); Strong truss (12"
tall, 4" taller than industry average); No-rust aluminum; Modular
(bolt-together assembly); Nests decking (frames in drop-in decking
panels)
☑ DECKING: 4x4 Panels; Premium material options (Cedar, Poly, Aluminum); Drops into frame
☑ WHEELS: Heavy duty polypropylene; 24" All-terrain;
Sinks and fills with water for stability; Wide 8-inch tread; Rotates
under or outside of dock; Moveable to middle or end of dock
☑ DETAILS: Ships to most commercial and residential
addresses; Complete kit including hardware; Comes with an instruction
video and step-by-step PDF; Includes 2 FREE bumpers

 Types of Rolling Jack Docks

Straight Rolling Jack Dock                                 Patio Rolling Jack Dock

Double Patio Rolling Jack Dock                        T-Shaped Rolling Jack Dock

Specifications

☑ FRAME:
Weight per frame: 45 pounds
Frame Height: 12 inches
Frame Weight Capacity: 45 PSF when constructed as specified
Frame Material: Aluminum (Marine Grade 6061-T6)
Frame Style: Truss
Frame Build: Bolts Together
Support Span: Every 16 feet
☑ JACK:
Adjustment Range per Jack: 18 inches
Jack Material: Aluminum with Stainless Steel Worm Gear
Jack Adjustment Style: Rotate 3/4 inch Nut with Cordless Drill or Socket Wrench
Jack Weight Capacity: 1000 pounds each
☑ DECKING:
Decking Panel Measurements: 48x48x1 inches
Cedar Panel Weight: 37 pounds
Cedar Details: Unfinished Premium Western Red Cedar 48x6x1 inch Boards with Stringers
Poly Panel Weight: 30 pounds
Poly Details: Four 48x12x1 inch Polypropylene Panels with Aluminum Reinforcements and Stringers
Aluminum Panel Weight: 25 pounds
Aluminum Details: Premium 48x6x1 inch Extruded Aluminum Boards with Welded Stringers, Powder Coating, and Wood Grain Finish
☑ WHEEL:
Wheel Material: High-Density Polypropylene
Wheel Diameter: 24 inches
☑ HARDWARE:
Hardware material: Grade 8 Zinc-plated
Hardware size: 3/8" or 1/2"

Stationary Dock and Rolling Dock Comparison

 Available Colors

Whether you're building a long-lasting pier, a marina layout, or a backyard getaway, Stationary Jack Docks are the easiest, most flexible aluminum dock systems on the market. Choose from multiple shapes, sizes, and decking materials to create your perfect lakeside setup.

Package Includes

Patriot Dock Packages are standard dock configurations that work for most residential dock applications. These complete kits have all the parts and hardware you need to build your dock. Note specifications on shoreline and water depth and floating dock anchoring. Num

☑ 4X8' Frames
☑ End Rail
☑ Std. Jack Supports
☑ Tall Jack Supports - Available for longer length
☑ Std. Drop Legs - Available for longer length
☑ Jack Axles
☑ Plastic Dock Wheel
☑ Bumpers
☑ 4X4' Panels

Optional Extras

☑ Patriot Docks Shore Ramp

☑  Patriot Docks 4 Step Dock Ladder

☑  Patriot Docks Marine Stairs

How to Use a Roll-in Jack Dock:
1. Roll it in: Start by lifting the shore-side of the dock frame and guiding the lake-end in, just like you would a wheelbarrow.
2. Install decking: After positioning the frame, drop in your decking panels.
3. Adjust the height: Use your cordless drill to raise or lower the jack supports, ensuring your dock is level and positioned at the correct height.
4. Seasonal Adjustments: As water levels change, simply adjust the height with the drill — no getting wet, no heavy lifting.
