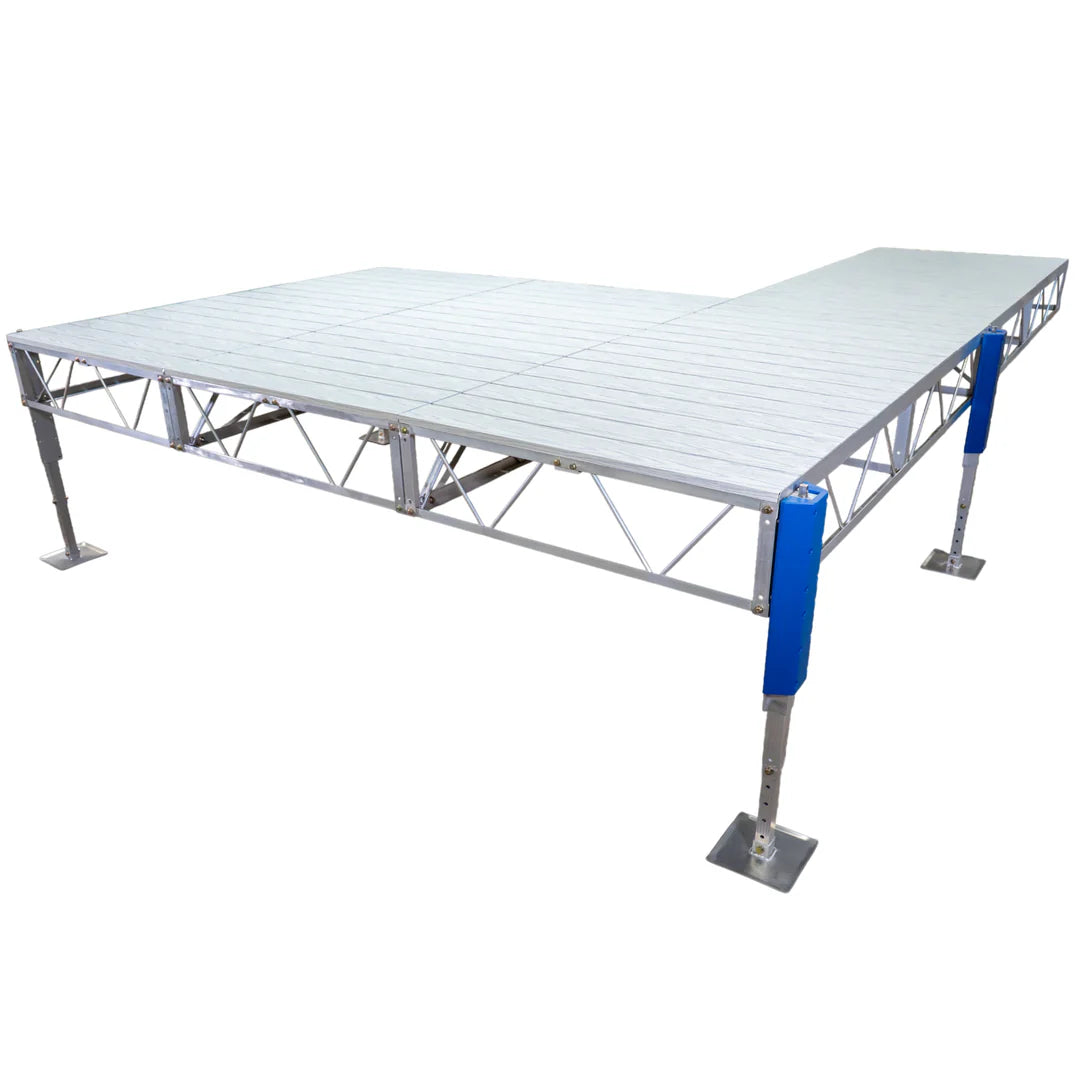

Patriot Docks Double Patio Stationary Jack Dock

Guaranteed Lowest Price on Patriot Double Patio Docks

The easiest, most durable dock system for fast seasonal setup and removal.

🚛  Ships Direct to Your Property

💥 We Match or Beat Any Authorized Dealer (Wholesale Marine & Bass Pro)

📦 Complete Dock Kits — Everything Included

Talk to a Dock Expert (real human, fast answers):

Call Dave "864.367.6161"  dave@lightasairboats.com

💥 We match or beat any authorized Patriot Dock dealer
(including Wholesale Marine & Bass Pro)

Patriot Docks' Stationary Docks are ideal boat docks being made of a no-rust aluminum frame, drop in decking panels, and fully adjustable galvanized dock supports. Choose Patriot’s Stationary Dock system for a lightweight, hassle-free dock that saves you a ton of time and money, so you can enjoy the lake for a change!

Available in different decking options.

Stationary Jack Docks from Patriot are designed for durability, stability, and ease of use—especially in areas where traditional rolling docks just won’t work. These aluminum docks are perfect for permanent or semi-permanent installations on mucky lake bottoms, boggy areas, marinas, or shorelines where rolling isn’t possible.

What sets these docks apart? Each dock is equipped with adjustable jack legs that let you level the dock from above using a cordless drill—no need to wade into the water! Whether you're adjusting for seasonal water level changes or preparing for winter removal, Stationary Jack Docks make it easy.

Features

Patriot Docks has been perfecting dock craftsmanship for over 20 years. As a multi-generational family business, they know the value of time, so one of their greatest values is to make purchasing and owning a dock easy enough to save time for your loved ones.

☑ Easy Height Adjustment
Screw jack legs adjust effortlessly while standing on the dock—just use a cordless drill. Fine-tune the height anytime, without entering the water.

☑ Easy to Install
Patriot Docks Stationary docks are easier and quicker to install. They come in modular designs that can be assembled and disassembled with relative ease. This feature reduces construction time and allows for faster deployment or removal of the dock as required.

 ☑ Very Durable
Patriot Docks Stationary docks are constructed with durable materials and designed to withstand the challenges of marine environments. They are resistant to corrosion, UV radiation, and water damage, ensuring longevity and reduced maintenance requirements.

☑ Adaptability
Patriot Docks Stationary docks can adapt to various waterfront configurations and environments. They can be used in shallow or deep water, on rivers, lakes, and even in areas with uneven or rocky bottoms. This adaptability makes them suitable for a wide range of waterfront properties.

☑ Built for Performance
Inside every jack leg is a stainless steel gear encased in an aluminum body. This internal mechanism ensures smooth, reliable height adjustment season after season.
☑ Need Wheels Instead?
If you’re looking for the same adjustability with easier transport, check out our Rolling Jack Dock for an all-in-one mobile solution.
☑ Easy Height Adjustment
Screw jack legs adjust effortlessly while standing on the dock—just use a cordless drill. Fine-tune the height anytime, without entering the water.
☑ Strong Yet Lightweight Aluminum Frames
Made from marine-grade aluminum, the truss-style Patriot frames are both durable and light enough to lift by hand.
☑ Modular and Expandable
Assemble frames using standard bolts and nuts. Create custom layouts including L-shapes, boat slips, and dock fingers. Perfect for any lakeside configuration.
☑ Decking That Lifts Out
The removable decking panels allow for easy seasonal removal or adjustments. Lightweight panels make lifting simple.
☑ Ideal for Difficult Terrain
When your shoreline won’t support a rolling dock, Stationary Jack Docks are the answer. Easily detach the frames to move them over seawalls, rocks, or tight access areas.
☑ JACK SUPPORTS:
Adjusts height with cordless drill from the top, 1000-lb capacity;
18-inch travel; Adapts to adjustable leg; Aluminum casing and
pre-greased stainless steel gear.
☑ DOCK FRAMES: Lightweight (45lbs); Strong truss (12"
tall, 4" taller than industry average); No-rust aluminum; Modular
(bolt-together assembly); Nests decking (frames in drop-in decking
panels).

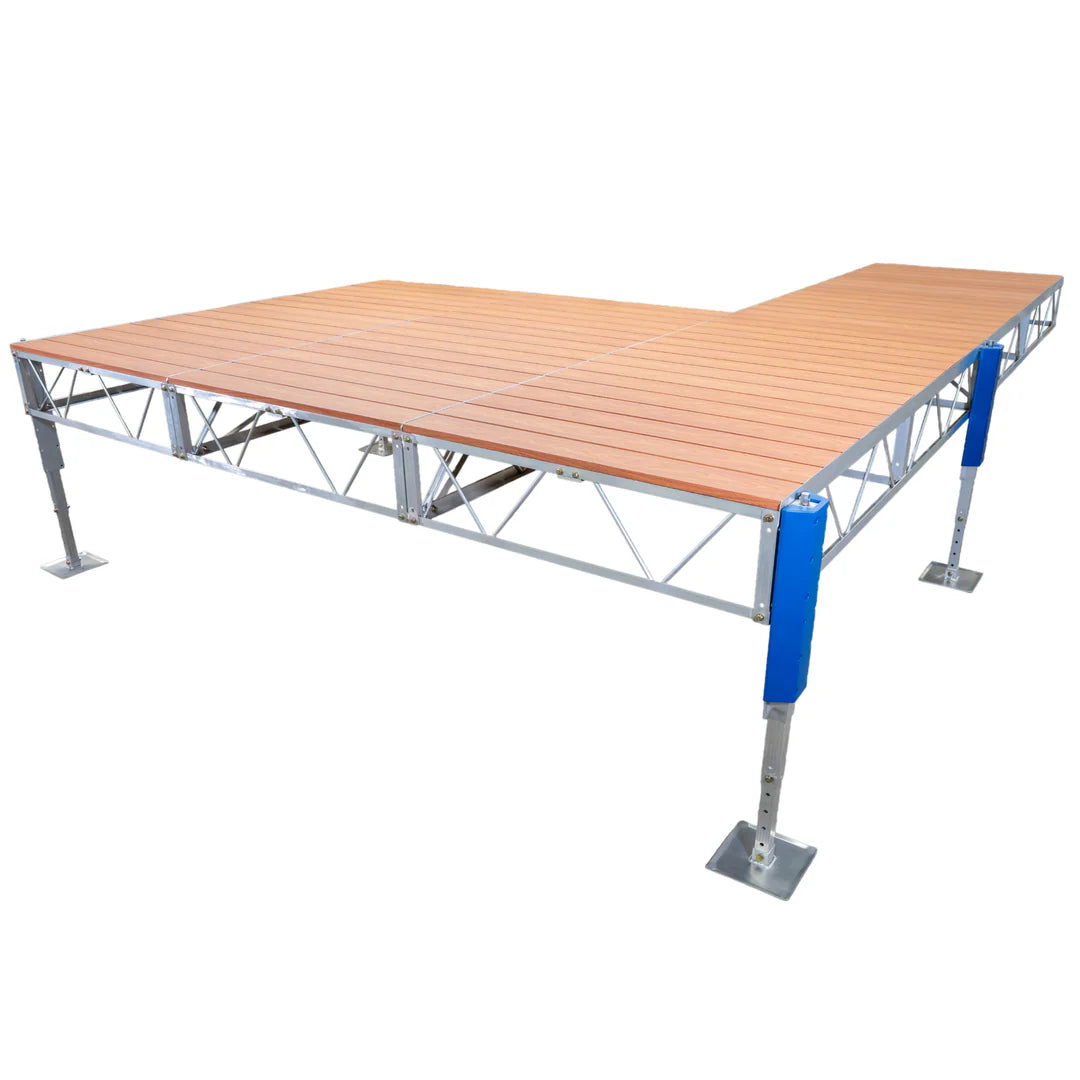

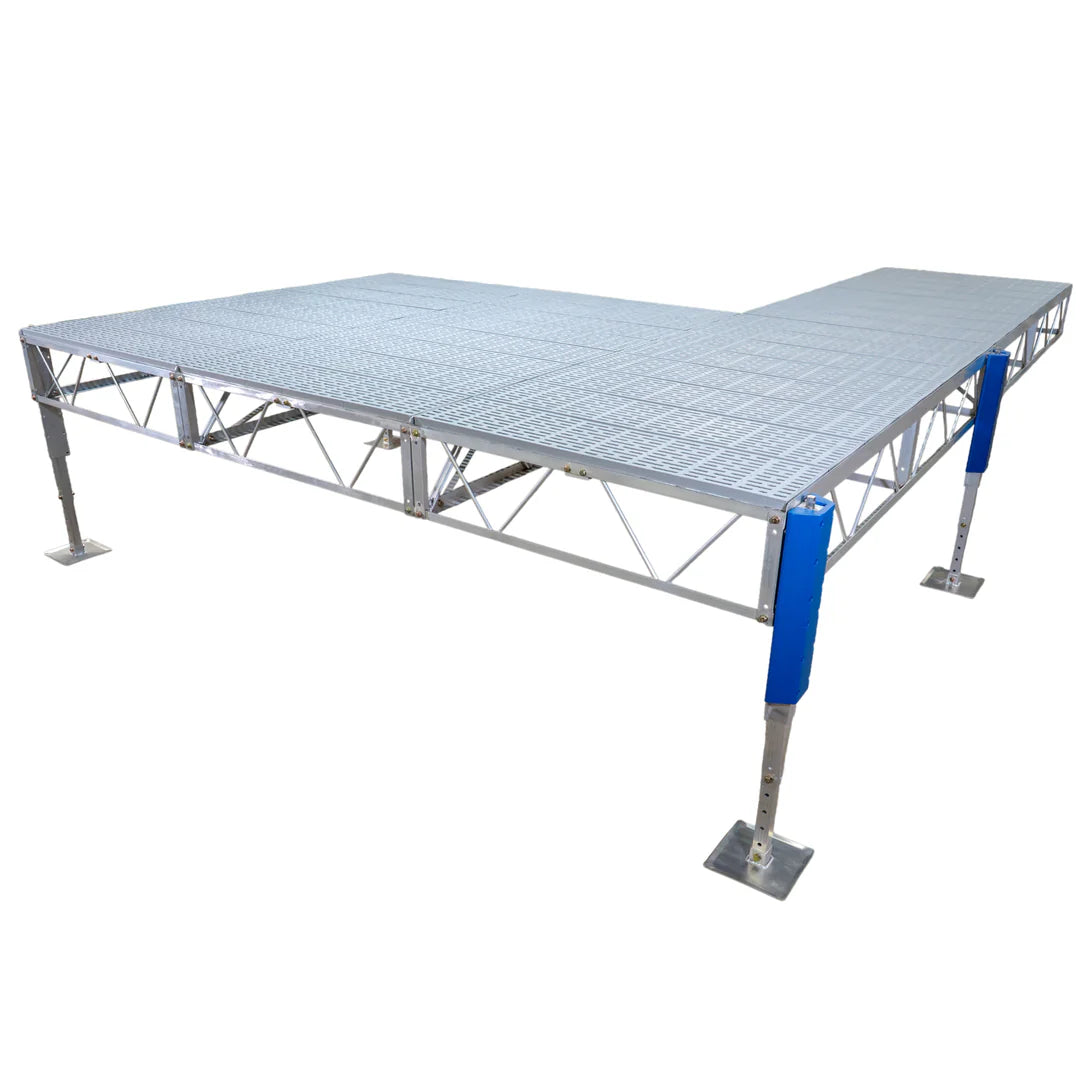

☑ DECKING: 4x4 Panels; Premium material options (Cedar, Poly, Aluminum); Drops into the frame.
☑ DETAILS: Ships to most commercial and residential
addresses; Complete kit including hardware; Comes with an instruction
video and step-by-step PDF; Includes 2 FREE bumpers.

 Types of Stationary Jack Docks

Straight Stationary Jack Dock                                 Patio Stationary Jack Dock

Double Patio Stationary Jack Dock                        T-Shaped Stationary Jack Dock

Specifications

☑ FRAME:
Weight per frame: 45 pounds
Frame Height: 12 inches
Frame Weight Capacity: 45 PSF when constructed as specified
Frame Material: Aluminum (Marine Grade 6061-T6)
Frame Style: Truss
Frame Build: Bolts Together
Support Span: Every 16 feet
☑ JACK:
Adjustment Range per Jack: 18 inches
Jack Material: Aluminum with Stainless Steel Worm Gear
Jack Adjustment Style: Rotate 3/4 inch Nut with Cordless Drill or Socket Wrench
Jack Weight Capacity: 1000 pounds each
☑ DECKING:
Decking Panel Measurements: 48x48x1 inches
Cedar Panel Weight: 37 pounds

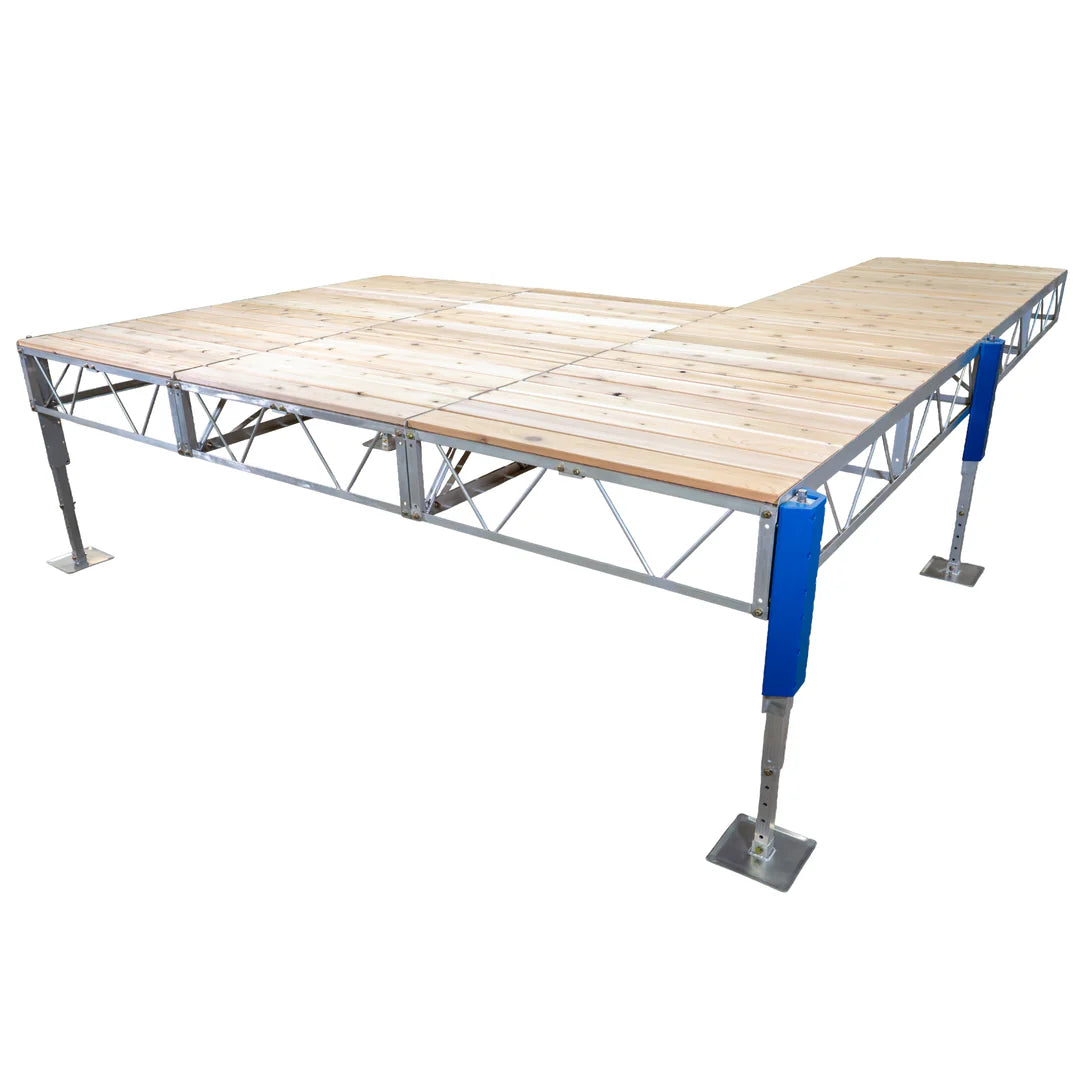

Cedar Details: Unfinished Premium Western Red Cedar 48x6x1 inch Boards with Stringers
Poly Panel Weight: 30 pounds

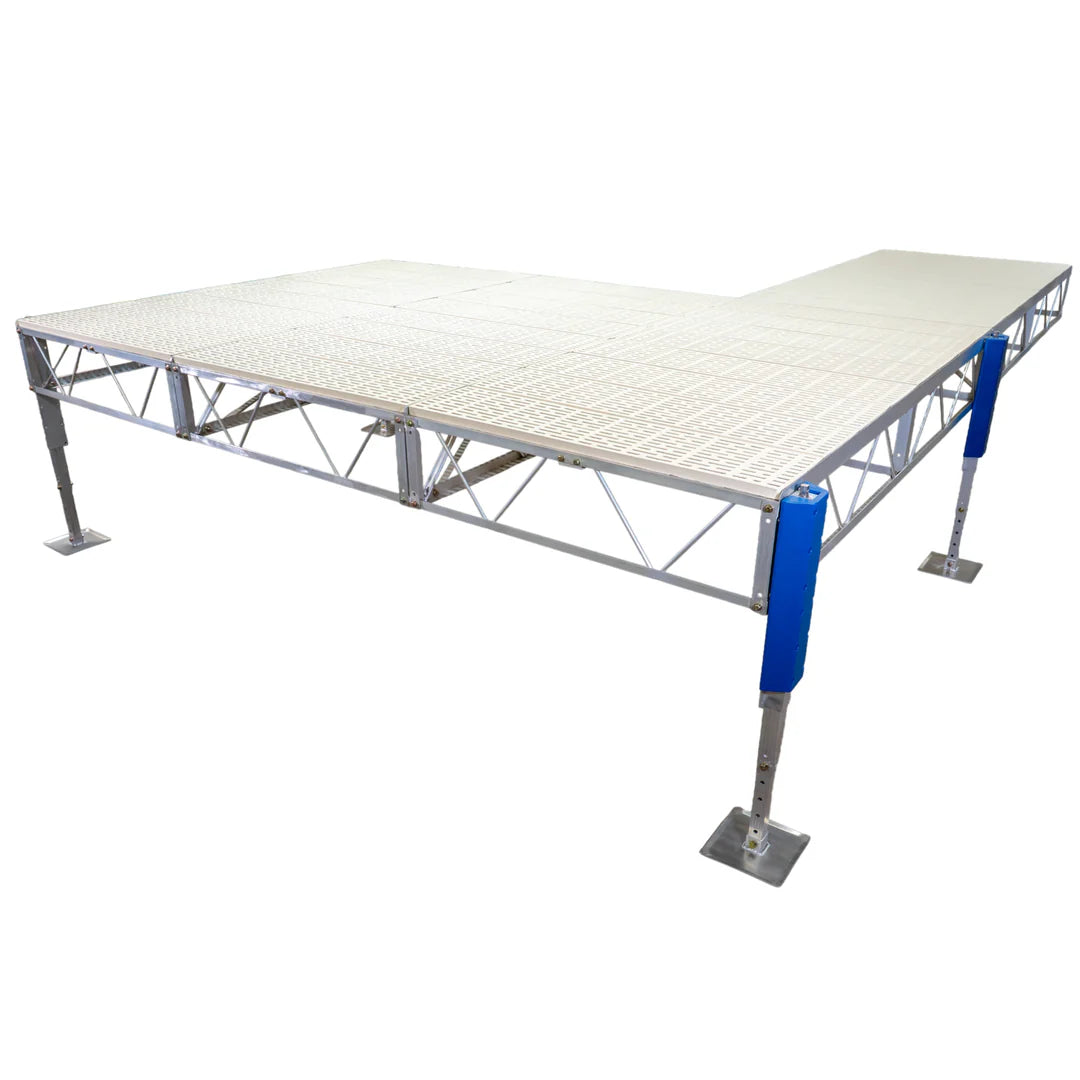

Poly Details: Four 48x12x1 inch Polypropylene Panels with Aluminum Reinforcements and Stringers
Aluminum Panel Weight: 25 pounds
Aluminum Details: Premium 48x6x1 inch Extruded Aluminum Boards with Welded Stringers, Powder Coating, and Wood Grain Finish
☑ HARDWARE:
Hardware material: Grade 8 Zinc-plated
Hardware size: 3/8" or 1/2"

Stationary Dock and Rolling Dock Comparison

 Available Colors

Whether you're building a long-lasting pier, a marina layout, or a backyard getaway, Stationary Jack Docks are the easiest, most flexible aluminum dock systems on the market. Choose from multiple shapes, sizes, and decking materials to create your perfect lakeside setup.

Package Includes

Patriot Dock Packages are standard dock configurations that work for most residential dock applications. These complete kits have all the parts and hardware you need to build your dock. Note specifications on shoreline and water depth and floating dock anchoring. Num

☑ 4X8' Frames
☑ End Rail
☑ Std. Jack Supports
☑ Tall Jack Supports - available for longer length
☑ Std. Drop Legs with Base
☑ Tall Drop Legs with Base - available for longer length
☑ Bumpers
☑ 4X4' Panels

Optional Extras

☑ Patriot Docks Shore Ramp

☑  Patriot Docks 4 Step Dock Ladder

☑  Patriot Docks Marine Stairs

Click here for the PDF file of Patriot Docks Assembly Instructions

Click here for Warranty Information and Form

Click here for the Frequently Asked Questions

Truss Frame Assembly

Low Profile Frame Assembly
