The Patriot Canal Floating Dock is the perfect dock kit for canals with seawalls and tidal water. The floating dock is engineered with a hinged ramp and high float capacity on a dock that runs parallel to the shore for narrow waterways like canals!
See Patriot Docks Here
Questions? Call Dave: "Tel: 864.367.6161" dave@lightasairboats.com
Canal Floating Docks are docks designed for canals, rivers, and tidal bodies of water. These compact floating systems are ideal for narrow waterways because the floating portion runs parallel to the shore.
Each Canal Floating Dock starts with a ramp, which makes for easy entry onto the dock. The floating dock includes a sleek low profile frame with 12″ dock floats for superior flotation and a decking surface close to the water.
Canal Floating Docks are premium docks with Side Stability Floats surrounding the floating dock to add stability, float capacity, and dock protection. Lastly, all Canal Floating Docks are topped with Patriot’s coolest premium deck surface, the thru-flow poly decking. Select your preferred floating dock length and decking surface.
The 8ft Canal Dock includes a 4x8ft Floating Platform with an 8ft Ramp, while the 16ft Canal Dock has a 4x16ft Floating Platform with an 8ft Ramp. The 24ft Canal Dock includes a 24ft Floating Platform with an 8ft Ramp. Drop-in decking makes installing the dock super simple. Add your own anchoring system (not included)!
INCLUDES
Length 8'
☑ (2) 4x8 low profile tubular frames;
☑ (2) 48x24x12 rectangular floats;
☑ (2) float mounting bracket set;
☑ (1) low profile hinge set;
☑ (2) steel piling sleeves;
☑ (4) deck panels;
☑ (4) 43"x13"x7" side stability floats and mounting hardware
Length 16'
☑ (2) 4x8 low profile tubular frames;
☑ (2) 48x24x12 rectangular floats;
☑ (2) float mounting bracket set;
☑ (1) low profile hinge set;
☑ (2) steel piling sleeves;
☑ (4) deck panels;
☑ (4) 43"x13"x7" side stability floats and mounting hardware
Length 24'
☑ (4) 4x8 low profile tubular frames;
☑ (6) 48x24x12 rectangular floats;
☑ (6) float mounting bracket set;
☑ (1) low profile hinge set;
☑ (2) steel piling sleeves;
☑ (8) deck panels;
☑ (11) 43"x13"x7" side stability floats and mounting hardware
FRAME
☑ Weight per frame: 45 pounds
☑ Frame Height: 4 inches
☑ Frame Weight Capacity: 45 PSF when constructed as specified
☑ Frame Material: Aluminum (Marine Grade 6061-T6)
☑ Frame Style: Low Profile
☑ Frame Build: Bolt-together
☑ Hinge Span: Every 16 feet

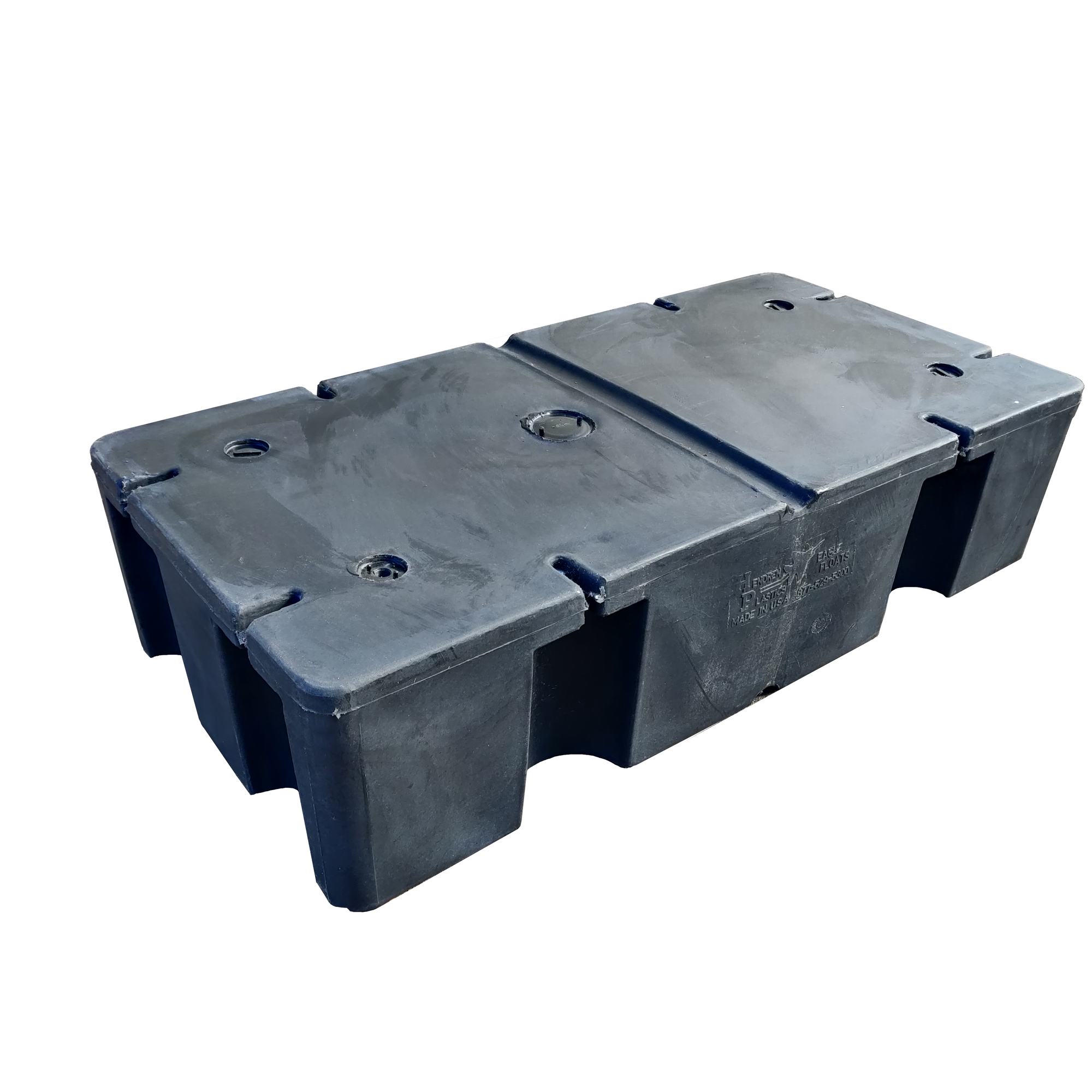

FLOAT
☑ Float Material: High-Density Polypropylene
☑ Foam-filled: Yes
☑ Float Dimensions: 48x24x12
☑ Float Capacity: 390 pounds
STABILITY FLOATS
☑ Float Material: High-Density Polypropylene
☑ Foam-filled: No
☑ Float Dimensions: 47-1/4″ x 13-1/2″ x 6-3/4″
☑ Float Capacity: 145 pounds
DECKING
☑ Decking Panel Measurements: 48x48x1 inches
☑ Poly Panel Weight: 30 pounds
☑ Poly Details: Four 48x12x1 inch Polypropylene Panels with Aluminum Reinforcements and Stringers
HINGE
☑ Hinge Material: Aluminum
☑ Hinge Dimensions: 48×1 inches
☑ Hinge Articulation: 25 degrees
HARDWARE
☑ Hardware material: Grade 8 Zinc-plated
☑ Hardware size: 3/8″ or 1/2″
Layout
Optional Extra
Dock Hinge
Add a Floating Dock Hinge to your floating dock to allow for dock articulation. Dock Hinges can allow sections of dock to join together and allow movement!
