Patriot’s Gangway Kit is the perfect way to bridge a floating dock and the shore. Select many options to build the gangway that most fits your application!
See All Patriot Docks Here
Questions? Call Dave: "Tel: 864.367.6161" dave@lightasairboats.com

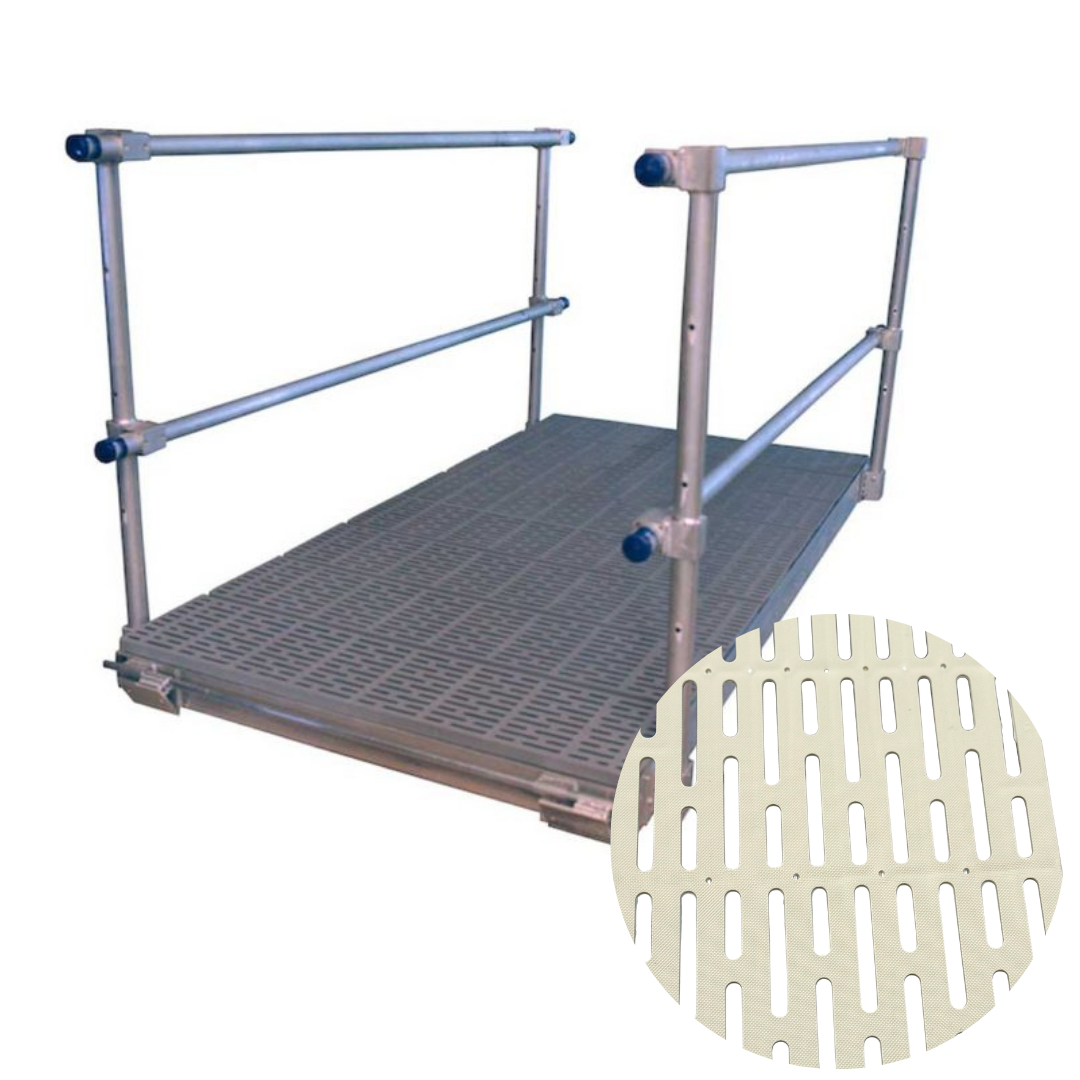

The Patriot Docks Gangway Kit is an excellent way to transition from shoreline to pier, especially in fluctuating water. Constructed from marine-grade aluminum, this Gangway Kit is built rigidly and lasts for a lifetime.
Each Gangway Kit features a variety of decking options, brought to you by Patriot Decking.
Handrails are included for safety. Most gangways are fully welded structures that cost a fortune, but this Gangway Kit saves you money by putting it together yourself!
Frame:
☑ Weight per frame: 45 pounds
☑ Frame Height: 4 inches
☑ Frame Weight Capacity: 45 PSF when constructed as specified
☑ Frame Material: Aluminum (Marine Grade 6061-T6)
☑ Frame Style: Low Profile
☑ Frame Build: Bolted
Decking Options:
☑ Decking Panel Measurements: 48x48x1 inches
☑ Cedar Panel Weight: 37 pounds
☑ Cedar Details: Unfinished Premium Western Red Cedar 48x6x1 inch Boards with Stringers
☑ Poly Panel Weight: 30 pounds
☑ Poly Details: Four 48x12x1 inch Polypropylene Panels with Aluminum Reinforcements and Stringers
☑ Aluminum Panel Weight: 25 pounds
☑ Aluminum Details: Premium 48x6x1 inch Extruded Aluminum Boards with Bolted ☑ Stringers, Powder Coating, and Wood Grain Finish
Includes:
☑ Gangway Frame
☑ Decking
☑ Handrails for both sides
☑ 1 Hinge for one end of the Gangway
Mounting:
☑ Mount Type: Hinge Mounting
☑ Hinge Material: Aluminum
☑ Hinge Dimensions: 48×1 inches
☑ Articulation Range: 56″ up and down from Dock Surface
Handrail:
☑ Handrail Material: Aluminum
☑ Handrail Diameter: 1-7/8″ OD
Hardware:
☑ Hardware material: Grade 8 Zinc-plated
☑ Hardware size: 3/8″ or 1/2″
