    Patriot’s Gangway Kit is the perfect way to bridge a floating dock and the shore. Select many options to build the gangway that most fits your application!

    See All Patriot Docks  Here
    Questions? Call Dave: "Tel: 864.367.6161" dave@lightasairboats.com

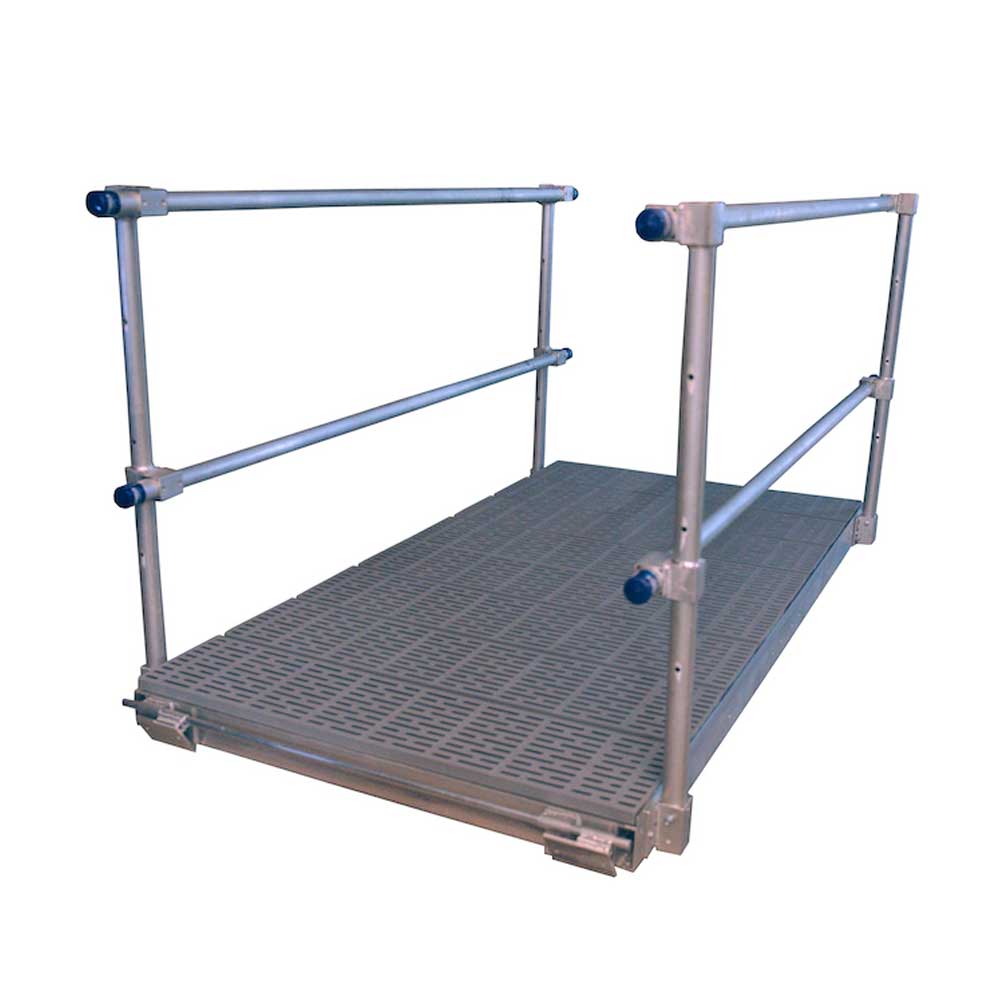

     The Patriot Docks Gangway Kit is an excellent way to transition from shoreline to pier, especially in fluctuating water. Constructed from marine-grade aluminum, this Gangway Kit is built rigidly and lasts for a lifetime.

    Each Gangway Kit features a variety of decking options, brought to you by Patriot Decking.

    Handrails are included for safety. Most gangways are fully welded structures that cost a fortune, but this Gangway Kit saves you money by putting it together yourself!

    Frame:

    ☑ Weight per frame: 45 pounds
    ☑ Frame Height: 4 inches
    ☑ Frame Weight Capacity: 45 PSF when constructed as specified
    ☑ Frame Material: Aluminum (Marine Grade 6061-T6)
    ☑ Frame Style: Low Profile
    ☑ Frame Build: Bolted

    Decking Options:

    ☑ Decking Panel Measurements: 48x48x1 inches
    ☑ Cedar Panel Weight: 37 pounds
    ☑ Cedar Details: Unfinished Premium Western Red Cedar 48x6x1 inch Boards with Stringers
    ☑ Poly Panel Weight: 30 pounds
    ☑ Poly Details: Four 48x12x1 inch Polypropylene Panels with Aluminum Reinforcements and Stringers
    ☑ Aluminum Panel Weight: 25 pounds
    ☑ Aluminum Details: Premium 48x6x1 inch Extruded Aluminum Boards with Bolted ☑ Stringers, Powder Coating, and Wood Grain Finish

    Includes:

    ☑ Gangway Frame
    ☑ Decking
    ☑ Handrails for both sides
    ☑ 1 Hinge for one end of the Gangway

    Mounting:

    ☑ Mount Type: Hinge Mounting
    ☑ Hinge Material: Aluminum
    ☑ Hinge Dimensions: 48×1 inches
    ☑ Articulation Range: 56″ up and down from Dock Surface

    Handrail:

    ☑ Handrail Material: Aluminum
    ☑ Handrail Diameter: 1-7/8″ OD

    Hardware:

    ☑ Hardware material: Grade 8 Zinc-plated
    ☑ Hardware size: 3/8″ or 1/2″
