Create a beautiful and functional extension of your living space with the Patriot Docks 40' Straight Stationary Dock.
Built from no-rust aluminum frame and premium quality decking materials, this docks surely provide the ultimate stability for your waterfront property.
See Patriot Docks Here
Questions? Call Dave: "Tel: 864.367.6161" dave@lightasairboats.com
Patriot Docks' Stationary Docks are ideal boat docks being made of a no-rust aluminum frame, drop in decking panels, and fully adjustable galvanized dock supports. Choose Patriot’s Stationary Dock system for a lightweight, hassle-free dock that saves you a ton of time and money, so you can enjoy the lake for a change!
Available in different decking options.
Stationary Docks modular dock frames utilize custom aluminum profiles and professional engineering, to create a very strong yet lightweight dock design that is simple and easy to assemble.
Stationary Docks are common for permanent docks, applications that rule out rolling docks, and on bodies of water generally ranging from shallow (0-5ft deep) to deep (5-7ft deep). Stationary docks are also preferred for some rivers, tidal waters, and reservoirs.
Features
Patriot Docks has been perfecting dock craftsmanship for over 20 years. As a multi-generational family business, they know the value of time, so one of their greatest values is to make purchasing and owning a dock easy enough to save time for your loved ones.
☑ Easy to Install
Patriot Docks Stationary docks are easier and quicker to install. They come in modular designs that can be assembled and disassembled with relative ease. This feature reduces construction time and allows for faster deployment or removal of the dock as required.
☑ Very Durable
Patriot Docks Stationary docks are constructed with durable materials and designed to withstand the challenges of marine environments. They are resistant to corrosion, UV radiation, and water damage, ensuring longevity and reduced maintenance requirements.
☑ Adaptability
Patriot Docks Stationary docks can adapt to various waterfront configurations and environments. They can be used in shallow or deep water, on rivers, lakes, and even in areas with uneven or rocky bottoms. This adaptability makes them suitable for a wide range of waterfront properties.
☑ High truss work allows for more land on the support pipe creating very rigid structure 1-1/2″ i.d galvanized schedule 40 pipe axle
☑ Light weight removable decking
☑ High quality marine grade aluminum allows for maximum strength and durability
Types of Stationary Docks
Straight Stationary Dock Patio Stationary Dock
Specifications
Patriot Docks have been the family craft for a generation. Explore the general specifications of their materials for HOA or permit requirements or for peace of mind, knowing that Patriot docks are built to last.
Patriot’s basic aluminum stationary dock includes 12-in. deep aluminum truss frames which are expertly crafted with welded and bolted connections. Patriot Docks uses sturdy 7/16”- diameter aluminum chord rods, not ⅜” like most of their competitors. Each pipe is constructed from 1-1/2" schedule 40 electro-galvanized steel, not lighter weight steel tubing. For added strength and durability, Patriot Dock's pipe brackets are extra long with two - not one - stainless steel set bolts.
Standard post lengths at given dock lengths: <16' = 4' supports, 16'-32' = 6' supports, >32' = 8' supports.
Available Colors

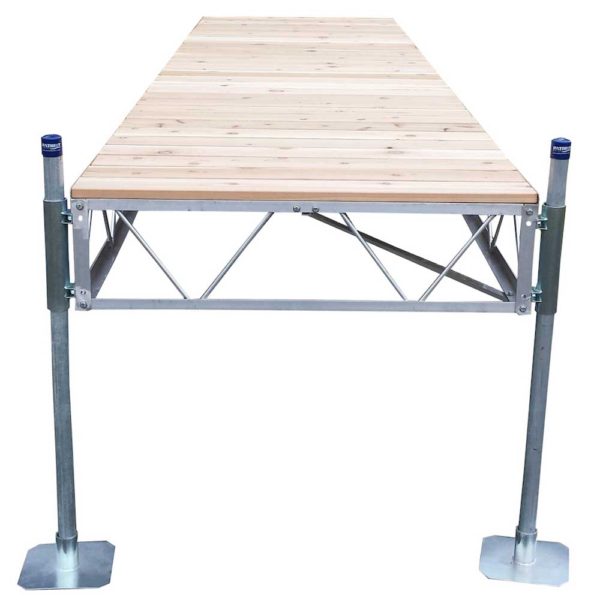

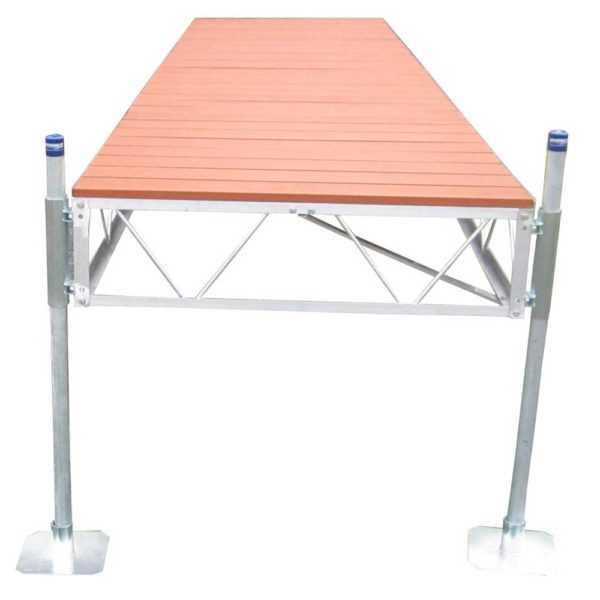

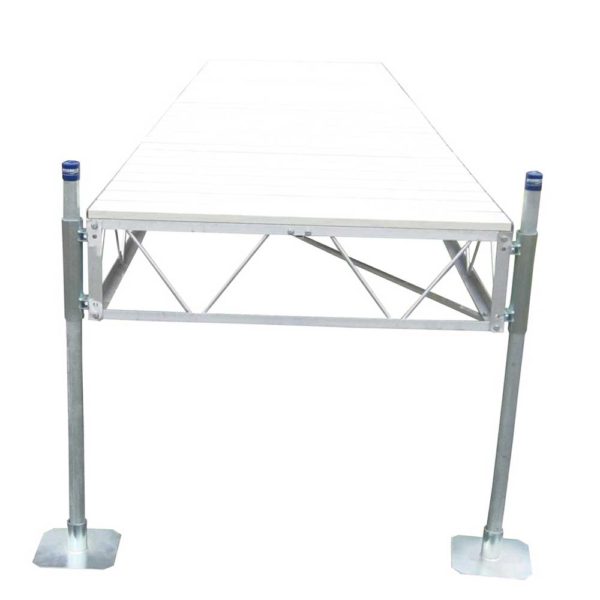

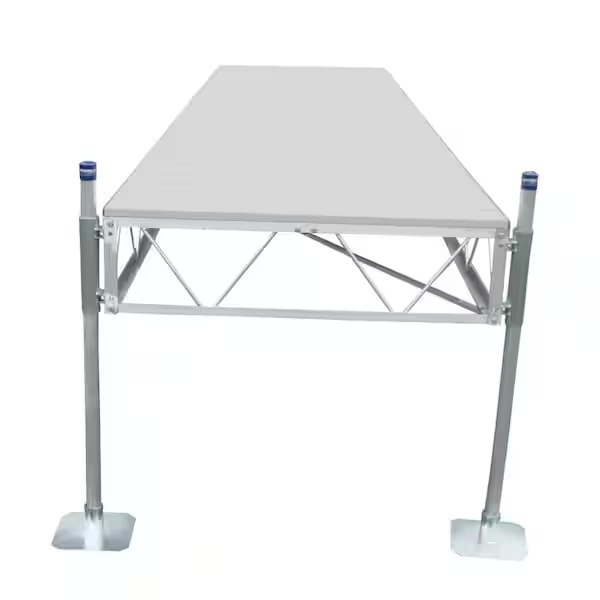

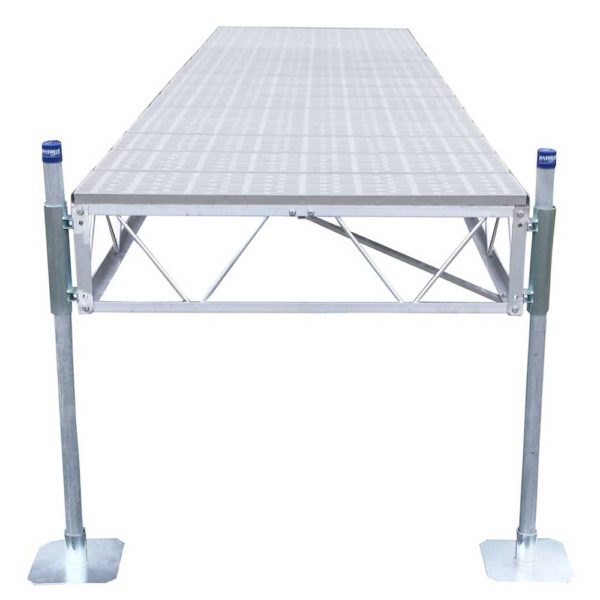

Patriot Docks’ Cedar decking is available in pre-assembled 4’ x 4’ panels which drop in and allow for easy handling. They also offer aluminum decking panels that have been painted to resemble wood and will complement any outdoor environment. The textured surface of the Poly decking is designed that allows for water drainage and stays cool to the touch while providing additional traction to safely navigate wet surfaces.
Package Includes
Patriot Dock Packages are standard dock configurations that work for most residential dock applications. These complete kits have all the parts and hardware you need to build your dock. Note specifications on shoreline and water depth and floating dock anchoring.
☑ 5 - 4X8' Frames
☑ 1 - End Rail
☑ 6 - Post Brackets
☑ 2 - 4' Posts;2 - 6' Posts
☑ 2 - 8' Posts
☑ 6 - Foot Plates
☑ 6 - Vinyl Caps
☑ 10 - 4X4' Panels
Optional Extras

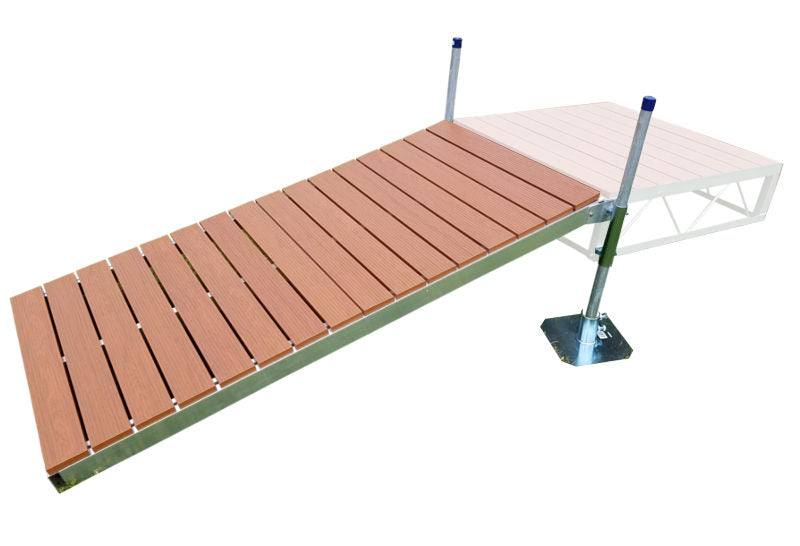

☑ Patriot Docks Shore Ramp

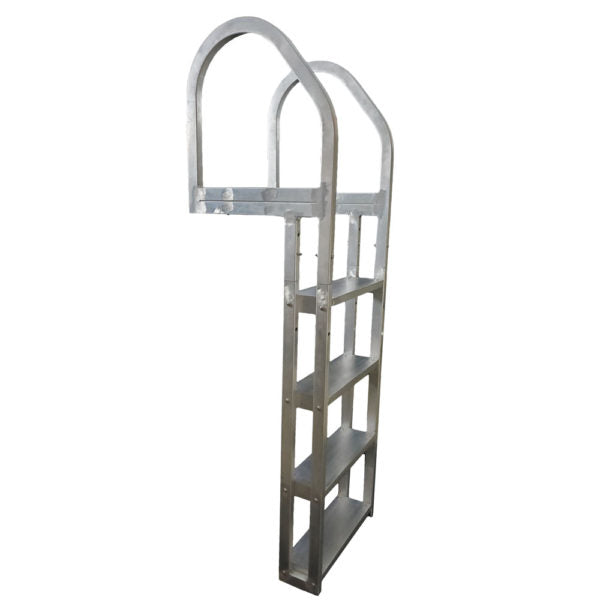

☑ Patriot Docks 4 Step Dock Ladder
☑ Patriot Docks Marine Stairs
Click here for the PDF file of Patriot Docks Assembly Instructions
Truss Frame Assembly
Low Profile Frame Assembly
Click here for Warranty Information and Form
Click here for the Frequently Asked Questions
