Patriot Docks 16' Gangway Aluminum Grey
Patriot Docks 16' Gangway Aluminum Gray

Patriot Docks 16' Gangway Aluminum Gray

  • Vendor
    Patriot Docks
    Sale price
    $3,258.00
    Regular price
    $3,258.00
    Unit price
    per

    Free Shipping | Ends:
    some_text

    Availability:

    Estimated Arrival: Between May 17 and May 24. *ETA to the USA Only

    Why Buy From Light As Air Boats

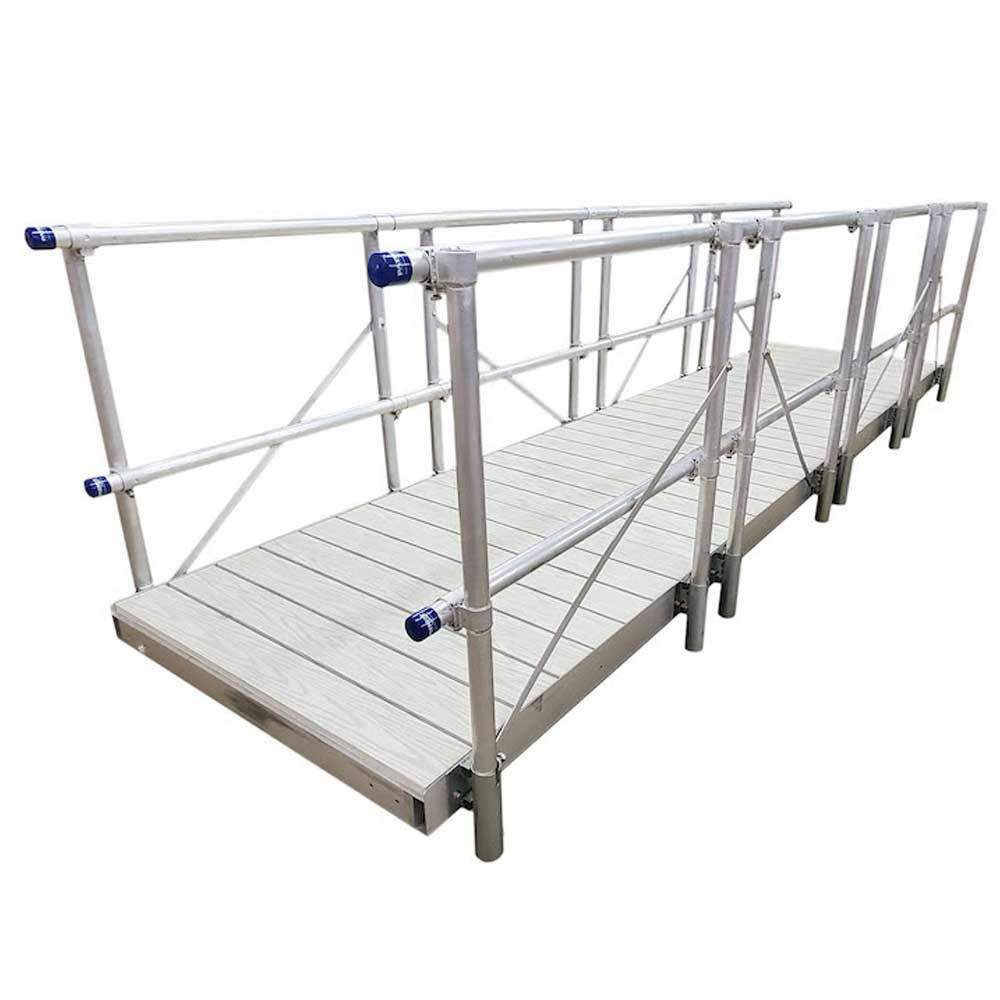

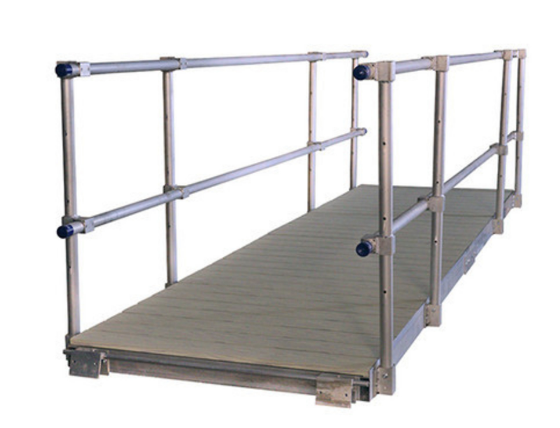

     The Patriot Docks 16' Aluminum Gray Gangway is the ideal solution for bridging any gap with style and reliability. Crafted with durability and safety in mind, this gangway is designed to seamlessly connect docks, decks, and other waterfront structures with ease.

    See Patriot Docks  Here

    Questions? Call Dave: "Tel: 864.367.6161" dave@lightasairboats.com

    Constructed from high-quality aluminum, the gray panels are not only visually appealing but also powder-coated to ensure superior slip protection. Whether you're strolling down to your boat or transporting equipment, you can trust in the secure footing provided by this gangway.
    But safety isn't the only priority—innovative engineering ensures efficient airflow from below, keeping the gangway cool even on the hottest days. This feature not only enhances comfort but also helps maintain the longevity of the structure.
    With its sturdy construction, sleek design, and advanced features, The Patriot Docks 16' Aluminum Gray Gangway offers unmatched performance and reliability for all your waterfront access needs. Say goodbye to gaps and hello to seamless transitions with this exceptional addition to your waterfront property.

     The Patriot Docks Gangway Kit is an excellent way to transition from shoreline to pier, especially in fluctuating water. Constructed from marine-grade aluminum, this Gangway Kit is built rigidly and lasts for a lifetime.

    Each Gangway Kit features a variety of decking options, brought to you by Patriot Decking.

    Handrails are included for safety. Most gangways are fully welded structures that cost a fortune, but this Gangway Kit saves you money by putting it together yourself!

    Frame:

    ☑ Weight per frame: 45 pounds
    ☑ Frame Height: 4 inches
    ☑ Frame Weight Capacity: 45 PSF when constructed as specified
    ☑ Frame Material: Aluminum (Marine Grade 6061-T6)
    ☑ Frame Style: Low Profile
    ☑ Frame Build: Bolted

    Decking Options:

    ☑ Decking Panel Measurements: 48x48x1 inches
    ☑ Cedar Panel Weight: 37 pounds
    ☑ Cedar Details: Unfinished Premium Western Red Cedar 48x6x1 inch Boards with Stringers
    ☑ Poly Panel Weight: 30 pounds
    ☑ Poly Details: Four 48x12x1 inch Polypropylene Panels with Aluminum Reinforcements and Stringers
    ☑ Aluminum Panel Weight: 25 pounds
    ☑ Aluminum Details: Premium 48x6x1 inch Extruded Aluminum Boards with Bolted ☑ Stringers, Powder Coating, and Wood Grain Finish

    Includes:

    ☑ Gangway Frame
    ☑ Decking
    ☑ Handrails for both sides
    ☑ 1 Hinge for one end of the Gangway

    Mounting:

    ☑ Mount Type: Hinge Mounting
    ☑ Hinge Material: Aluminum
    ☑ Hinge Dimensions: 48×1 inches
    ☑ Articulation Range: 56″ up and down from Dock Surface

    Handrail:

    ☑ Handrail Material: Aluminum
    ☑ Handrail Diameter: 1-7/8″ OD

    Hardware:

    ☑ Hardware material: Grade 8 Zinc-plated
    ☑ Hardware size: 3/8″ or 1/2″

    Gangway Assembly Instructions

    Truss Frame Assembly

    Low Profile Frame Assembly
