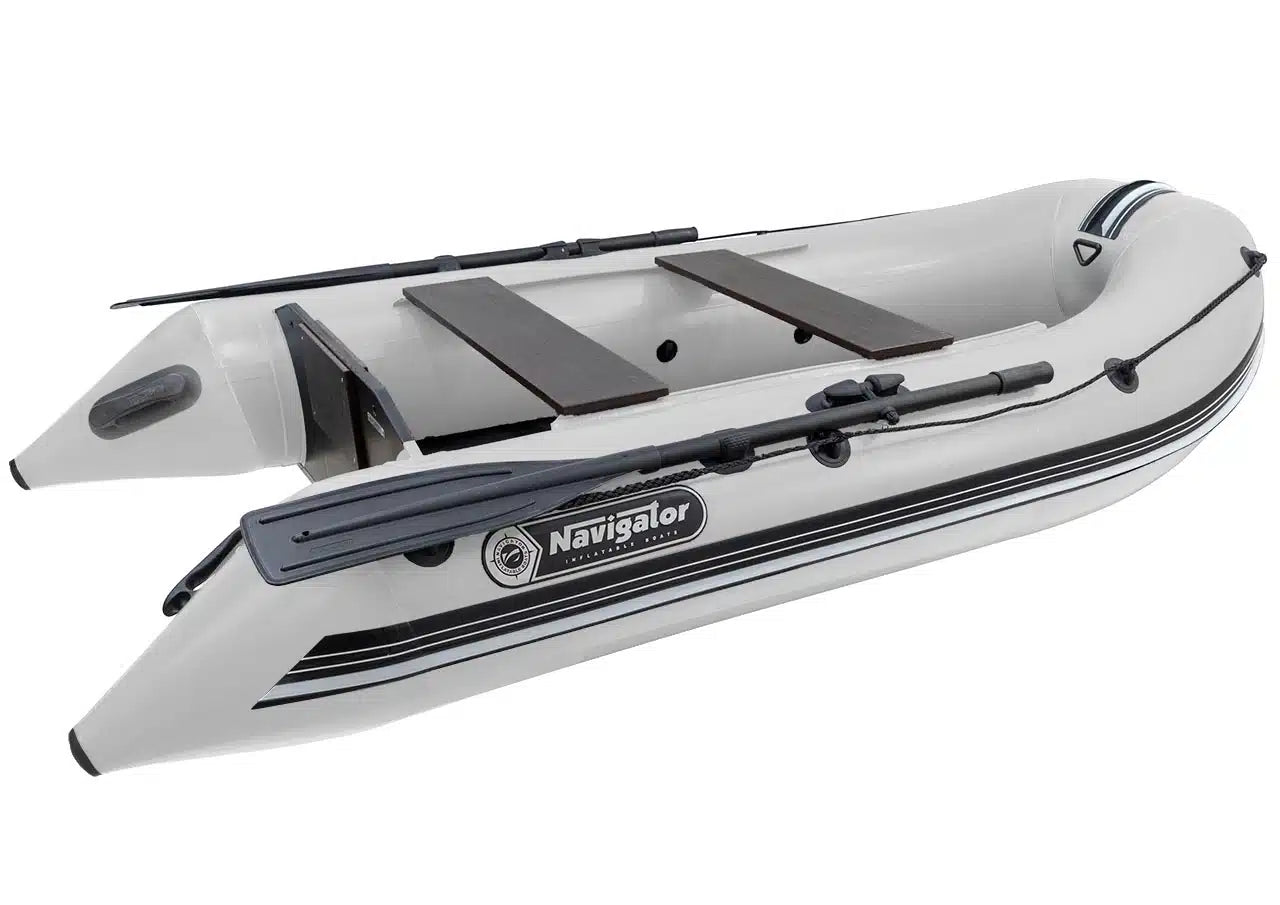

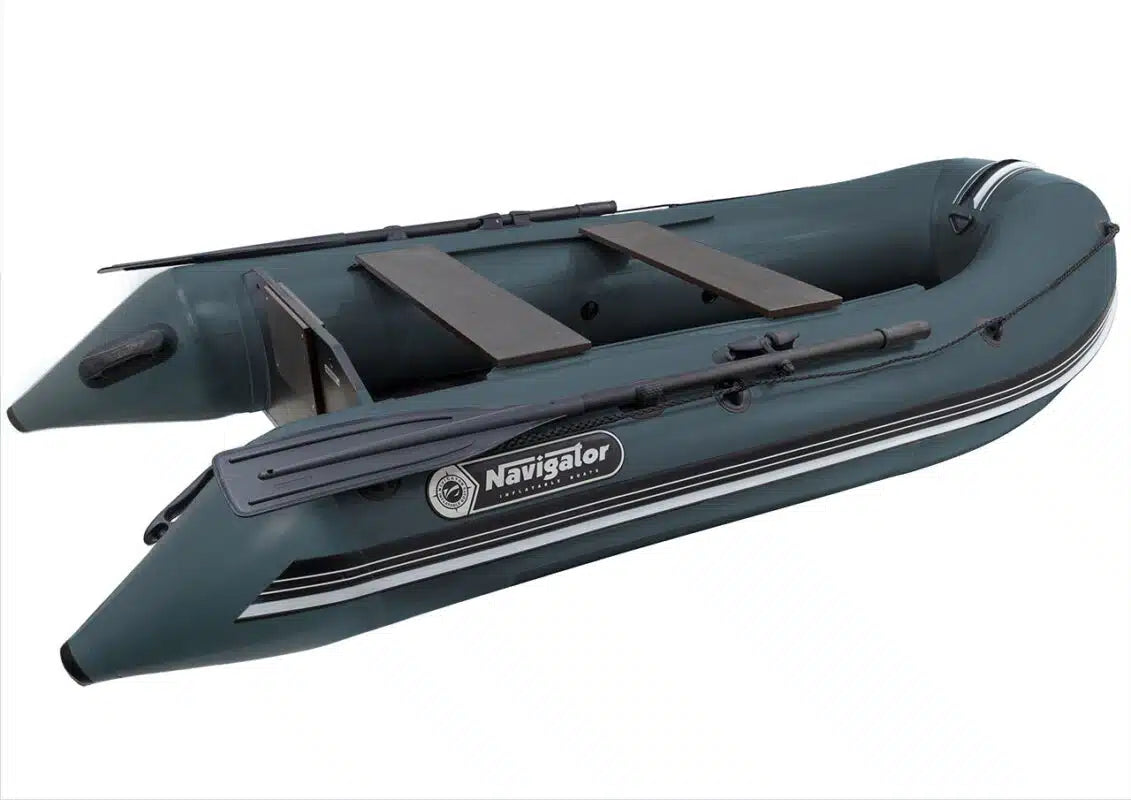

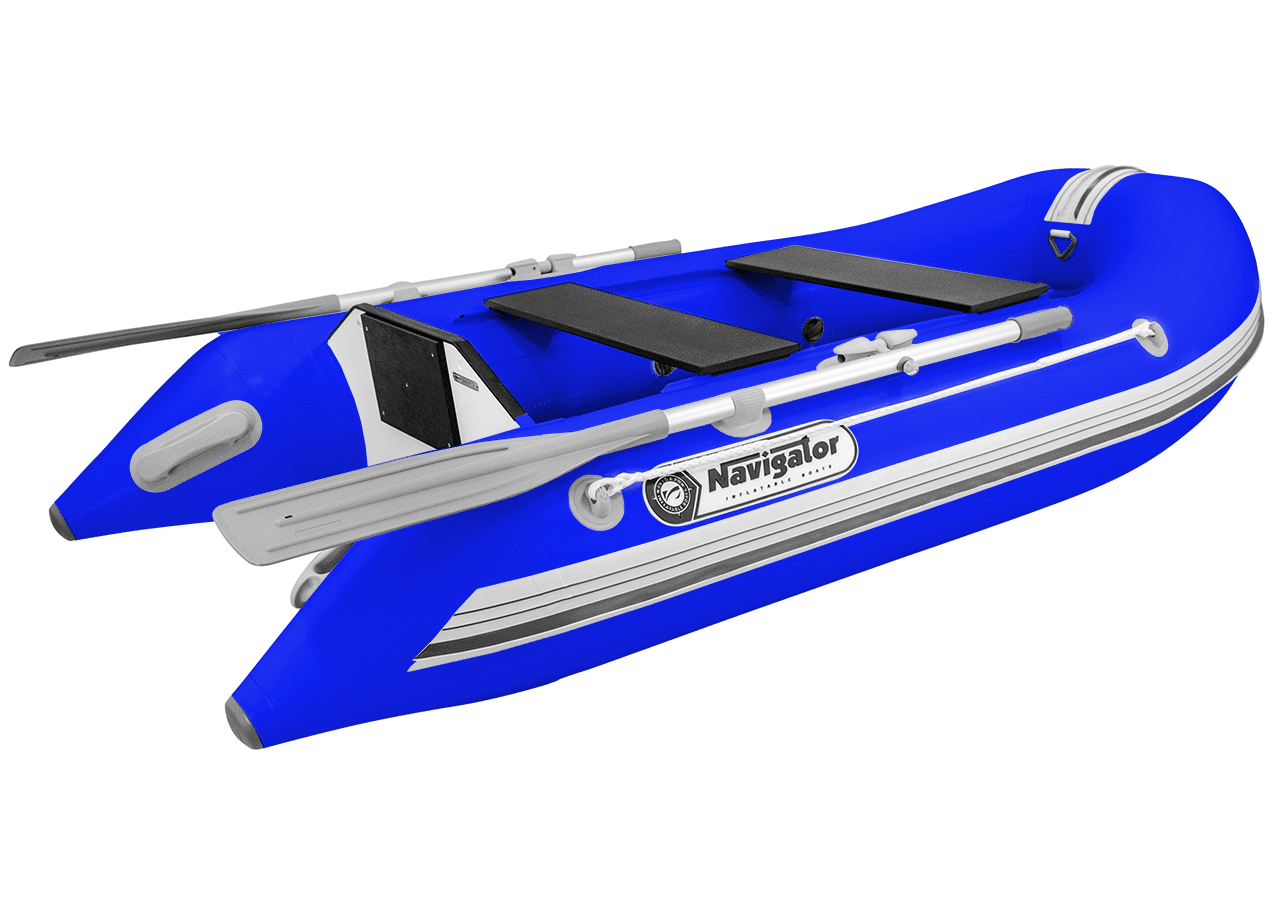

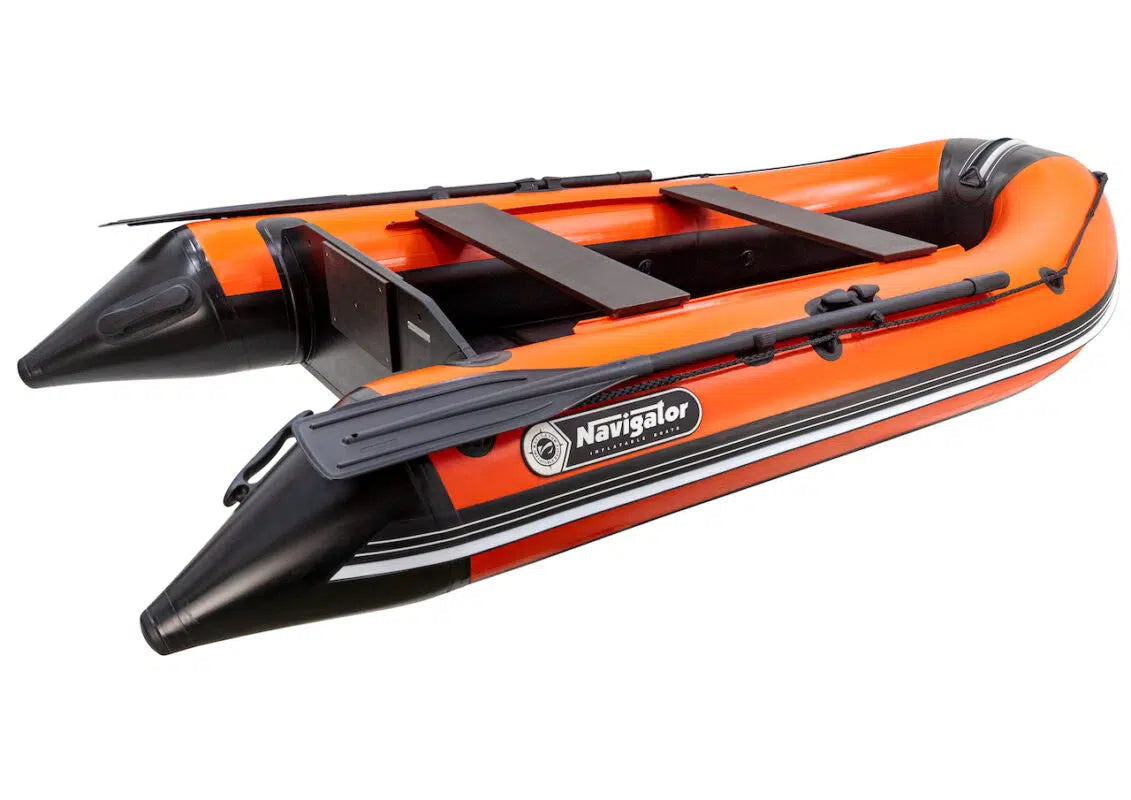

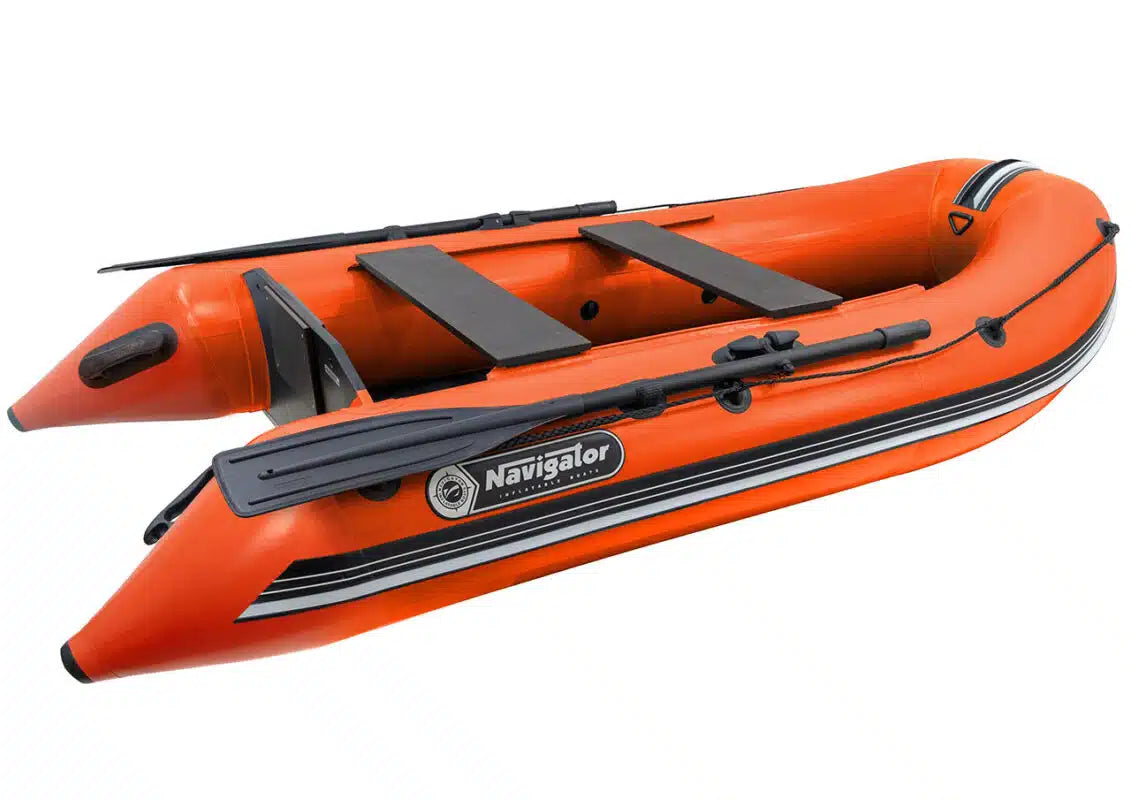

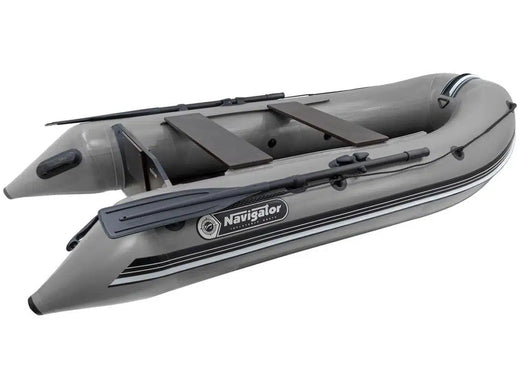

Navigator LP270BK Inflatable Boat 8'10"

Turn any day into an adventure with this durable Navigator LP270BK Inflatable Boat.

It offers excellent load capacity, perfect for gear, friends, or a relaxing solo getaway. Lightweight and compact, it’s ready whenever you are.

The Navigator was designed for use on large rivers and lakes with a unique feature: a variable diameter of U-shaped cylinders, decreasing from the stern to the boat’s bow. Navigator inflatable boats can be put in “planing mode” even with small engines because their bows are raised (“chiselled”) and their hull is constructed of smooth curves rather than sharp angles. This makes them less likely to get stuck under rocks or smash into waves head-on.

Navigator  models are optimized for the BEST performance, just like most recent mobile devices designed to achieve an optimal output. They use marine-grade plywood, covered with additional waterproof varnish layers, instead of weighty aluminum floors, which oxidize relatively quickly. This means you can take more weight on board, and it is easier to install the boat and transport it!

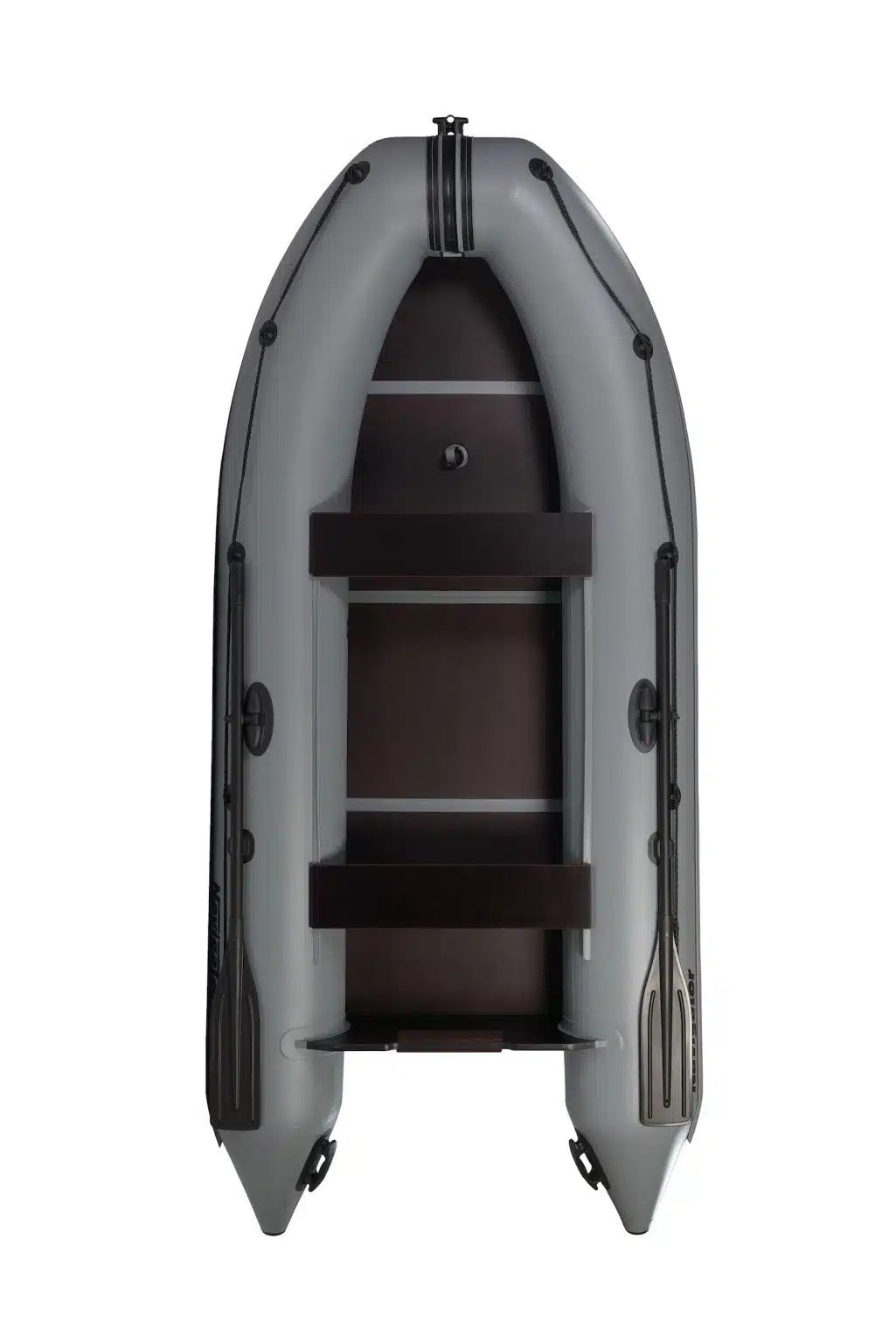

The “LP Navigator” series of keel boats with a book floor type are represented by the LP 240BK and LP 270BK models with a 2-person capacity and the LP 290BK, LP 300BK and LP 320BK models, which can accommodate up to 3 persons.

The boats are heat-welded using high-quality German PVC Valmex or Plastel produced by Mehler Texnologies with a density of 750 – 1000 g / m2. This increases their lifecycle and minimizes air leakage from the seams.

Inflatable boat Navigator LP 270BK, a product of European quality has been popular with fishing and water recreation fans for more than 15 years for its high quality and reliability.

This 2-person boat has a U-shaped cylinder with a reinforced transom made of waterproof plywood. The Cylinders are divided into 4 pressurized compartments (nose, left, right, and an inflatable keel). Thanks to the full cut of the fabric, the patented boat shape has 4 circular and 2 longitudinal seams, which ensures high tightness of the cylinders and minimizes seam leakage.

Features

☑ Original Designs of Cylinders
Boats built by Navigator are both beautiful and reliable.

☑ Heat Welding Technology
Navigator Inflatable Boats seams are 100% fully heat welded.

☑ Modern Five Layered PVC
Navigator inflatable boats are made from materials that can withstand all conditions and provide you with years of enjoyment.

☑ Improvements in Hydrodynamic Contours
The Navigator boat’s hydrodynamic contours provide an unmatched experience in terms of ride quality.

☑ Floating on marine-grade, waterproof plywood
Navigator flooring system is uniquely designed for inflatable boats.

☑ Added Reinforcement to the Transom
Navigator reinforced transoms are made of durable, water-resistant plywood.

☑ Full Quality Control
At Navigator, we developed technologically advanced processes, designed and manufactured special equipment, studied materials for future Navigator boats.

☑ The welded frame of the cylinders is divided into 3 independent pressurized compartments.
☑ A 9 cm wide rubber protector (teardrop rubbing strake) is glued around the tube.
☑ A lifeline 8-10 mm thick is mounted around the outer perimeter of the boat.
☑ Floor-type – book type floor (4-section) 9 mm thick, wooden boards are connected to each other with PVC strips, 1 piece which folds as a flyer/book.
☑ Reinforced stationary transom made of marine grade water-resistant plywood 18 mm thick is installed under a certain angle to the cylinders to boost performance. The upper part of the transom is equipped with a protective strip, the sides have special motor-mount planks.
☑ To transport the boat, 2 handles on the ends of the cylinders may be used.
☑ The universal towing handle in the bow, made of durable plastic, is used for towing and anchoring the boat.
☑ A towing ring and anchor roller is used to attach the anchor cable to the bow.
☑ The boat is equipped with a pressure-control safety valve.

Standard Navigator Inflatable Boats Construction Elements

Specifications

☑ Brand, model: Navigator LP 270BK
☑ Boat type: Roll-up Boat with an inflatable keel and a book-type floor
☑ Body material: Valmex or Plastel PVC, Mehler Texnologies
☑ Length overall, (ft): 8'10"
☑ Length inside, (ft): 6'6"
☑ Width overall, (in): 54"
☑ Width inside, (in): 25"
☑ Outer length - 106 inches
☑ Outer width - 54 inches
☑ Number of chambers:  3
☑ Diameter of cylinders - 15"
☑ The density of the boat cylinder material, g / m2: 750
☑ The density of the boat bottom material, g / m2: 750
☑ Floor-type: Book-Type Floor
☑ Bottom type: Inflatable Keel
☑ Transom Type: Reinforced Transom
☑ Transom height - (15″)
☑ Transom thickness - .70 inch
☑ Passenger capacity, people: 2
☑ Loading capacity - 660 lbs
☑ Recommended motor power, HP: 2.5
☑ Maximum engine power, HP: 5
☑ Standard set includes: Anchor roller (roller)
☑ Handles for transportation, pcs: 2 on the ends of the cylinders
☑ Paddle length - 55.12 inches
☑ Oarlocks type: rotary, pin type
☑ Overall weight - 70lb
☑ Boat bag size - 45.27 x 15.75 x 15.75
☑ Deck bag size - 39.38 x 23.62 x 3.93
☑ Warranty for welded seams, months: 60
☑ Warranty for PVC material, months: 60

Color Available

☑ Light Grey
☑ Dark Grey
☑ Light Blue
☑ Orange and Black
☑ White

Standard complete package of an inflatable boat (LP-series)

☑ Two movable seats that are easily adjusted along the entire length of the rails.
☑ Two detachable aluminum oars – 1.4 meters long.
☑ Inflatable boat foot pump – 6 liters.
☑ Small repair kit (PVC patch, glue, valve instrument).
☑ Operation manual.
☑ Transporting bag for the boat – 1 pc. (fits in a car trunk)
☑ Transporting bag for book type floor – 1 pc. (fits in a car trunk)

Navigator Inflatable Boats Warranty

User Manual

How to Assemble Inflatable Boats?

Frequently Asked Questions

☑ What is an inflatable boat used for?
Consider inflatables for versatile recreational boating activities like fishing, duck hunting, camping, surfing, or sightseeing. However, be mindful of your needs and avoid rough waters with smaller models. Some heavy-duty inflatable rafts are also used by law enforcement and military personnel.
☑ Do I have to register my inflatable boat?
If you installed an outboard motor of 10HP or more, you may need to register your new vessel. Navigator Inflatable Boats have a unique HIN registered with Transport Canada, which is recognized in the US under a bilateral agreement.
☑ Do I need a boating license for an inflatable boat?
To operate an inflatable boat with a motor, you need a pleasure craft operator license. For fishing, you may also need extra licenses and permits, depending on your location. Check the List of Accredited Service Providers for more information.
☑ How do you repair or patch up holes in my inflatable boat?
The Standard Navigator roll-up boat comes with a patch kit. A small repair kit will consist of a valve unscrew tool, glue and PVC patches. For complex boat repairs, talk to a professional technician. For additional boat guides, check the “Repairs” section of the Navigator Inflatable Boats User Manual.
☑ How many people does my inflatable boat fit?
It’s all about the right boat size, how much weight it can handle, and some design features. Typical inflatable boats can seat a maximum weight of 2 to 6 people. Here are some currently available options:
*2 Passenger inflatable boat
Navigator’s LG-series
*2 – 3 Person Inflatable Boat
Navigator LP-series
*4 Person Inflatable Boat / 6 Person Inflatable Boat
Navigator LK-series
☑ What inflatable boat should I choose for different types of waters?
Choose a smaller, maneuverable boat for lakes and flat water rivers, and a larger vessel with a powerful engine and keel for open ocean. Consider comfort with ample space and seating for longer trips.
☑ Which parts should I be outfitting my boat with?
Attach a boat engine for faster transportation, add an extra hull for added safety and more seating, use a boat ladder for water activities like swimming, diving, or water skiing, and get seats for comfort. For fishermen, invest in fishing rod holders.
