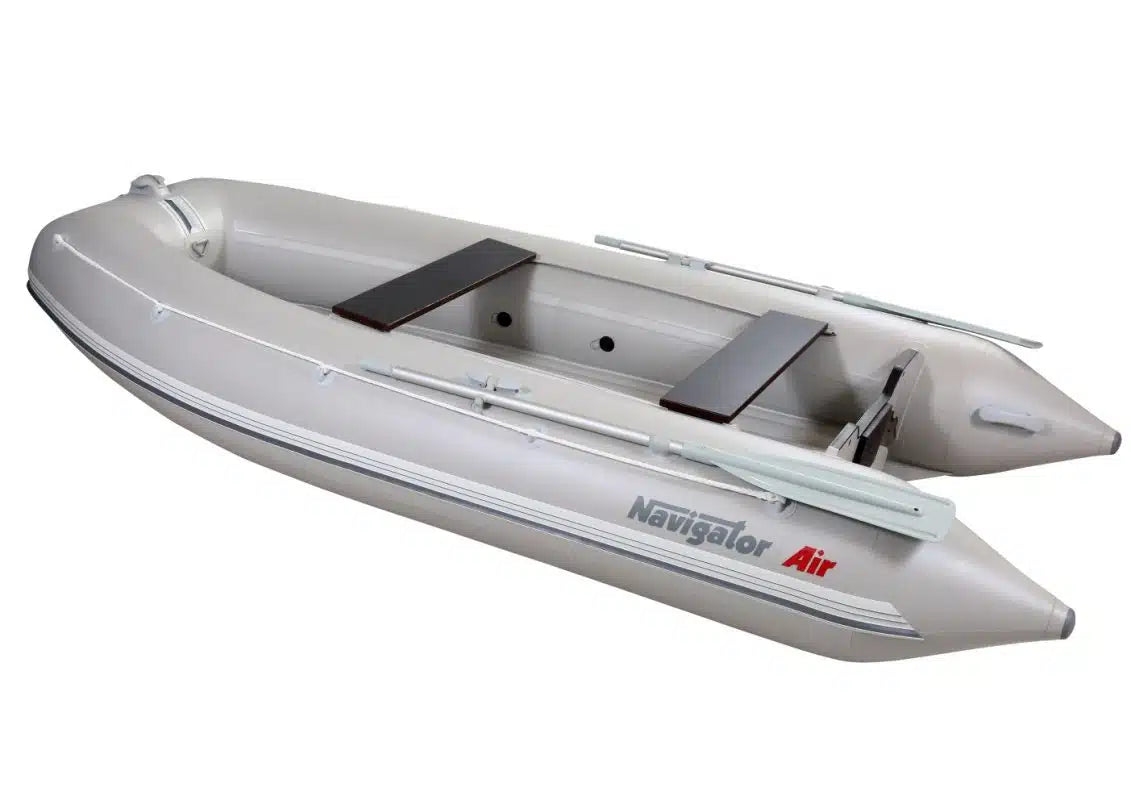

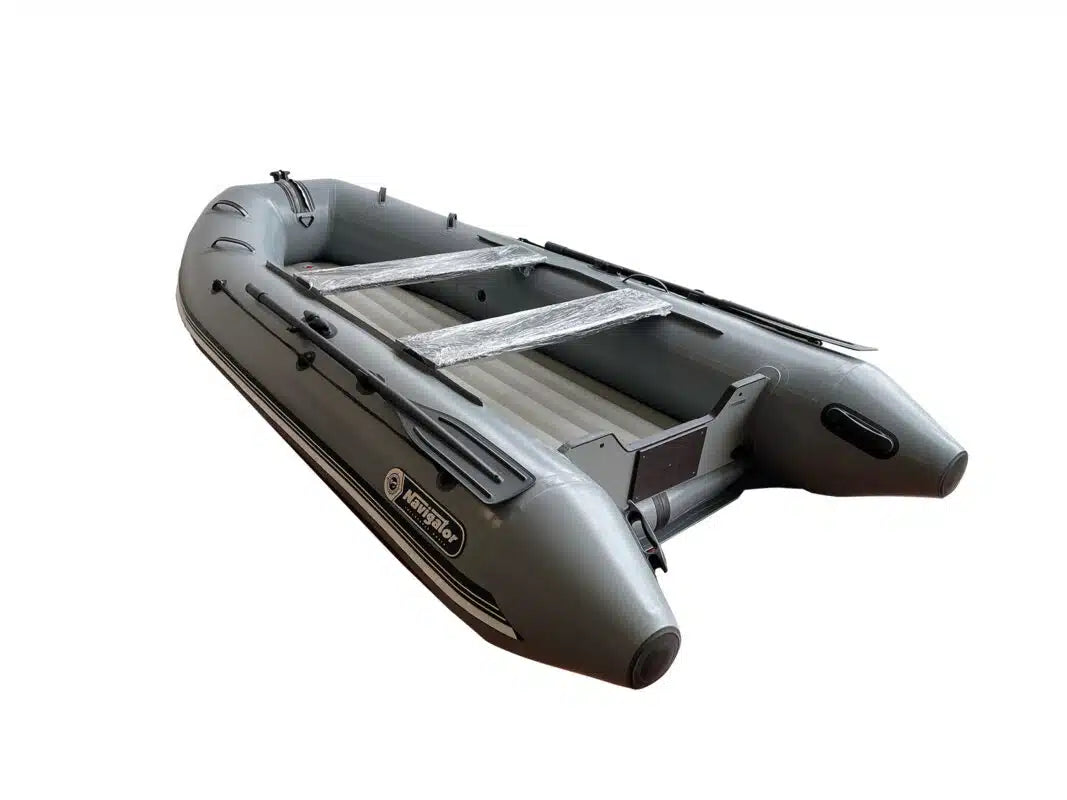

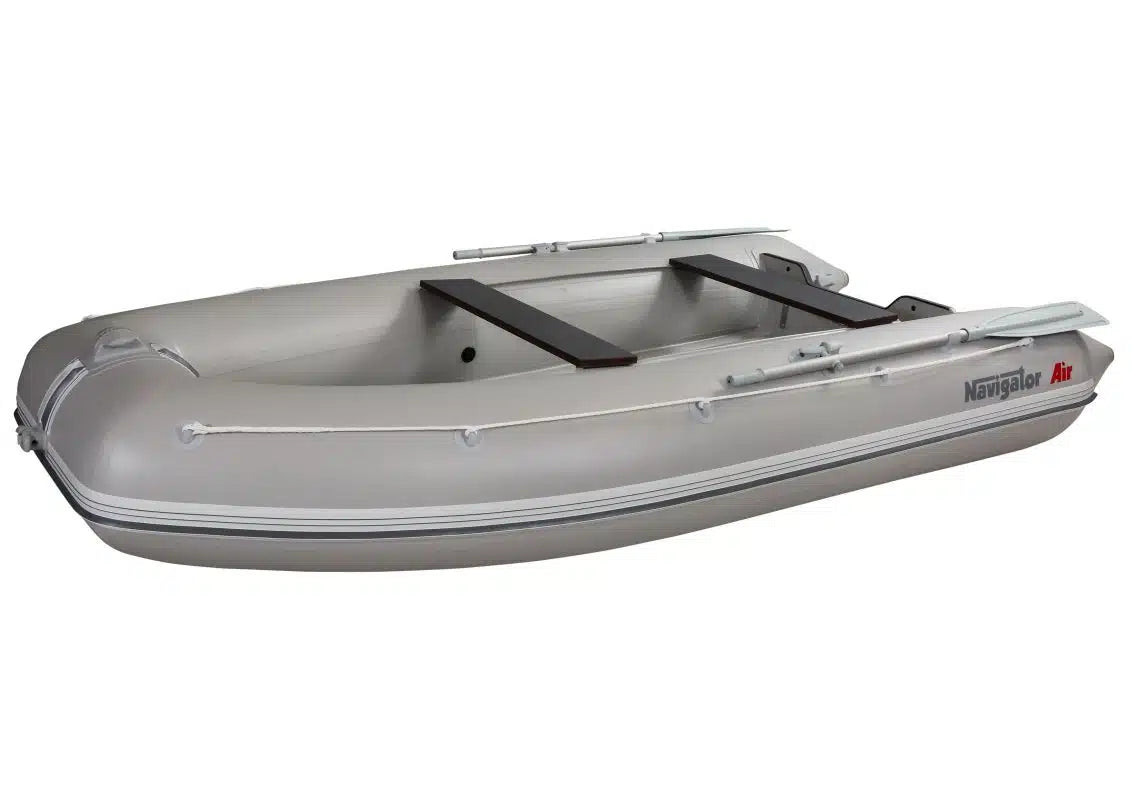

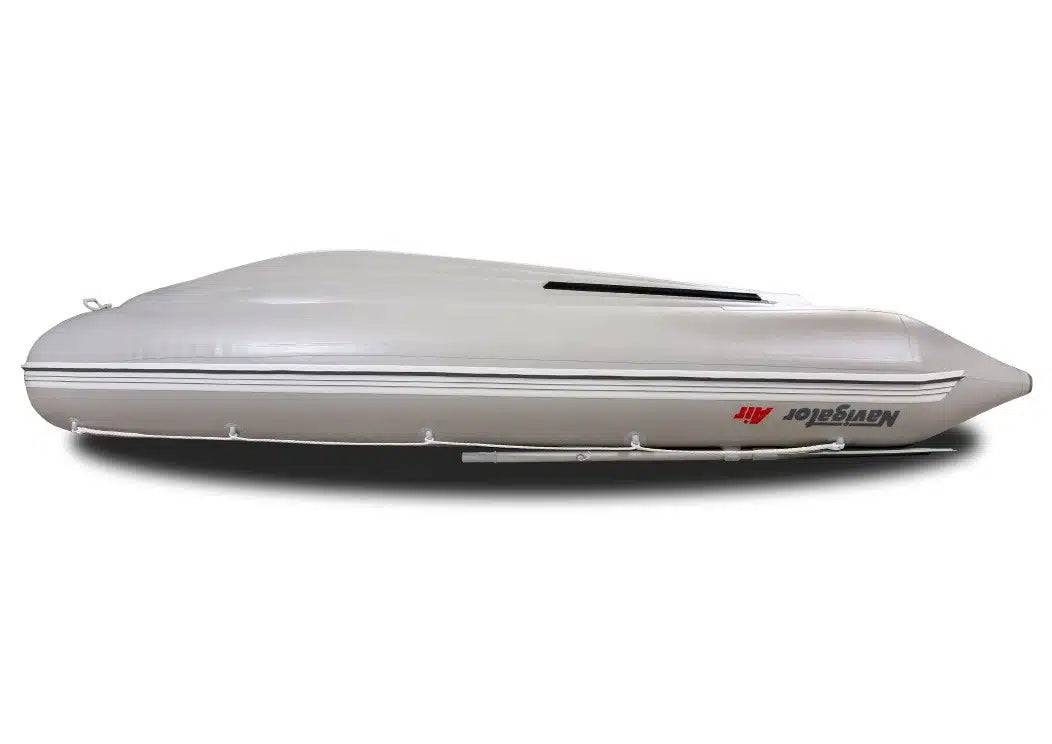

Navigator LI360 Inflatable 11'9" Boat with Integrated Air Floor

Enjoy smooth rides, simple storage, and unlimited exploration with the 11'9" Navigator LI360 Inflatable Boat.

Its rugged construction ensures long-lasting use in different environments.

The Navigator was designed for use on large rivers and lakes with a unique feature: a variable diameter of U-shaped cylinders, decreasing from the stern to the boat’s bow. Navigator inflatable boats can be put in “planing mode” even with small engines because their bows are raised (“chiselled”) and their hull is constructed of smooth curves rather than sharp angles. This makes them less likely to get stuck under rocks or smash into waves head-on.

Navigator  models are optimized for the BEST performance, just like most recent mobile devices designed to achieve an optimal output. They use marine-grade plywood Transoms, covered with additional waterproof varnish layers, integrated air floors.

With a capacity for four people Navigator Wind 360 is a novelty from Navigator Group.

The increased interior space was achieved by manufacturing the original hull design. With an increase in the deadrise angle, its smooth running and the necessary directional stability are achieved.

Features

☑ Original Designs of Cylinders
Boats built by Navigator are both beautiful and reliable.

☑ Heat Welding Technology
Navigator Inflatable Boats seams are 100% fully heat welded.

☑ Modern Five Layered PVC
Navigator inflatable boats are made from materials that can withstand all conditions and provide you with years of enjoyment.

☑ Improvements in Hydrodynamic Contours
The Navigator boat’s hydrodynamic contours provide an unmatched experience in terms of ride quality.

☑ Floating on marine-grade, waterproof plywood
Navigator flooring system is uniquely designed for inflatable boats.

☑ Added Reinforcement to the Transom
Navigator reinforced transoms are made of durable, water-resistant plywood.

☑ Full Quality Control
At Navigator, we developed technologically advanced processes, designed and manufactured special equipment, studied materials for future Navigator boats.

☑ A speed of 41 km/h has been reached. with a Mercury 15M engine for two passengers with their location closer to the transom !!! With one passenger, the speed was 44-45 km / h.
☑ The enlarged and spacious cockpit is implemented due to the improved contours of the boat.
☑ The use of five-layer boat pvc with a density of 1100 g/m2 produced in South Korea.
☑ Variable cylinder diameter provides excellent ship stability and good seaworthiness.
☑ Boat hull has 4 circumferential and 2 longitudinal welds. Hot air welding technology is used. This technology ensures uniform heating of the fabric to be welded. Seams are made by the butt-to-butt joint method with welding of the inner and outer sides.
☑  “Welding” of the intercylinder baffle into the body of the cylinder.
☑ The increased diameter of the cylinders up to 48cm is one of the main indicators of the boat’s seaworthiness on large bodies of water. To protect the cylinders of the bottom from external damage, a protective bar is installed.
☑ The low pressure inflatable bottom (0.3 atmospheres) is comparable to a hard solder floor.
☑ Longitudinal redans increase the stability of the boat, have the “effect” of cutting off the flow of water from the bottom, which leads to an increase in the speed of the boat.
☑ Installation of a transom spoiler allows you to get a strong connection between the transom and the bottom and allows you to reduce the overall water resistance relative to the movement of the vessel.

Standard Navigator Inflatable Boats Construction Elements

Specifications

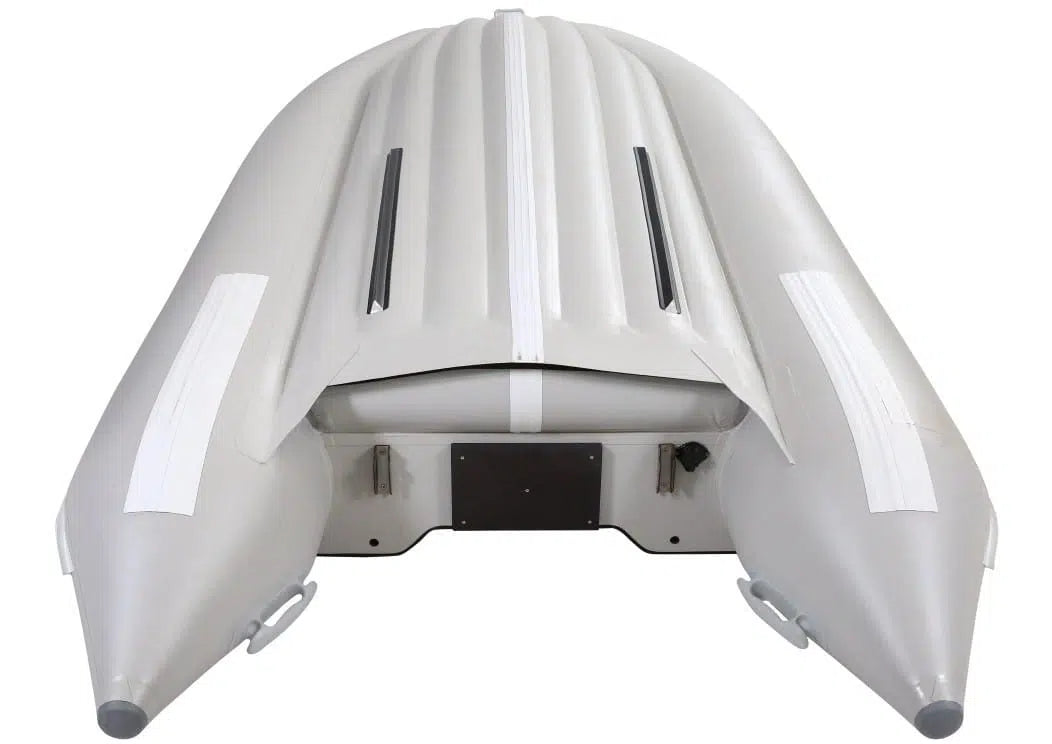

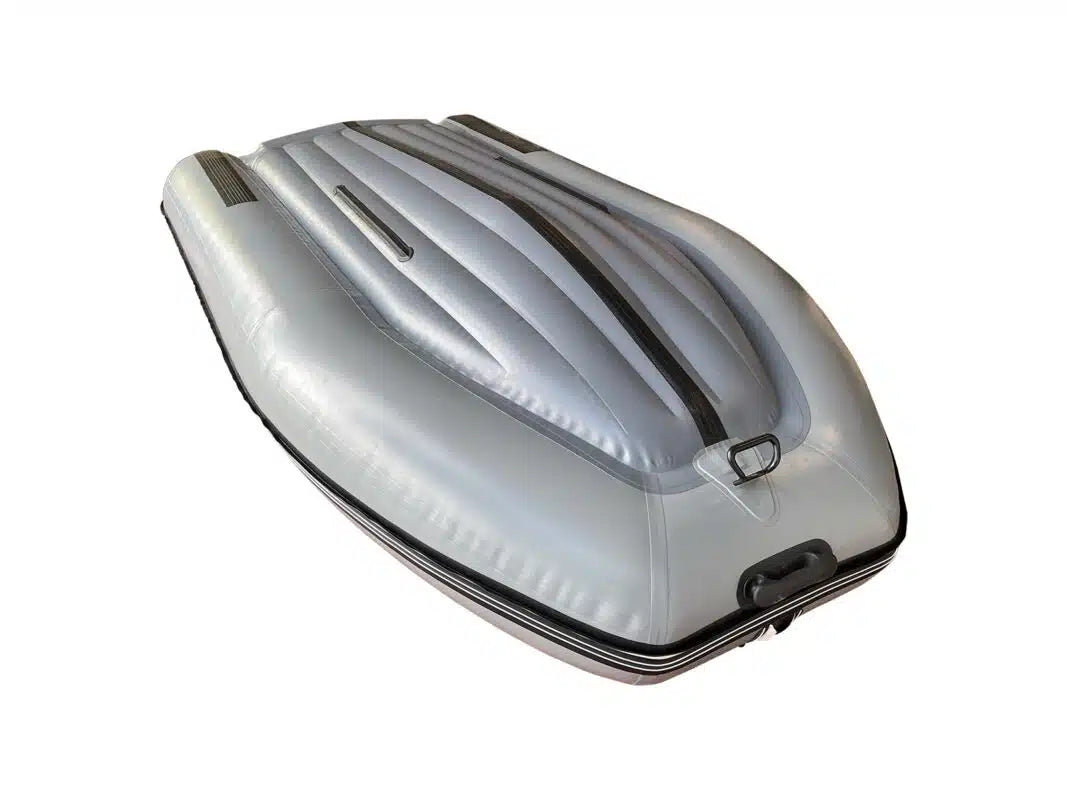

☑ Bottom type: inflatable bottom (keel)
☑ External length - 11'9"
☑ External width - 6'
☑ Cylinder diameter - 18.9"
☑ Number of sealed compartments - 3+1
☑ Passenger capacity, people: 4
☑ Maximum motor powe: 20hp / 14.9kw
☑ Boat balloon material density, g/m2: 1100
☑ Boat bottom material density, g/m2: 1100 Valmex 7318 Rough Surface
☑ Transom height, mm: 410 (including the bottom)
☑ Transom thickness - 0.94"
☑ Handles for transportation, pcs: 2 on trailers
☑ Length of oars - 70.86"
☑ Type of oarlocks: rotary, pin type
☑ The weight of the boat in the kit - the weight of the boat is 90.38 lbs, the weight of the components is 19.84 lbs.
☑ Warranty for welds, months: 60
☑ PVC material warranty, months: 36
☑ Country, manufacturer: Ukraine, Group Navigator

Color Available

☑ Light Grey
☑ Dark Grey
☑ Orange and Grey
☑ Orange and White

Standard equipment of the boat Navigator Wind 360

☑ Welded design of cylinders with three independent pressurized compartments. The internal partitions of the cylinders are reinforced with reinforced PVC.
☑ To protect the inflatable keel and cylinders from external damage, a protective bar is used. The 6th lane is installed along the entire length of the keel, the 12th lane is installed along the cylinders (1 meter long closer to the transom).
☑ To release excess pressure in the bottom, a bleed valve with a pressure of 0.3 bar is installed.
☑ A 9 cm wide fender is installed along the perimeter, which is used to protect the sides of the boat.
☑  Handrails are glued along the outer perimeter for the safety of passengers.

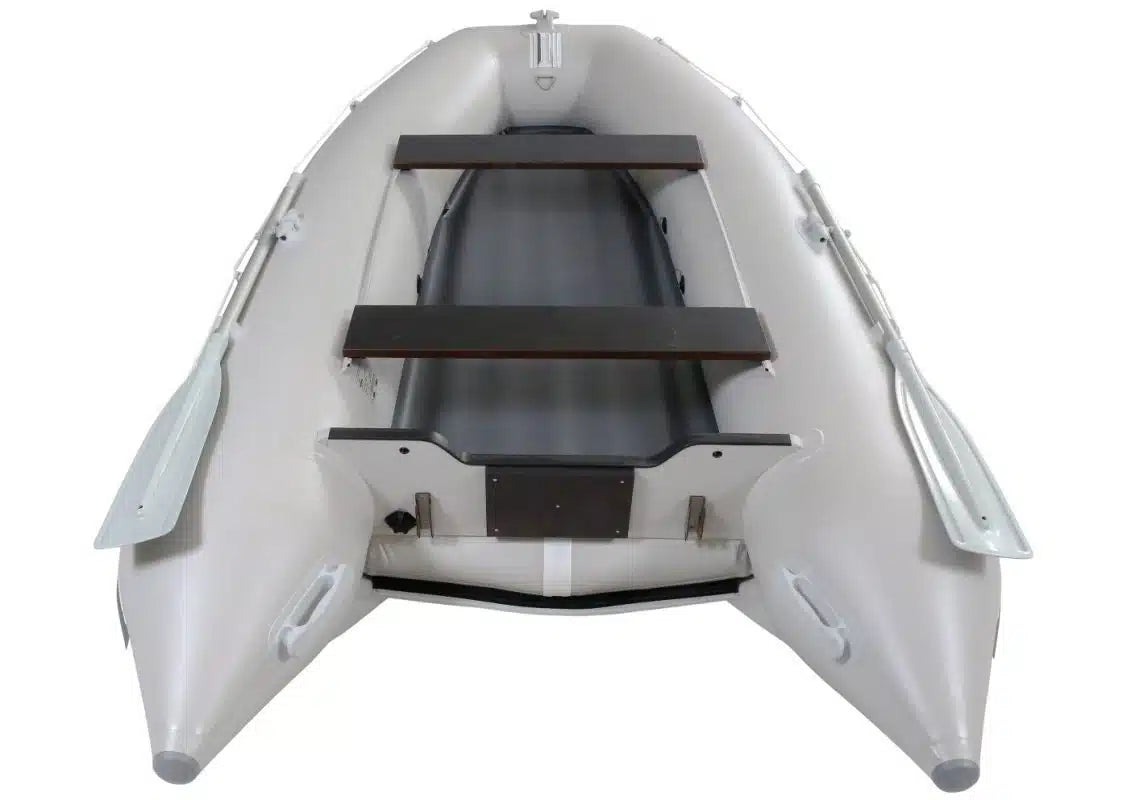

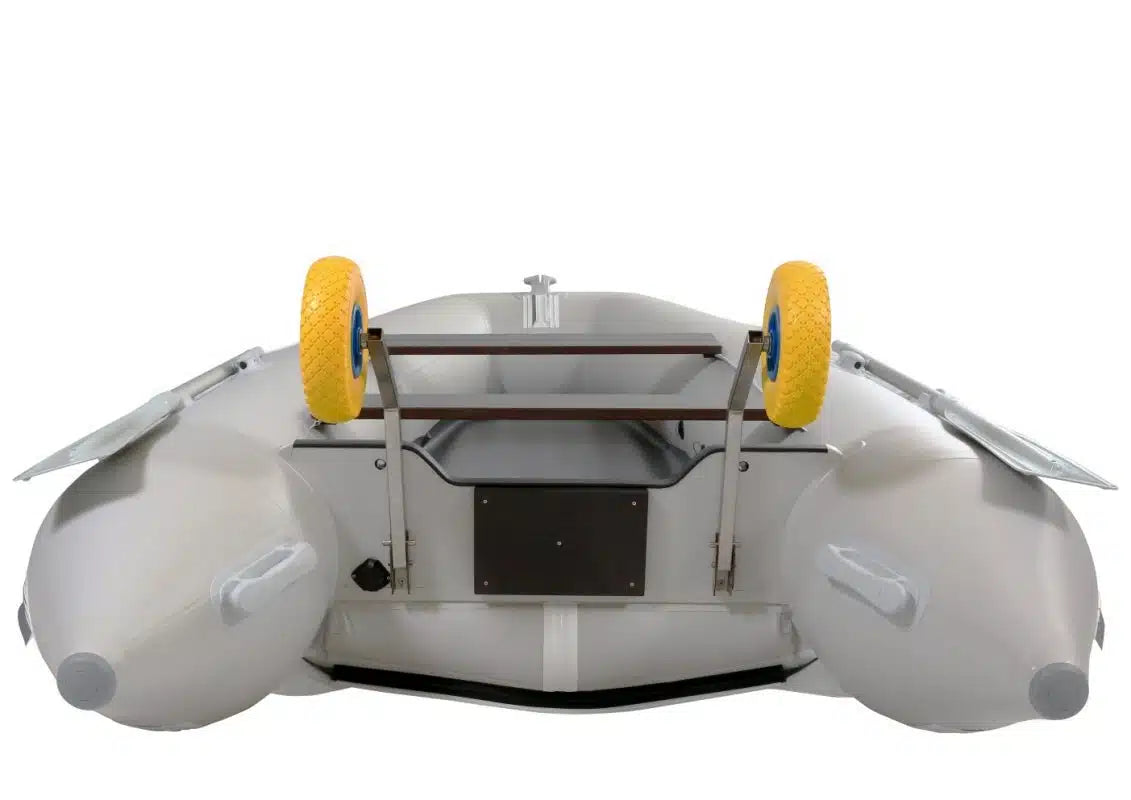

☑ Reinforced stationary transom made of waterproof plywood 24 mm thick. glued into the aft part of the cylinders. From the inside and outside, the transom is protected by pads made of moisture-resistant plywood. A drain valve is installed at the bottom of the transom.
☑ Reinforced transom spoiler protects the bottom of the transom from damage in shallow water.
☑  For attaching the anchor cable, an eye ring is installed in the bow of the boat.
☑  For transportation of the boat, 2 handles are used, located on the ends of the cylinders.
☑ The lyktros / lykpaz mounting method allows you to install cans along the entire length of the boat. For the convenience of passengers, the seat mounts were raised as much as possible.
☑ Two movable seats with a width of 23 cm are easily adjustable along the entire length of the rails.
☑  Foot pump for 6 liters.
☑ PVC boat repair kit.
☑  Operation manual.
☑ Small craft certificate.
☑ Packing bag for boat – 1 pc, for deck – 1 pc.

Navigator Inflatable Boats Warranty

User Manual

How to Assemble Inflatable Boats?

Frequently Asked Questions

☑ What is an inflatable boat used for?
Consider inflatables for versatile recreational boating activities like fishing, duck hunting, camping, surfing, or sightseeing. However, be mindful of your needs and avoid rough waters with smaller models. Some heavy-duty inflatable rafts are also used by law enforcement and military personnel.
☑ Do I have to register my inflatable boat?
If you installed an outboard motor of 10HP or more, you may need to register your new vessel. Navigator Inflatable Boats have a unique HIN registered with Transport Canada, which is recognized in the US under a bilateral agreement.
☑ Do I need a boating license for an inflatable boat?
To operate an inflatable boat with a motor, you need a pleasure craft operator license. For fishing, you may also need extra licenses and permits, depending on your location. Check the List of Accredited Service Providers for more information.
☑ How do you repair or patch up holes in my inflatable boat?
The Standard Navigator roll-up boat comes with a patch kit. A small repair kit will consist of a valve unscrew tool, glue and PVC patches. For complex boat repairs, talk to a professional technician. For additional boat guides, check the “Repairs” section of the Navigator Inflatable Boats User Manual.
☑ How many people does my inflatable boat fit?
It’s all about the right boat size, how much weight it can handle, and some design features. Typical inflatable boats can seat a maximum weight of 2 to 6 people. Here are some currently available options:
*2 Passenger inflatable boat
Navigator’s LG-series
*2 – 3 Person Inflatable Boat
Navigator LP-series
*4 Person Inflatable Boat / 6 Person Inflatable Boat
Navigator LK-series
☑ What inflatable boat should I choose for different types of waters?
Choose a smaller, maneuverable boat for lakes and flat water rivers, and a larger vessel with a powerful engine and keel for open ocean. Consider comfort with ample space and seating for longer trips.
☑ Which parts should I be outfitting my boat with?
Attach a boat engine for faster transportation, add an extra hull for added safety and more seating, use a boat ladder for water activities like swimming, diving, or water skiing, and get seats for comfort. For fishermen, invest in fishing rod holders.
