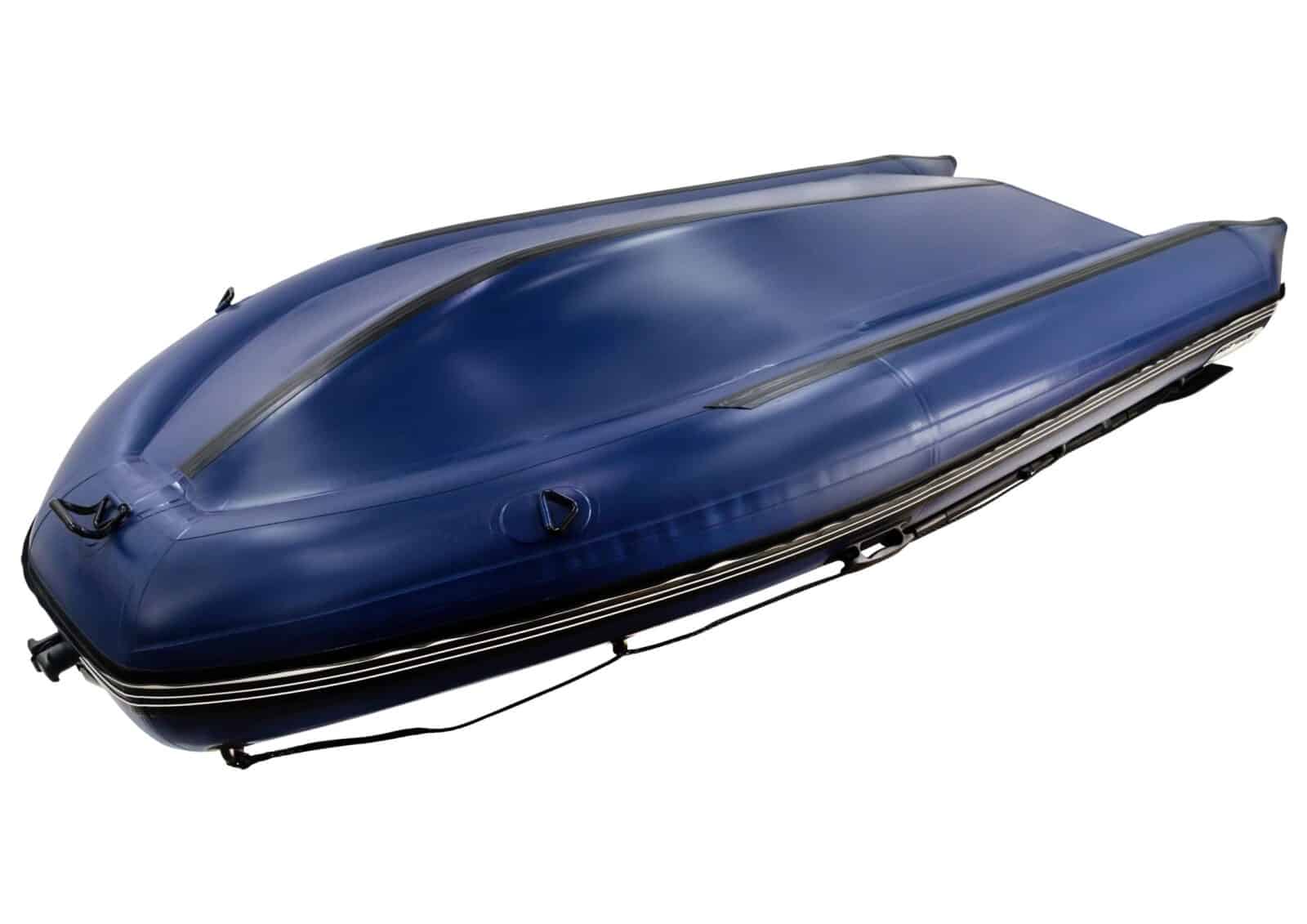

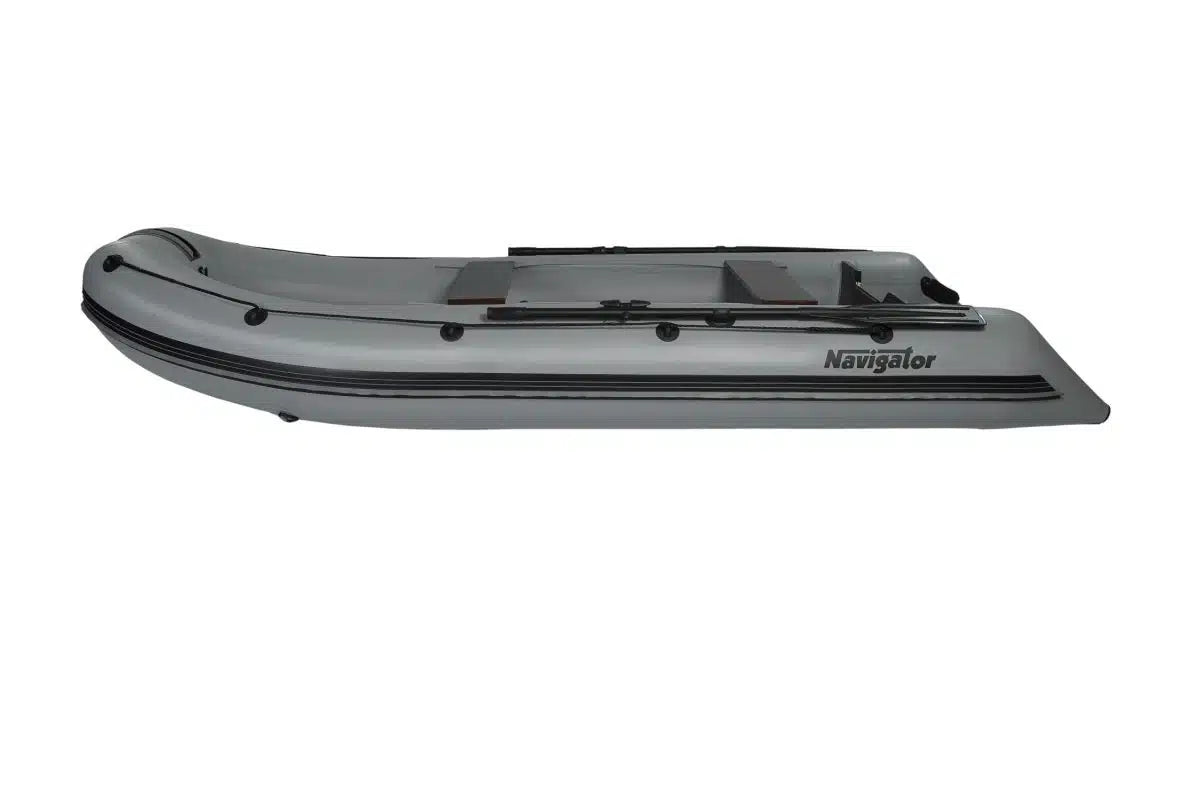

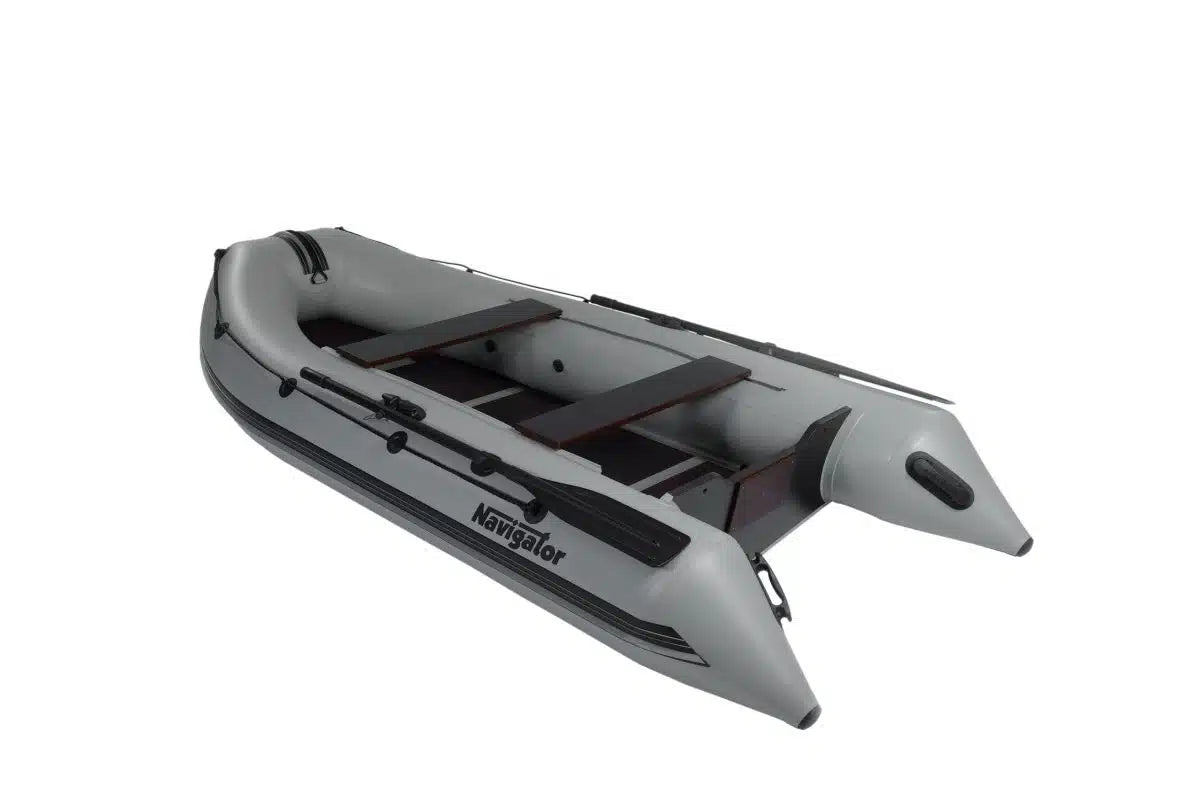

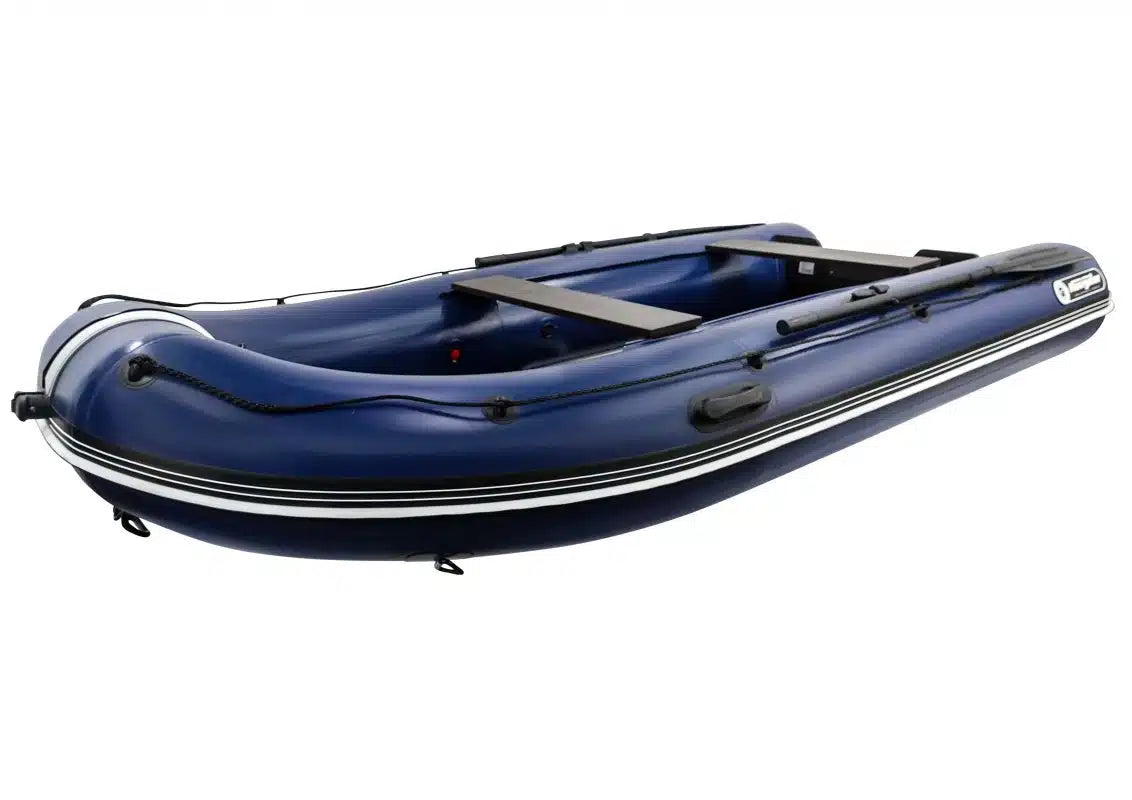

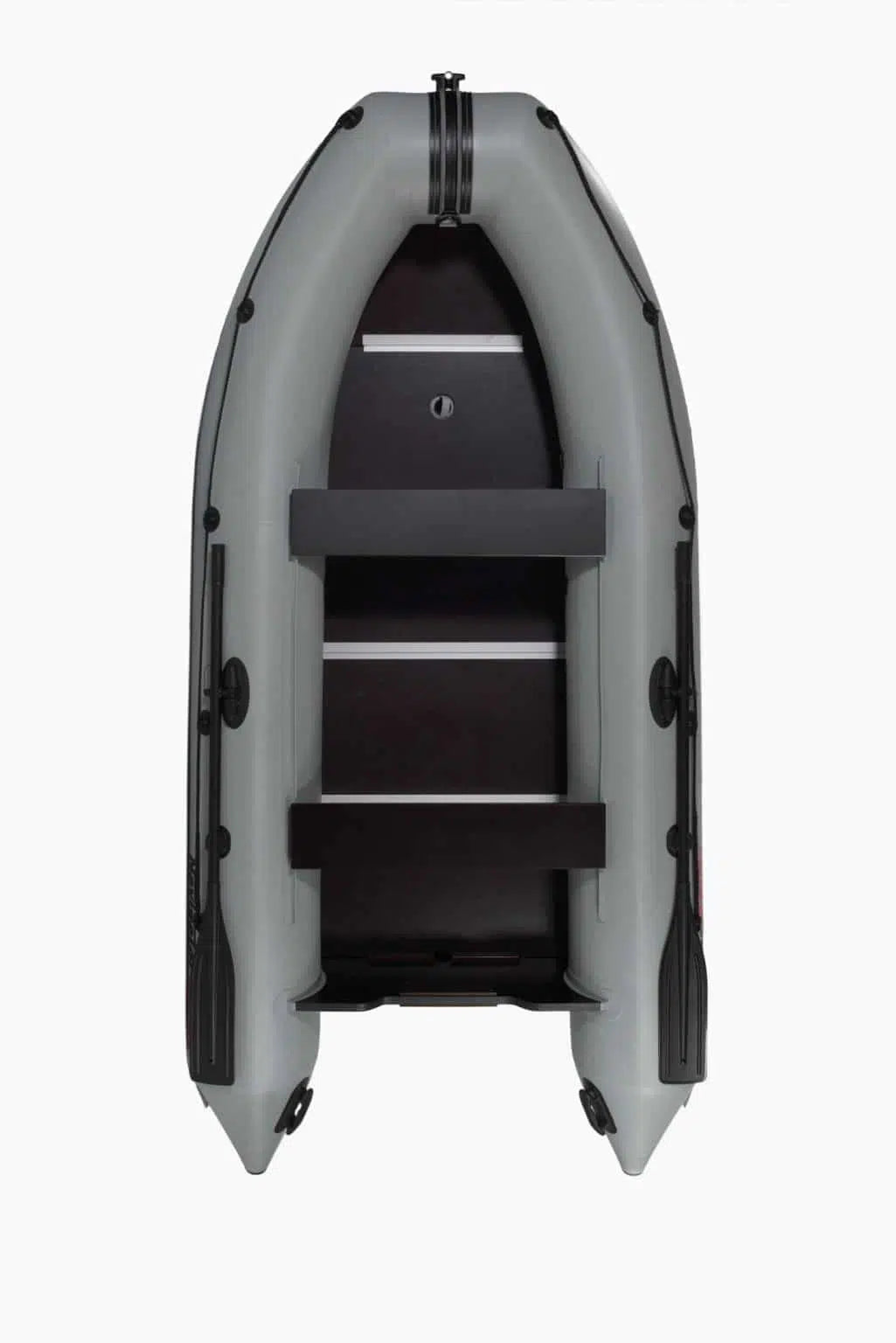

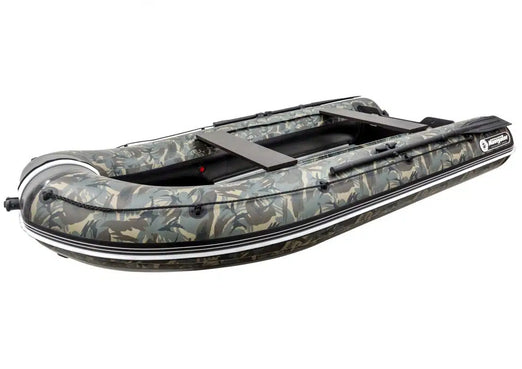

Navigator LK330 Inflatable Boat 10'9"

Inflate, launch, and enjoy hours of aquatic fun with the Navigator LK330 Inflatable Boat.

Designed to withstand various conditions, this tender  offers excellent buoyancy and balance.

The Navigator was designed for use on large rivers and lakes with a unique feature: a variable diameter of U-shaped cylinders, decreasing from the stern to the boat’s bow. Navigator inflatable boats can be put in “planing mode” even with small engines because their bows are raised (“chiselled”) and their hull is constructed of smooth curves rather than sharp angles. This makes them less likely to get stuck under rocks or smash into waves head-on.

Navigator  models are optimized for the BEST performance, just like most recent mobile devices designed to achieve an optimal output. Your choice of marine-grade plywood floors, covered with additional waterproof varnish layers or aluminum floors. This means you can take more weight on board, and it is easier to install the boat and transport it!

The “LK” series of keel boats with a book floor type are represented by the LK 300 model with a 3-person capacity and LK 320, LK 330 models, which can accommodate up to 4-persons. LK360 designed for 5 people and LK400 for 6 people, appropriately.

Boats are assembled from high-quality Valmex boat PVC from Mehler texnologies with a density 1000 g / m2, which ensures their long-term operation, without additional maintenance of the seams.
This 4-person Inflatable boat Navigator LK 330 models have been popular with fans of fishing and water recreation for more than 15 years for their high quality and reliability.
The design of the boats has a U-shaped cylinder with a glued-in transom made of waterproof plywood. The cylinders are divided into 3 pressurized compartments and an inflatable keelson. The patented shape of the boat, thanks to the full sheet cutting of the fabric, has 4 circular and 2 longitudinal welds, which ensures high tightness of the cylinders.

Features

☑ Original Designs of Cylinders
Boats built by Navigator are both beautiful and reliable.

☑ Heat Welding Technology
Navigator Inflatable Boats seams are 100% fully heat welded.

☑ Modern Five Layered PVC
Navigator inflatable boats are made from materials that can withstand all conditions and provide you with years of enjoyment.

☑ Improvements in Hydrodynamic Contours
The Navigator boat’s hydrodynamic contours provide an unmatched experience in terms of ride quality.

☑ Floating on marine-grade, waterproof plywood
Navigator flooring system is uniquely designed for inflatable boats.

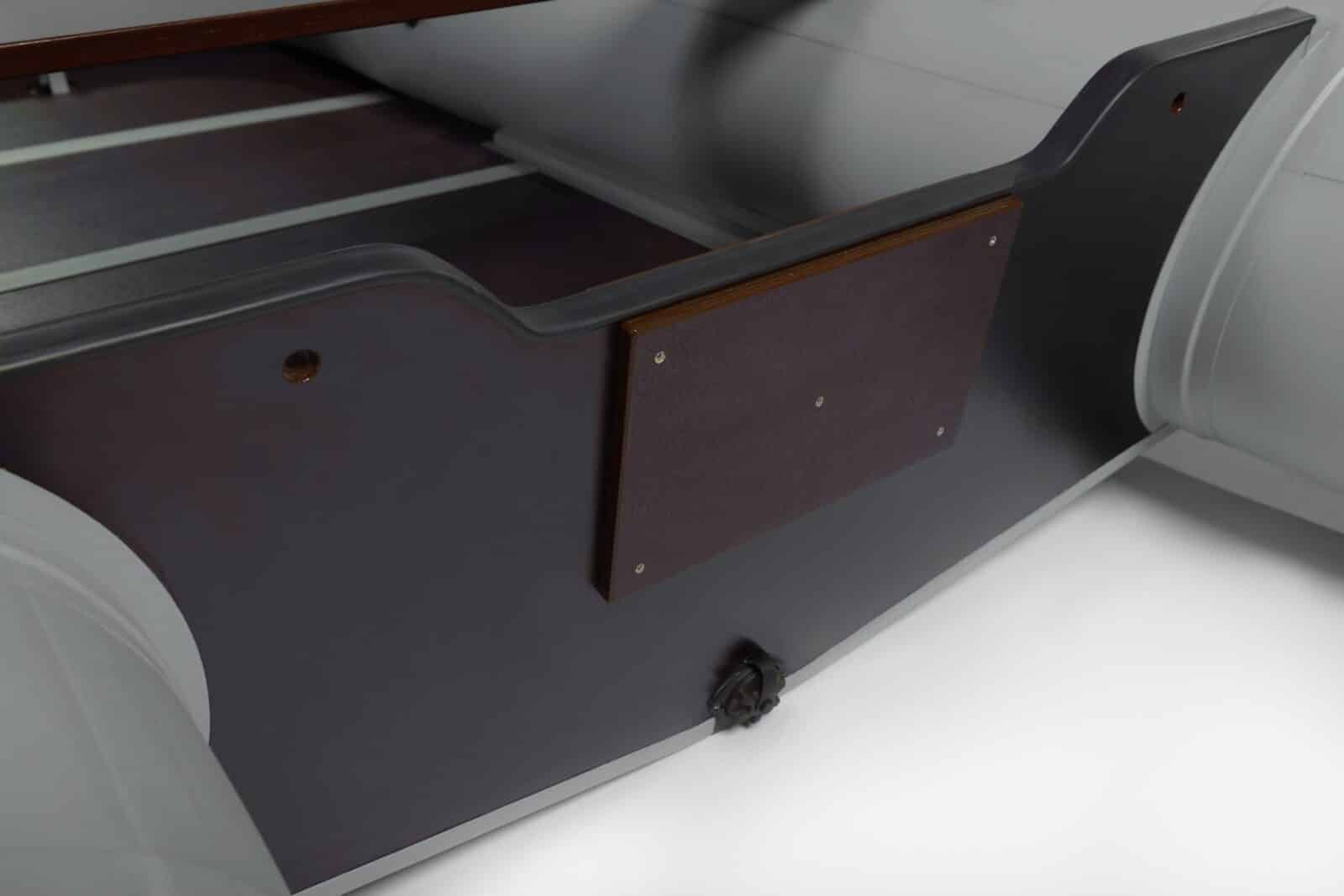

☑ Added Reinforcement to the Transom
Navigator reinforced transoms are made of durable, water-resistant plywood.

☑ Full Quality Control
At Navigator, we developed technologically advanced processes, designed and manufactured special equipment, studied materials for future Navigator boats.

☑ The latest joining technology – the method of heat welding.
☑ The original design of cylinders.
☑ The minimum number of connecting seams.
☑ Increased sealing and reliability of cylinders.
☑ Longitudinal and circumferential seams are made by heat welding.
☑ Keel V-shaped bottom allows to increase seaworthiness and reduce shock loads when passing through a wave.
☑ Improved ride quality thanks to hydrodynamic contours.

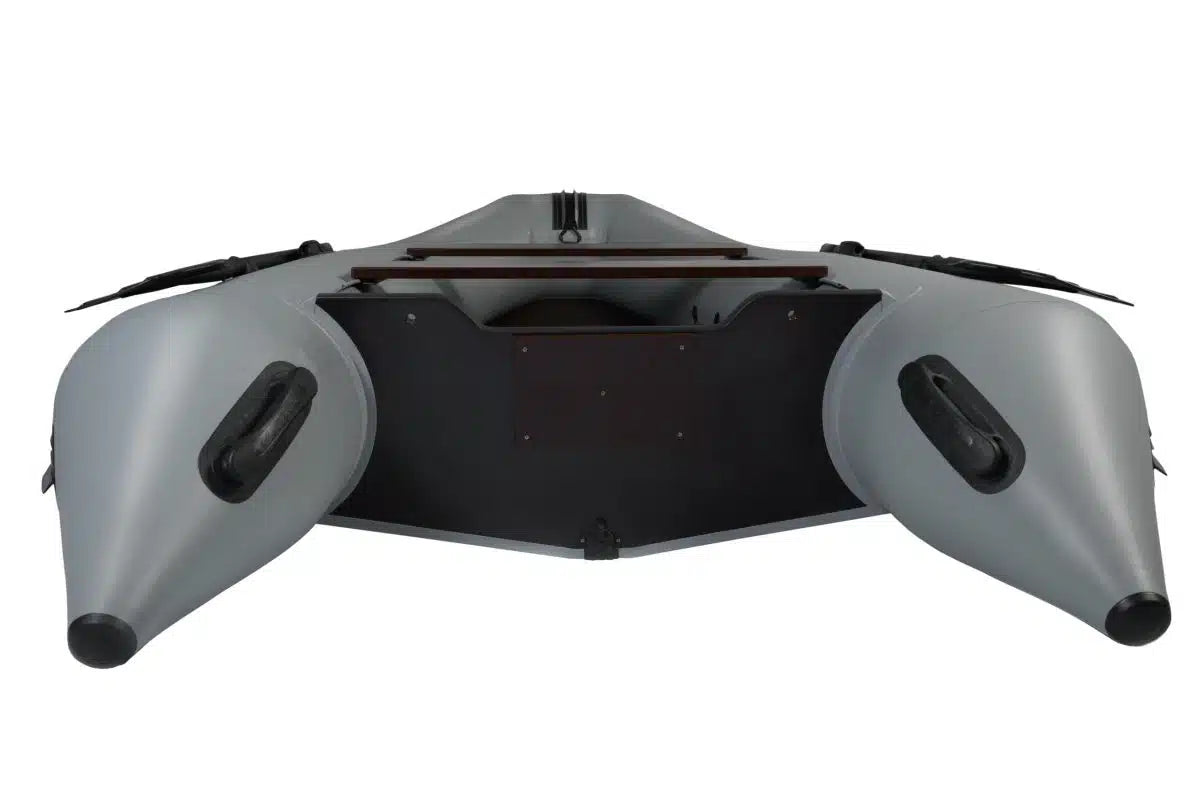

☑ Course stabilizers (fins) installed in the stern provide better directional stability.
☑ Entering the planing mode on motors with a capacity of 2.5 hp.
☑ High-quality body material – Boats are assembled from high-quality Valmex boat PVC from Mehler texnologies with a density of 1000 g / m2, which ensures their long-term operation, without additional maintenance of the seams.

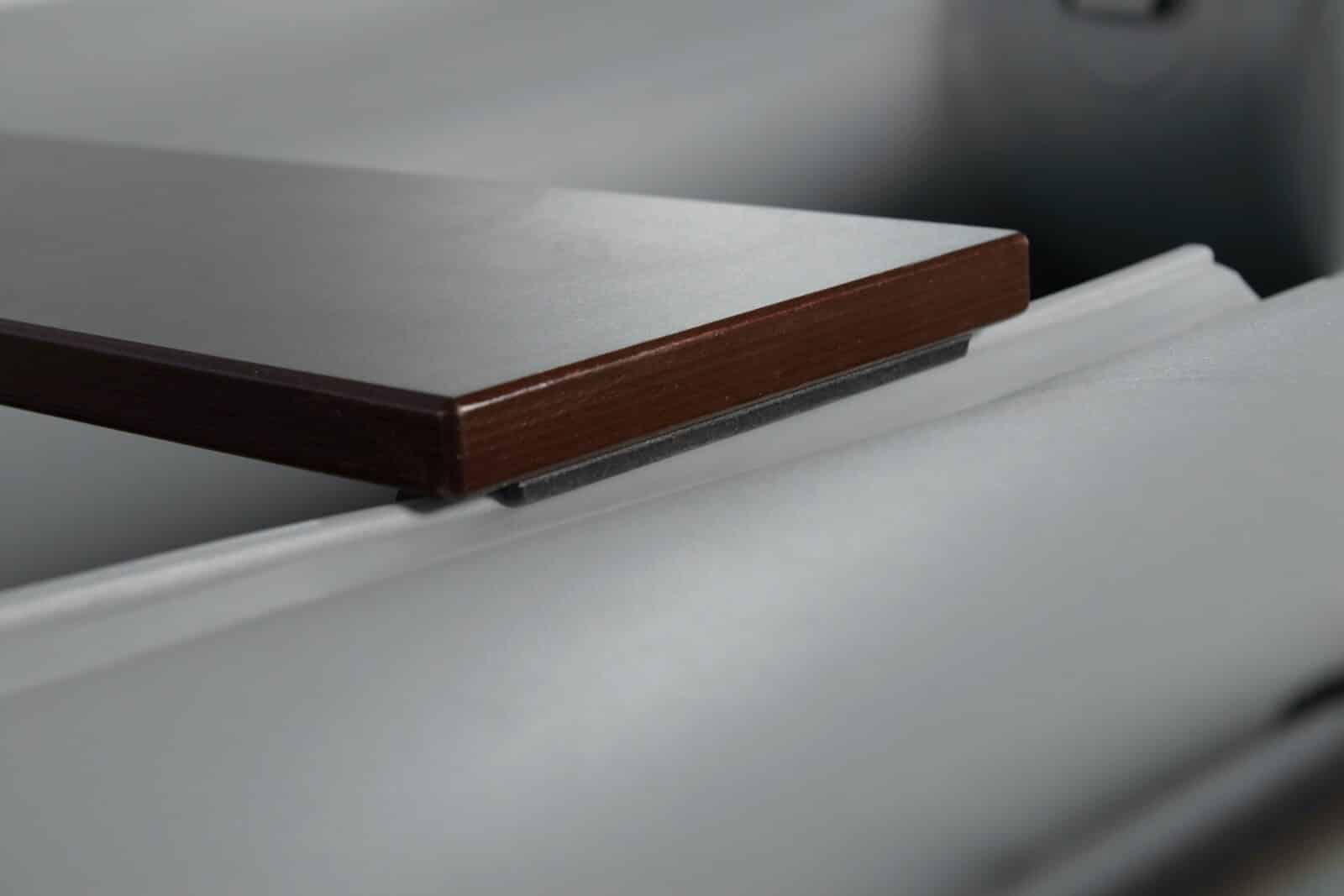

☑ A movable seat support system is used to comfortably accommodate passengers in the boat.
☑ The use of a book floorboard significantly speeds up the process of assembling and disassembling the boat.
☑ Team of professionals.
☑ 100% quality control at each technological stage.
☑ 5 years warranty.

Standard Navigator Inflatable Boats Construction Elements

Specifications

☑ Brand, model · Navigator LK330
☑ Boat type · Inflatable Roll-up with V-keel
☑ Body material · PVC (German Mehler Texnologies)
☑ Length overall - 10′9"
☑ Length inside (ft) · 7,61
☑ Width overall (ft) · 5,41
☑ Width inside (ft) · 2,56
☑ Tube diameter (ft) · 1,38
☑ Transom type · Stationary, Reinforced
☑ Transom height (in) 15″
☑ Overall weight - 132.28 lbs
☑ Floor type – Solid hard wood deck or aluminum deck
☑ Chamber diameter (ft) · 1,38
☑ No. of chambers · 4
☑ Max. persons · 4
☑ Max. engine (kw/hp) · 11.2 / 15

Color Available

☑ Light Grey
☑ Dark Grey
☑ Dark Grey & Black

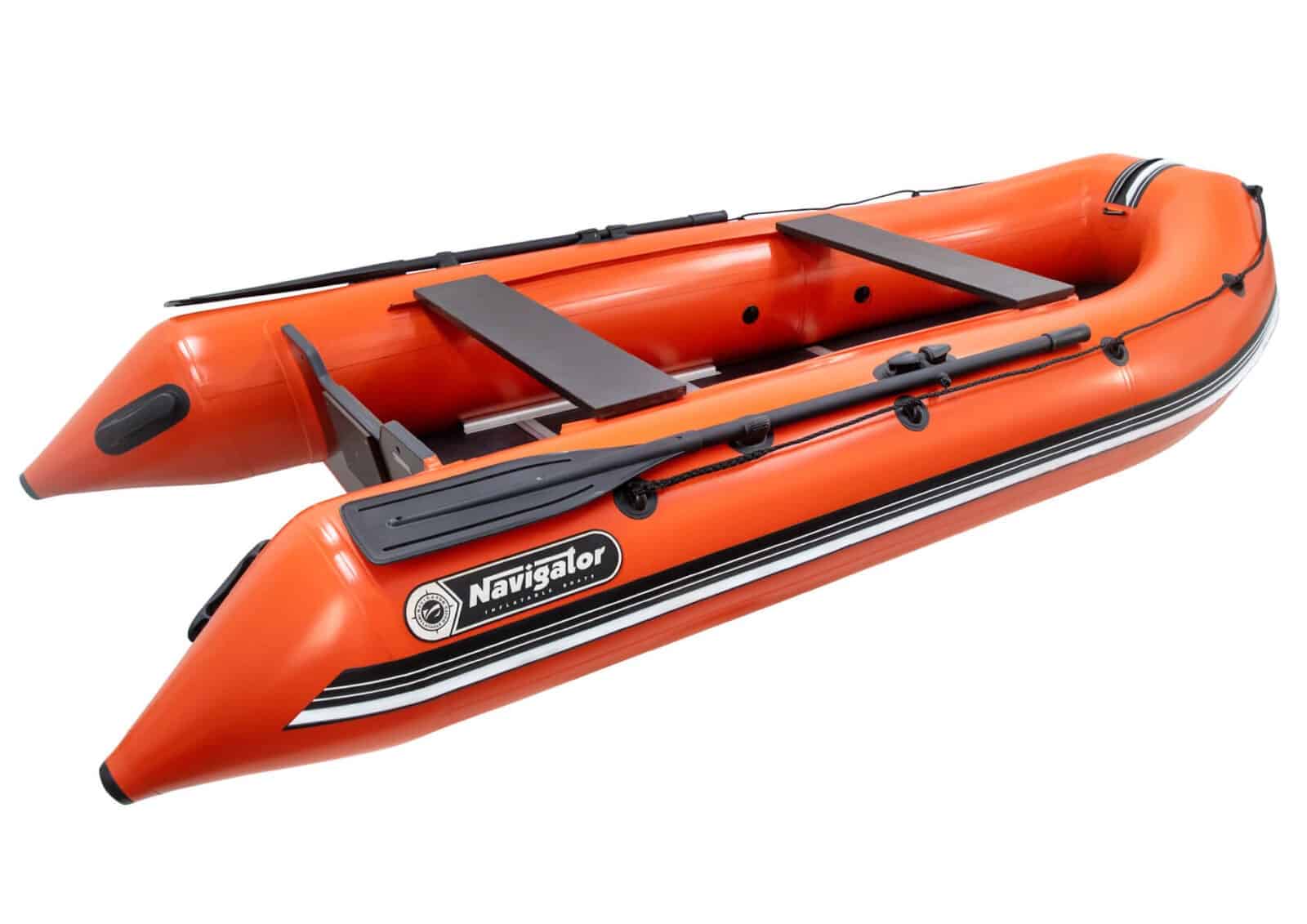

☑ Orange, Red

Standard kit Navigator Roll-up Boats

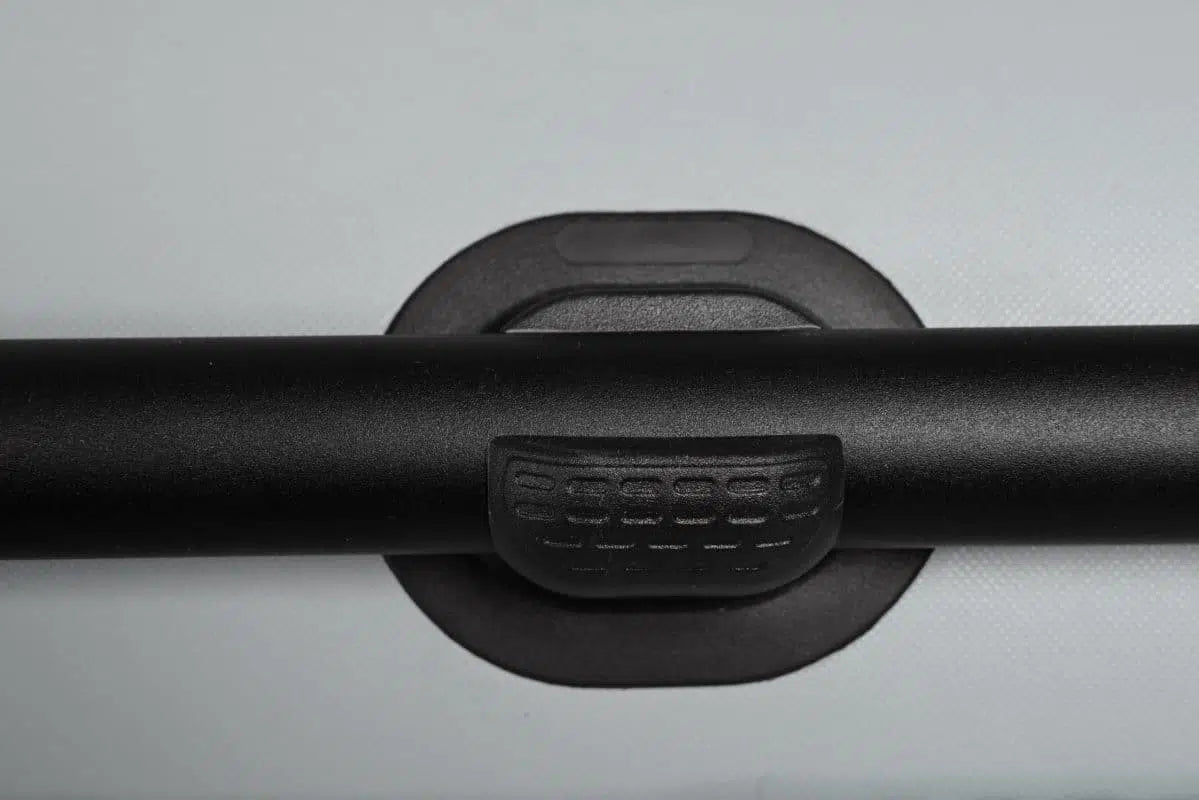

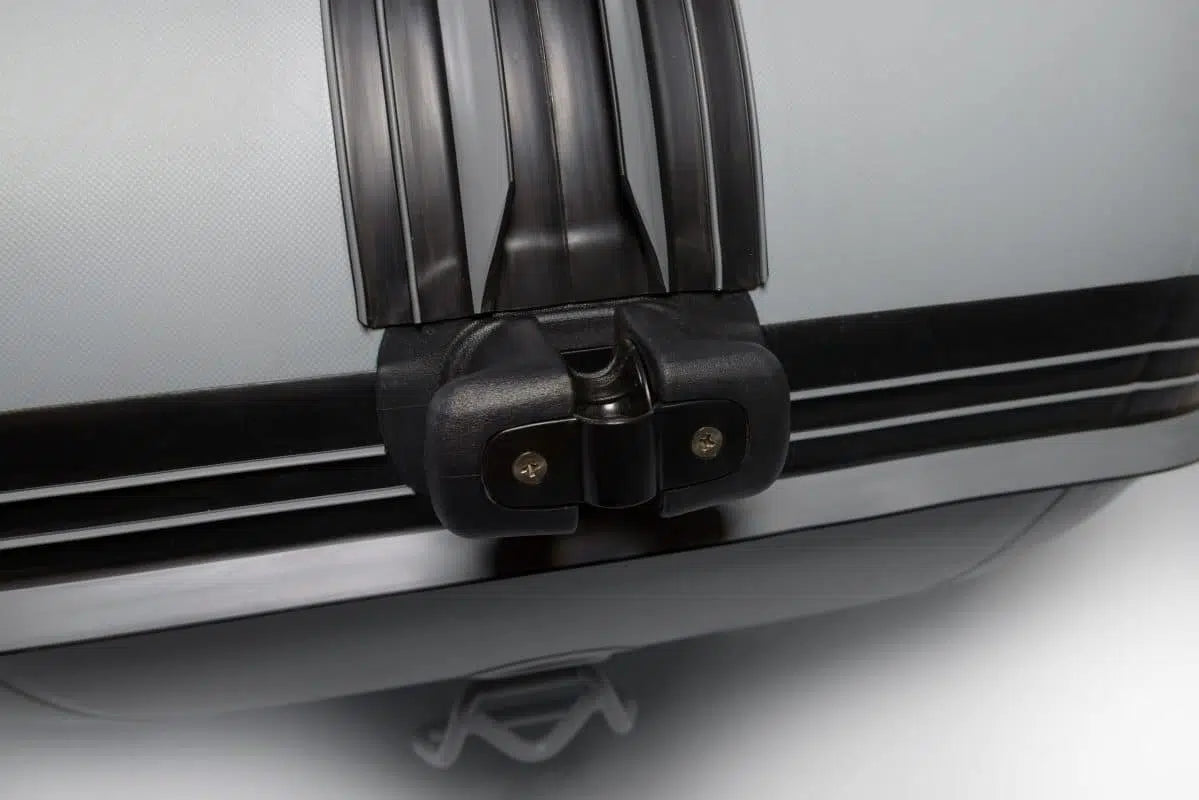

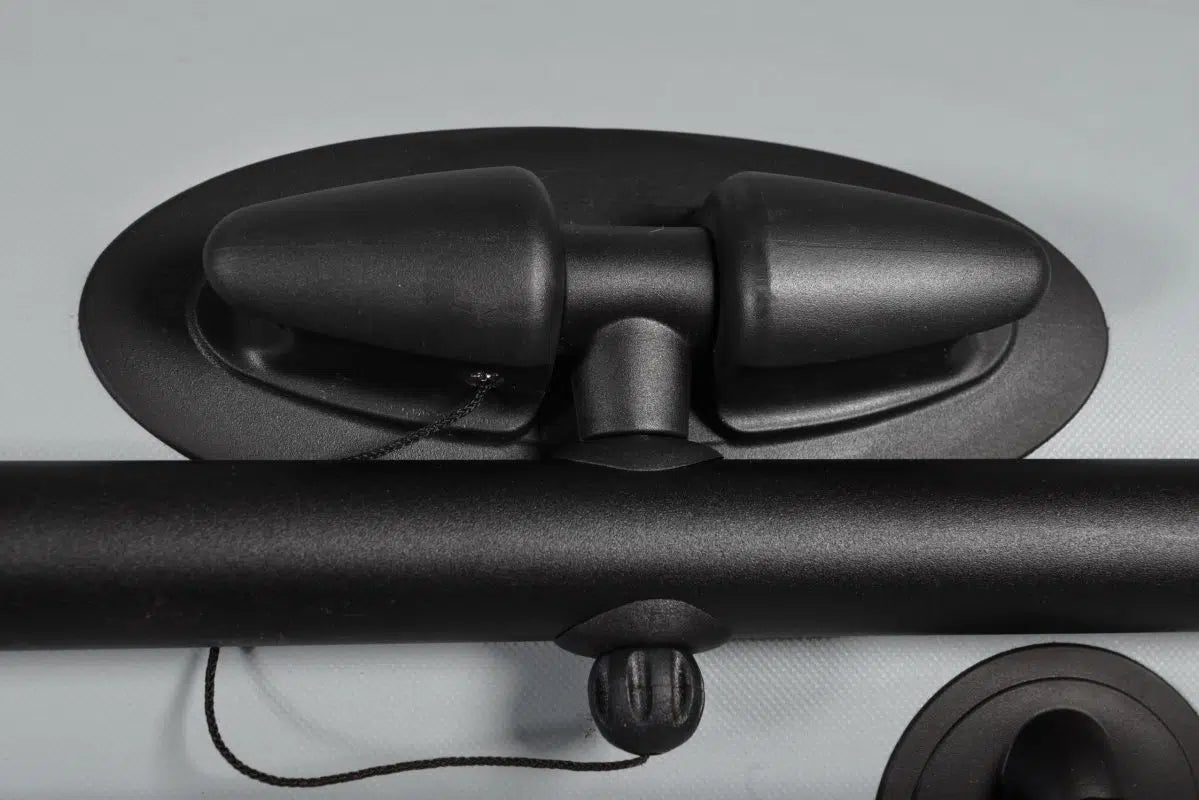

☑  2 Oars with oarlocks

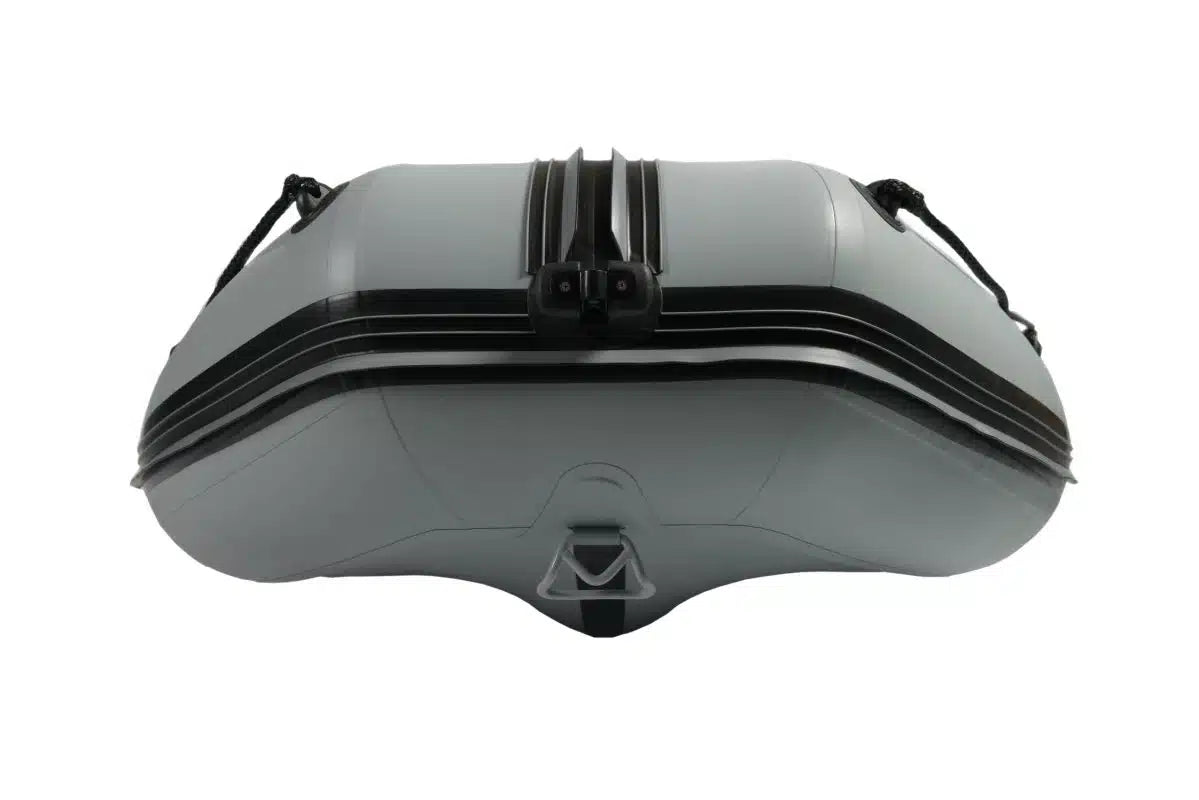

☑ Towing handle under the bow
☑ 2 Movable Seats
☑ Anchor mount D-ring with a rubber bow protector for the rope

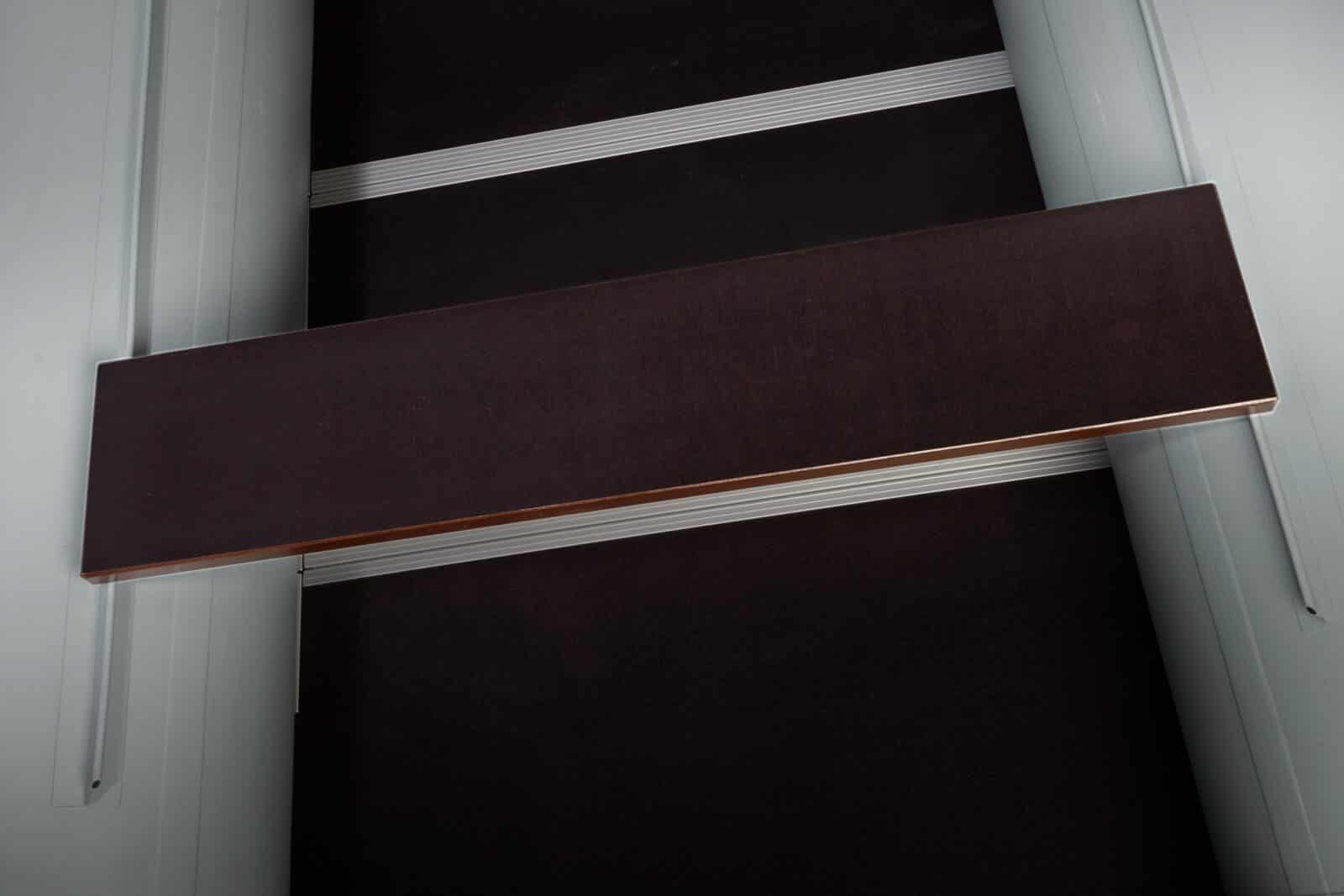

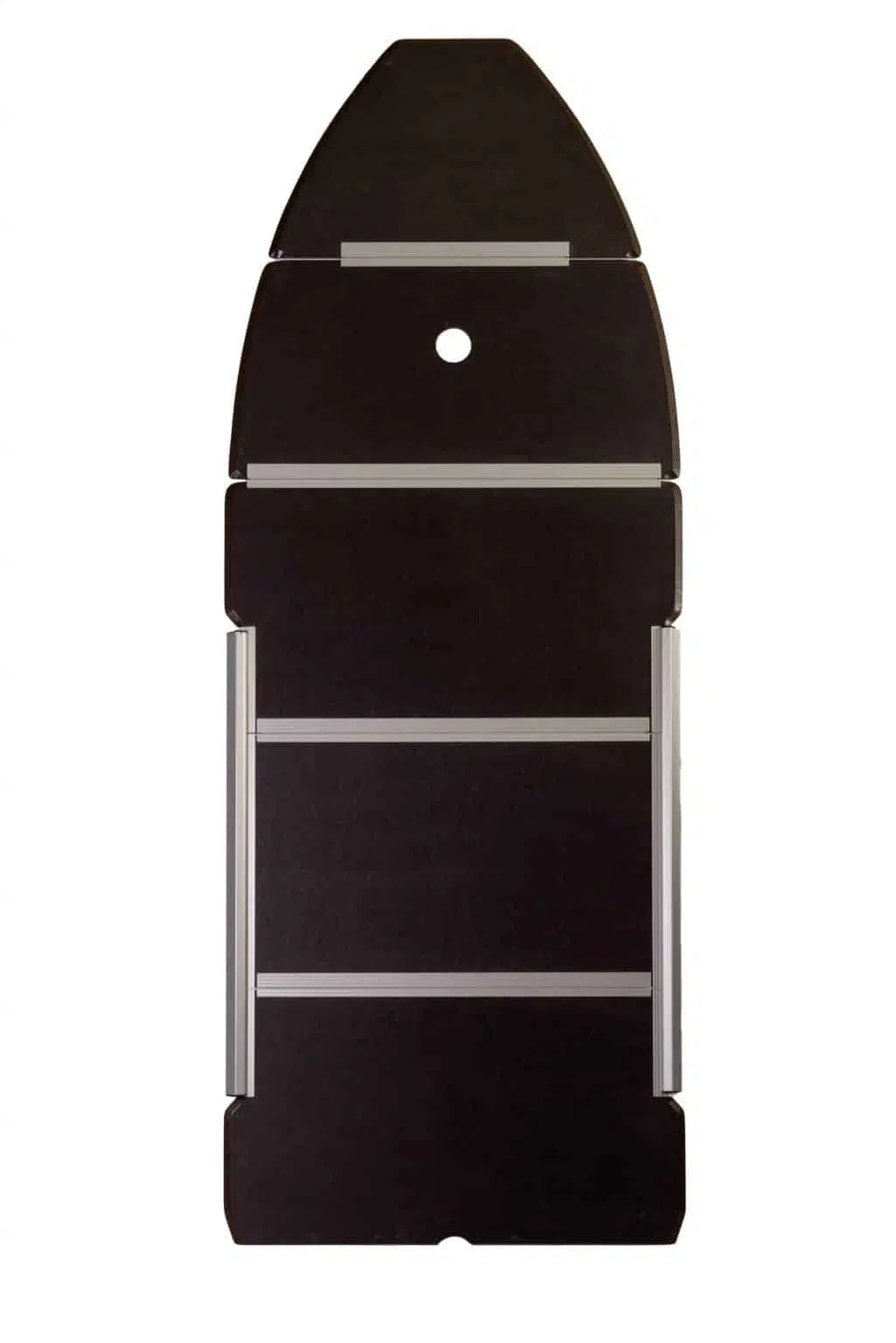

☑ Book-type wooden floor. Floorboards are connected with PVC strips, easy to install &
store (alternative floors: slatted, hard deck wood or aluminum, inflatable floor).
☑ Small repair kit (Patch, glue, valve unscrew tool)
☑ Efficient Foot pump
☑ 2 Bags to carry the boat & the floor

Navigator Inflatable Boats Warranty

User Manual

How to Assemble Inflatable Boats?

Frequently Asked Questions

☑ What is an inflatable boat used for?
Consider inflatables for versatile recreational boating activities like fishing, duck hunting, camping, surfing, or sightseeing. However, be mindful of your needs and avoid rough waters with smaller models. Some heavy-duty inflatable rafts are also used by law enforcement and military personnel.
☑ Do I have to register my inflatable boat?
If you installed an outboard motor of 10HP or more, you may need to register your new vessel. Navigator Inflatable Boats have a unique HIN registered with Transport Canada, which is recognized in the US under a bilateral agreement.
☑ Do I need a boating license for an inflatable boat?
To operate an inflatable boat with a motor, you need a pleasure craft operator license. For fishing, you may also need extra licenses and permits, depending on your location. Check the List of Accredited Service Providers for more information.
☑ How do you repair or patch up holes in my inflatable boat?
The Standard Navigator roll-up boat comes with a patch kit. A small repair kit will consist of a valve unscrew tool, glue and PVC patches. For complex boat repairs, talk to a professional technician. For additional boat guides, check the “Repairs” section of the Navigator Inflatable Boats User Manual.
☑ How many people does my inflatable boat fit?
It’s all about the right boat size, how much weight it can handle, and some design features. Typical inflatable boats can seat a maximum weight of 2 to 6 people. Here are some currently available options:
*2 Passenger inflatable boat
Navigator’s LG-series
*2 – 3 Person Inflatable Boat
Navigator LP-series
*4 Person Inflatable Boat / 6 Person Inflatable Boat
Navigator LK-series
☑ What inflatable boat should I choose for different types of waters?
Choose a smaller, maneuverable boat for lakes and flat water rivers, and a larger vessel with a powerful engine and keel for open ocean. Consider comfort with ample space and seating for longer trips.
☑ Which parts should I be outfitting my boat with?
Attach a boat engine for faster transportation, add an extra hull for added safety and more seating, use a boat ladder for water activities like swimming, diving, or water skiing, and get seats for comfort. For fishermen, invest in fishing rod holders.
