Availability:
Estimated Arrival: Between Nov 25 and Dec 02. *ETA to the USA Only

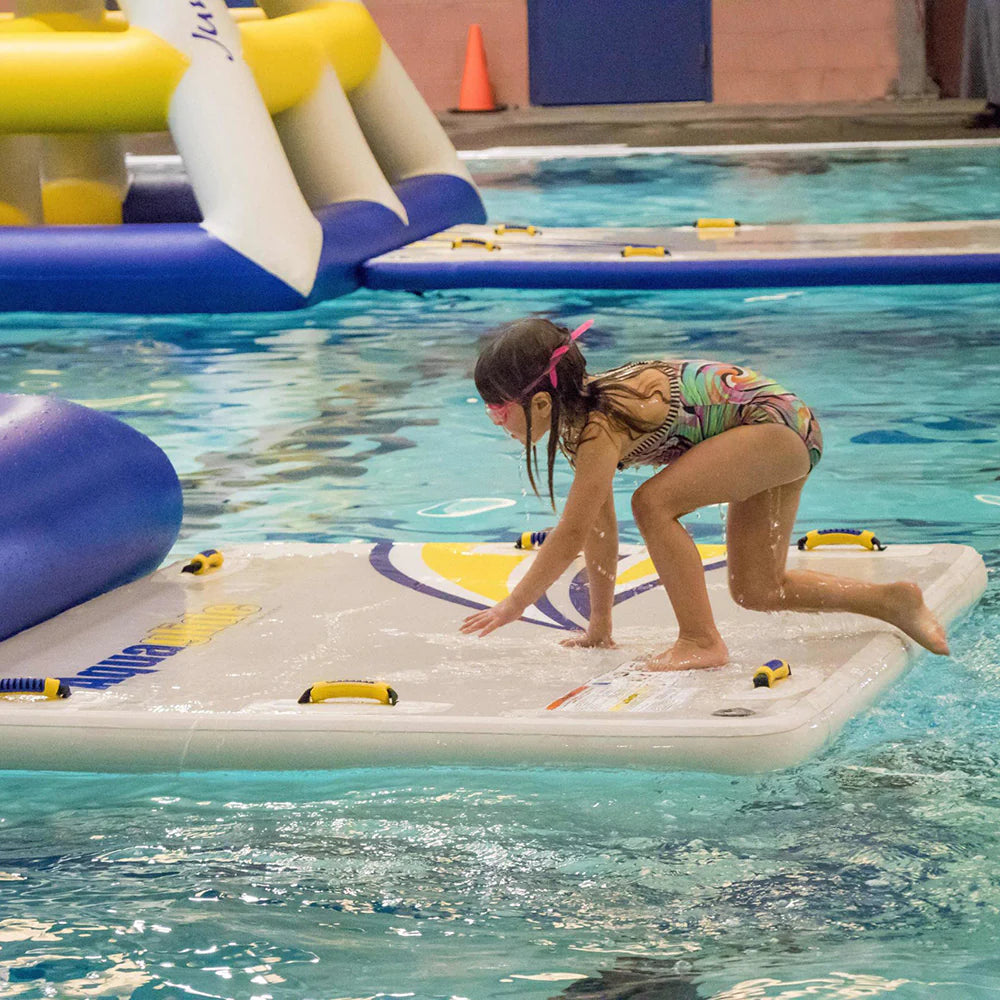

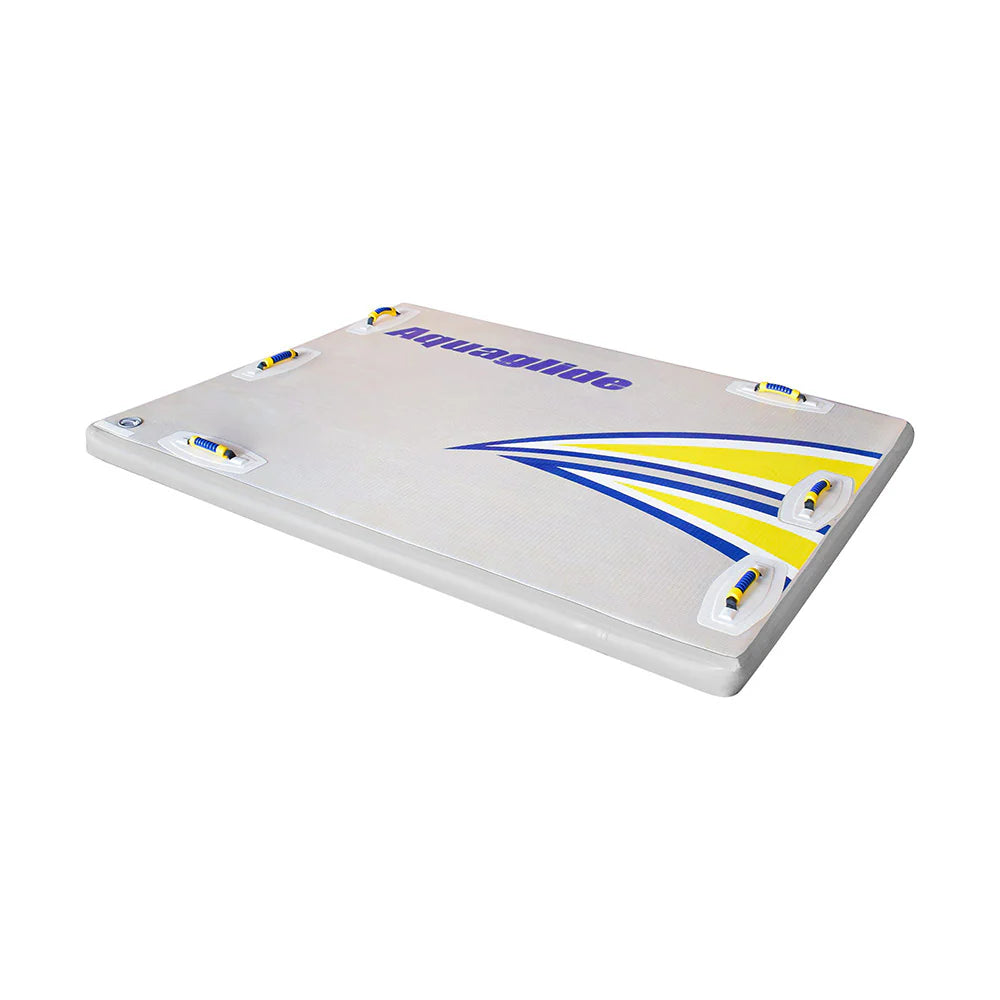

The Swimstep XL is an ergonomic platform that provides improved access over traditional boarding ladders due to its low-profile design. Designed for high traffic parks and produced with class-leading 10 cm Double-layer drop-stitch construction, the Swimstep XL is designed for exceptional durability and connected to any Aquapark using the 5 D-Ring Interloc System!
See All Yacht & Lake Pools Here
See All Yacht, Lake & Resort Toys Here
For Questions & Customization Call Andi: "Tel: 706.619.6670" andi@lightasairboats.com
The Swimstep XL is approximately a foot and a half wider than the Swimstep 5×5.
KEY TECH FEATURES
📌BEST FOR - Access to or transferring to features
📌CAPACITY - 2 Adults / 3 Children
📌WARRANTY - 3-year limited against any manufacturing defects
📌DIMENSIONS - L 5′ x W 6.5′ x H .3′ (L 1,52 m x W 1,98 m x H ,1 m)
📌BOX DIMENSIONS - L 5.6′ x W .82′ x H .82′ (L 1,70 m x W ,25 m x H ,25 m)
📌MIN WATER DEPTH - 4’ (1.21 m)
INCLUDES
📌Swimstep XL
📌Vario-Lock™ straps (10)
📌Repair kit
KEY USER ACTIVITIES
📌Boarding – Provides easy boarding access from the water thanks to low-profile drop-stitch construction.
KEY TECH FEATURES
📌Welded Drop-stitch – 10cm welded drop-stitch construction with 3-layer seams.
📌Double-Layer – Fused double-layer drop-stitch construction for commercial-grade longevity.
📌Interlock 5 – 4 sets of secure, tamper-free 5-ring connections using our 2-Step Vario Strap system.
📌Halkey-Roberts valve – With tamper-proof cap for quick, effective inflation/ deflation.
TECHNICAL SPECIFICATIONS
📌Max Weight – 400 lb. (181 kg) max weight.
📌Material – 10 cm welded double-layer fused drop-stitch.
📌Minimum Distance from Shore – 10’ (3.0 m)
📌Number of Accessory Attachment D-rings – 5 each on 4 sides.
📌Minimum Required Anchor Weight (Optional) – 550 lb. (250 kg)
Anchor Points – 2
PRODUCT NOTES
📌Weight recommendations are for anchoring in conditions with extreme weather, waves, or other abnormal conditions. Aquaglide recommends contacting a dock and mooring specialist for anchor installation options and assistance.
📌The safety of our customers and their guests is our highest priority. Careful thought goes into the design of our aquapark components, connection points and configurations to assure maximum safety and enjoyment. Consequently, Aquaglide Lakefront and Aquapark products are not authorized for use in combination with products or attachments from any other manufacturer. Aquaglide product combinations must be authorized or approved in advance by the manufacturer. Use of Aquaglide products in combination with products from any other manufacturer and/or product arrangements not previously approved by Aquaglide may result in increased risk of entrapment, injury, or death.
